ABL77 Service Manual Chapter 3: Troubleshooting
Hardware Screen, Continued
Description of
Hardware
screen
(continued)

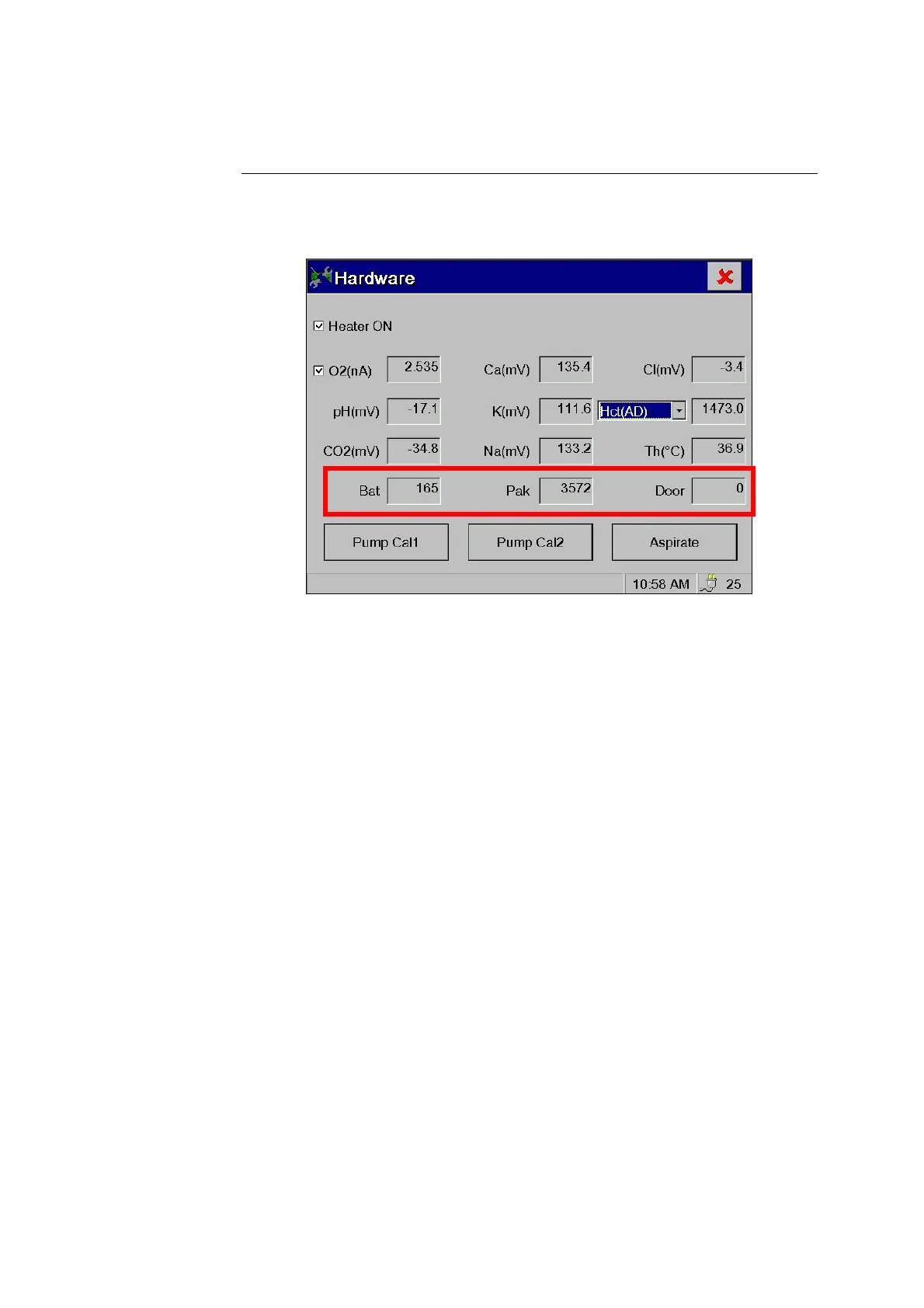

• A relative charge reading for the battery pack is displayed (Bat) as well as the
function of the battery charger (Pak) (see Figure 3-4). An inlet flap sensor
indicator is also displayed (Door).
Figure 3-4
3-7
