Rexroth Indramat ECODRIVE03 Series User Manual

ECODRIVE03 Drive Controllers ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 4-113
Ap5076f1.fh7
2
1
2
A B
A B
A B
A B
Siemens
Siemens
1
on
o
Switch connection for the rst and nal slave in the Probus-DP
The cable shield must be placed bare on the metal guide

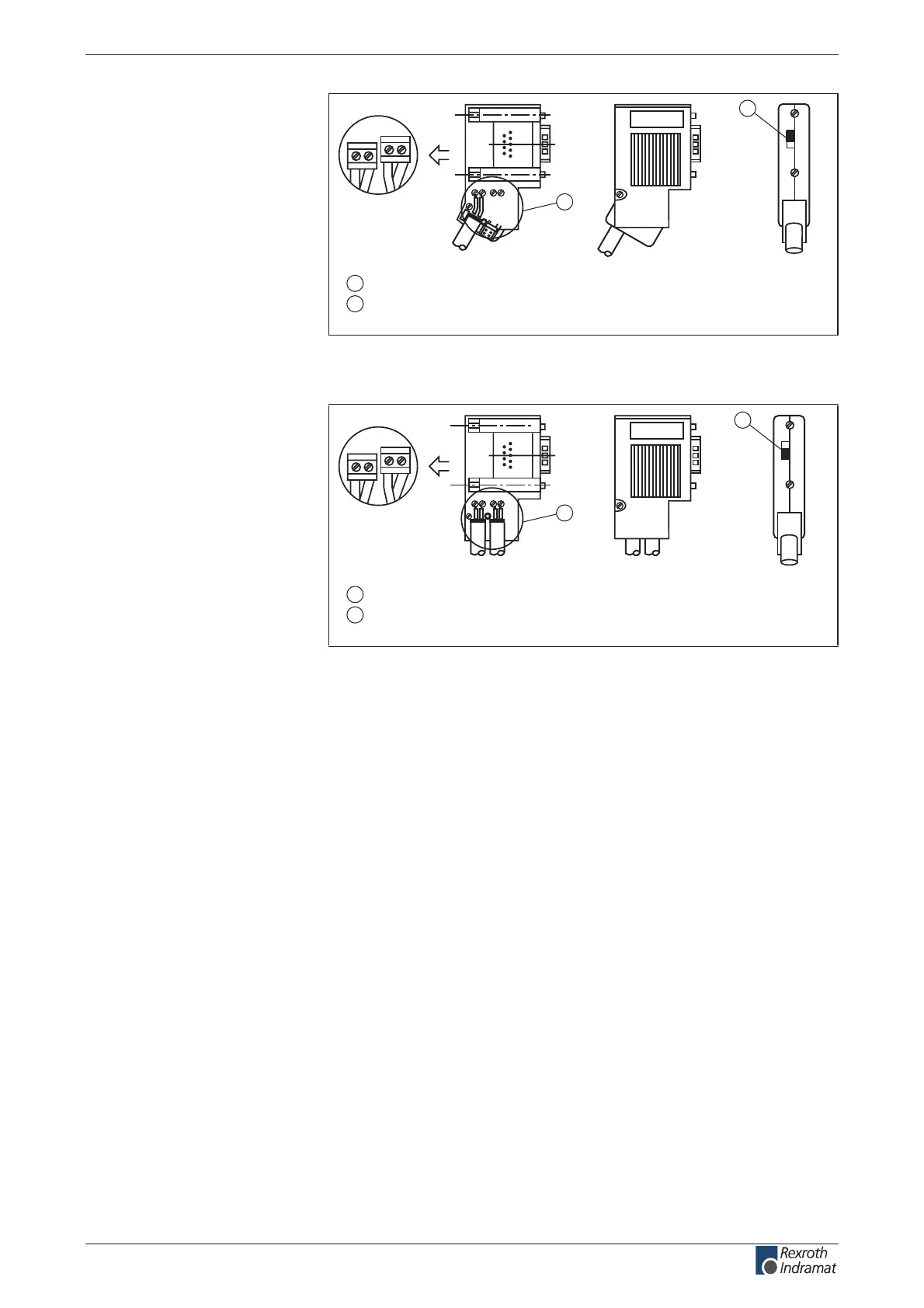

Fig. 4-191: Fig. 4-23: Bus link for the rst and last slave without 9-pin D-SUB
socket, INS 0540
Siemens Siemens
Ap5077f1.fh7
1
2
1
2
A B
A B
A B
A B
Siemens
on
o
Siemens
Terminating resistor is o
The cable shield must be placed bare on the metal guide
Fig. 4-192: Bus link for all other slaves without 9-pin D-SUB socket, INS 0540
Connect the DKC03.3 to a control unit using a shielded two-wire
conductor in accordance with DIN 19245/ section 1.
