4-112 ECODRIVE03 DKC**.040, DKC**.100, DKC**.200 ECODRIVE03 Drive Controllers
To prepare a bus cable, proceed as follows:
• Use cable DIN EN50170 / 2 edition 1996
• Strip cable (see previous illustration)
• Insert both cores into screw terminal block
Note: Do not switch A and B.
• Press cable sheath between both clamps
• Screw both strands into screw terminals
Ap5074f1.fh7
1
2
1
2
A B
A B
A B
A B
Siemens
on
o
Siemens
Switch connection for the rst and nal slave in the Probus-DP
The cable shield must be placed bare on the metal guide

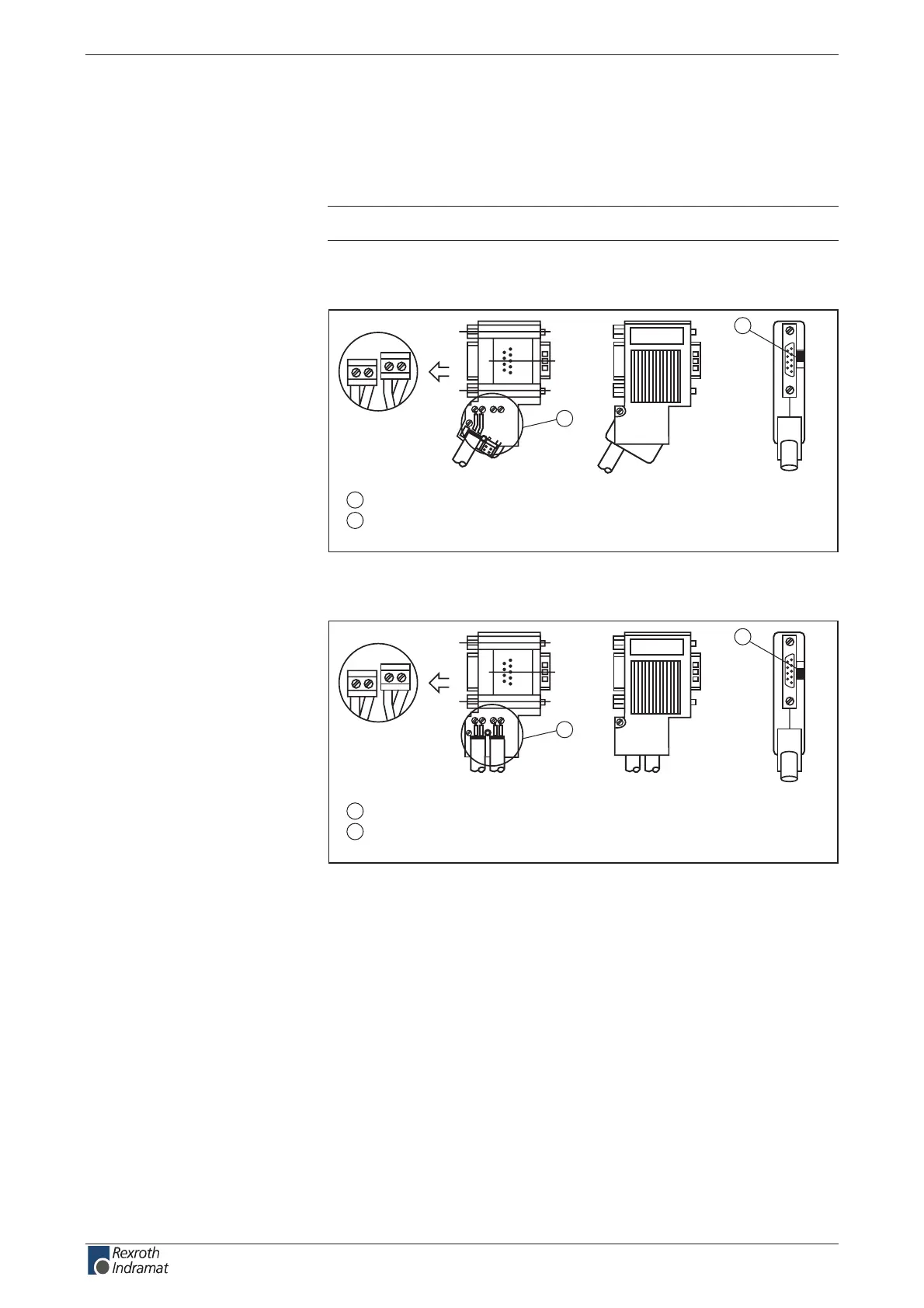

Fig. 4-189: Bus links for the rst and last slave, bus connector with 9-pin D-SUB
socket, INS 0541
Siemens Siemens
Ap5075f1.fh7
1
2
1
2
A B
A B
A B
A B
Siemens
on
o
Siemens
Terminating resistor is o
The cable shield must be placed bare on the metal guide
Fig. 4-190: Bus link for all other slaves, bus connector with 9-pin D-SUB socket,
INS 0541
