REXROTH IndraDrive C User Manual

7-34 Arranging the Components in the Control Cabinet Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P

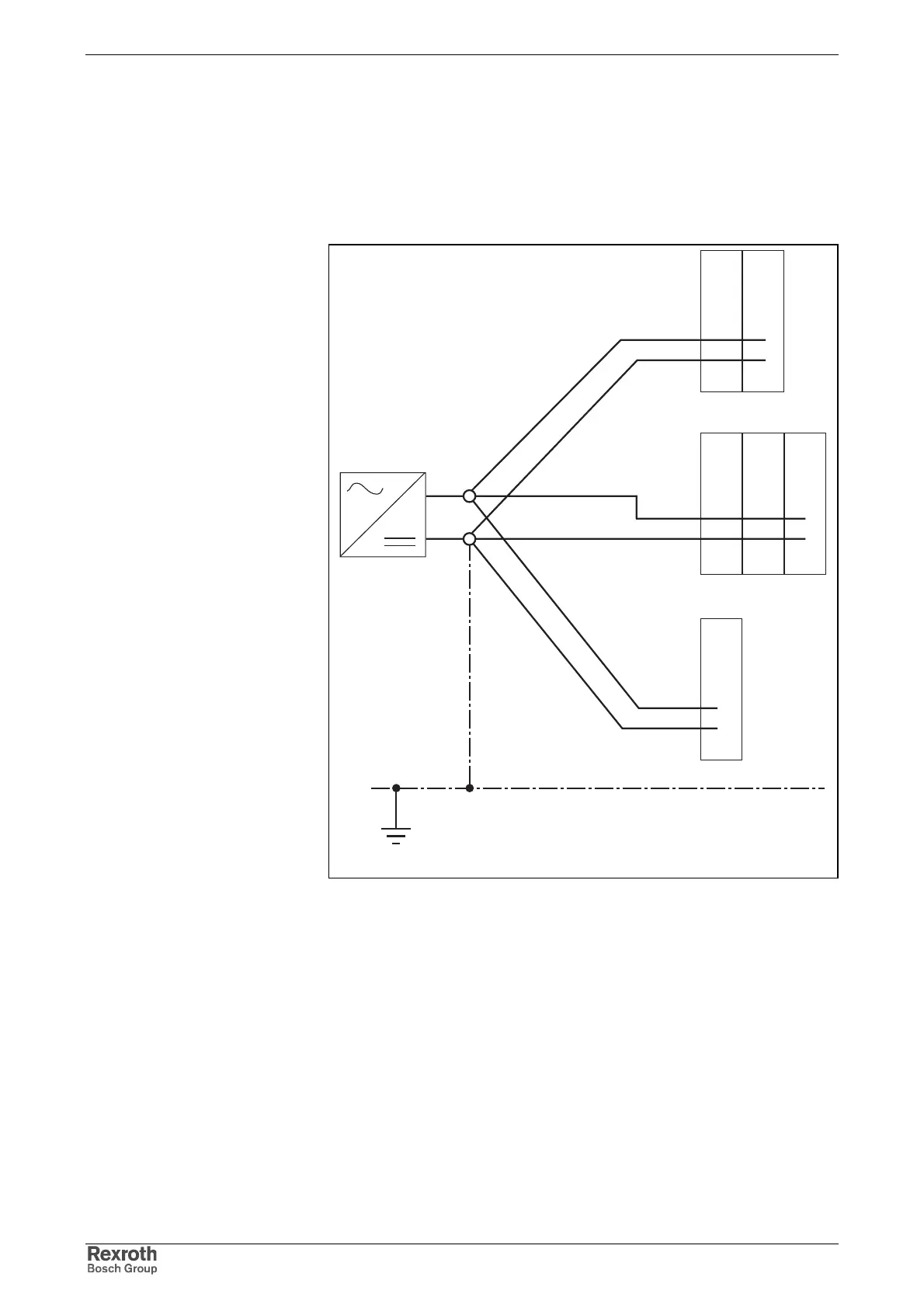

Installing the 24V Supply
As a matter of principle, the 24V supply of the components of the drive
system Rexroth IndraDrive has to be installed in star-shaped form, i.e. for
each group of drive controllers or third-party components it is necessary
to run separate supply lines. This, too, applies to multiple-line
arrangement in the case of supply from a supply unit, for example.
DA000006v01_nn
HCS02 HCS02
1)
HMV HMS
HMD
2)
PE
24V
1) third-party component (e.g. PLC, valve etc.)
2) connection to central ground point (e.g. earth-circuit connector)
Fig. 7-27: Installing the 24V supply

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
