14-46 Accessories in the Drive System Rexroth IndraDrive Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Applications
The control cabinet adapter is used to
• compensate different mounting depths of drive controllers HCS02.1E
and HLC01.1C and HMS01 / HMD01 when mounted to a common
mounting surface.
has03_verwendung.FH7
B
A
A

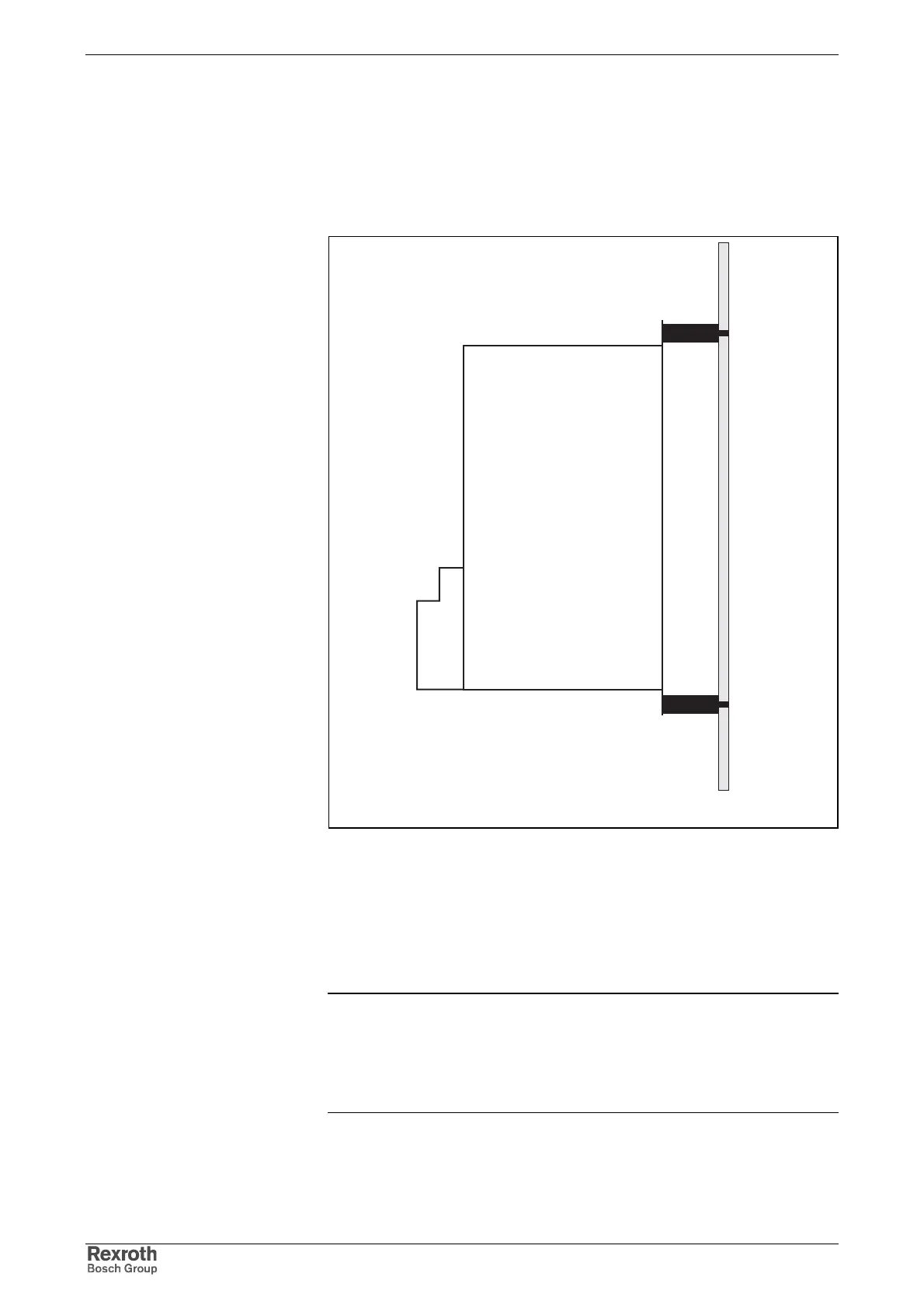

A: control cabinet adapter
B: mounting surface in control cabinet
Fig. 14-43: How to use the control cabinet adapters
Scope of Supply
The HAS03 accessories are available as an option, they are not part of
the standard scope of supply.
Note: Mechanical stability of the adapted device requires a rigid
connection via DC bus rails to a neighboring device without
adapter.
• Do not operate HAS03 without neighboring device.
• Mount HAS03 to bare metal mounting plate.

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
