REXROTH IndraDrive C User Manual

7-18 Arranging the Components in the Control Cabinet Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Arrangement of Cooling Units
CAUTION
Possible damage to the drive controller
Operational safety of the machine endangered
Note the following instructions
Due to the operating principle, condensation water is formed when cooling
units are used. For this reason, please observe the following information:
• Always position cooling units in such a way that condensation water
cannot drip onto electronic equipment in the control cabinet.
• Position the cooling unit in such a way that the blower of the cooling
unit does not spray accumulated condensation water onto electronic
equipment.
incorrectcorrect
control cabinet
warm
cold
cooling unit
cooling unit
control cabinet
warm
cold
air duct
electronic
equipment
Eb0001f1.fh7
electronic
equipment

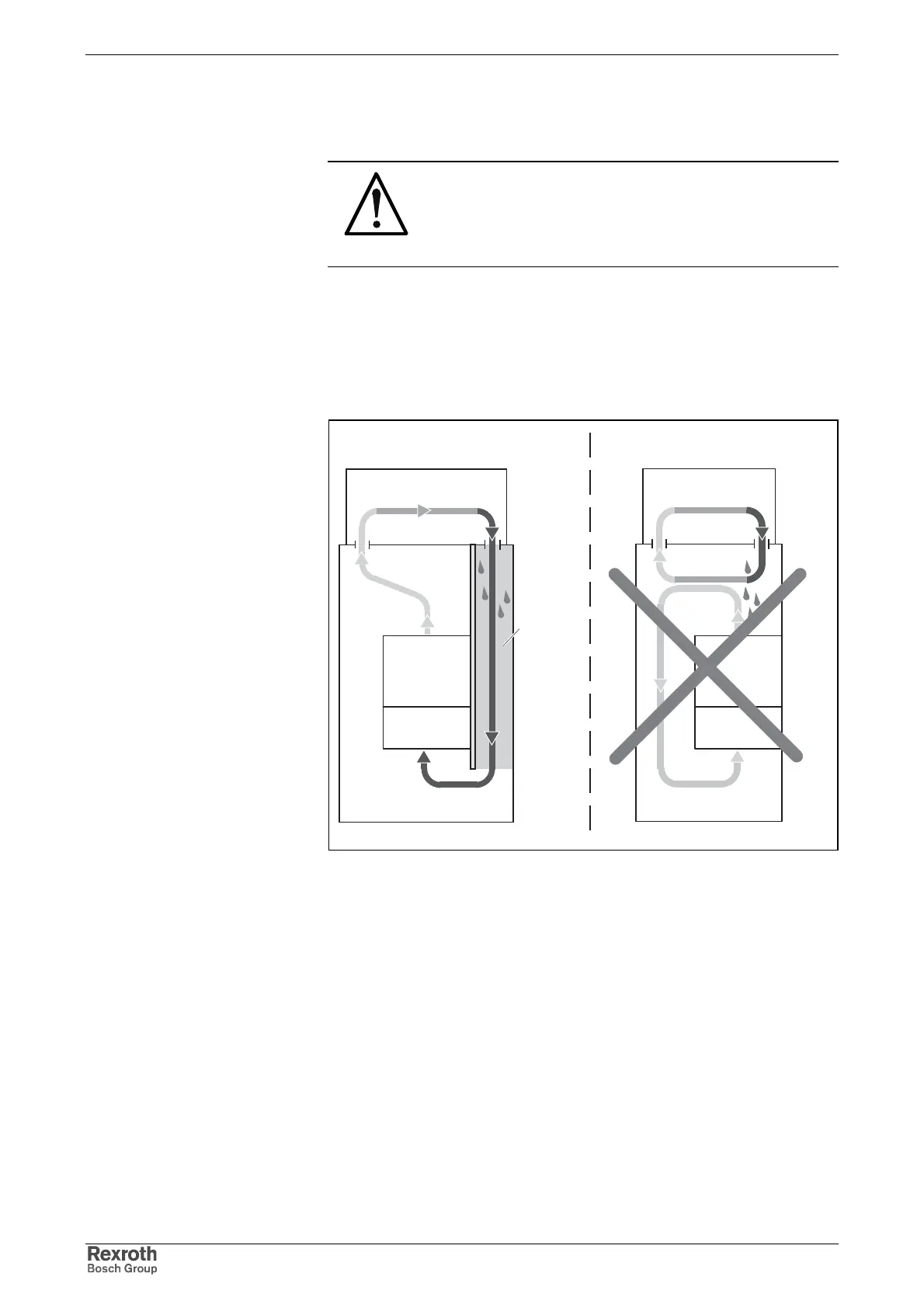

Fig. 7-18: Arranging the cooling unit on the control cabinet
Avoiding Dripping or Sprayed
Water

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
