REXROTH IndraDrive C User Manual

Rexroth IndraDrive Introduction 1-11
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Rexroth IndraDrive M - Modular Inverters
Rexroth IndraDrive M is the modular form of the product range.
The combination of an HMV supply module and HMS and HMD drive
controllers to form a modular drive system allows operating several
motors.
DST HNF HNL
HMV
HMS
HMD
Cable
Motor
HMS
HMD
....
Cable
Motor
...
...
mains
optionally required components are marked with gray background color

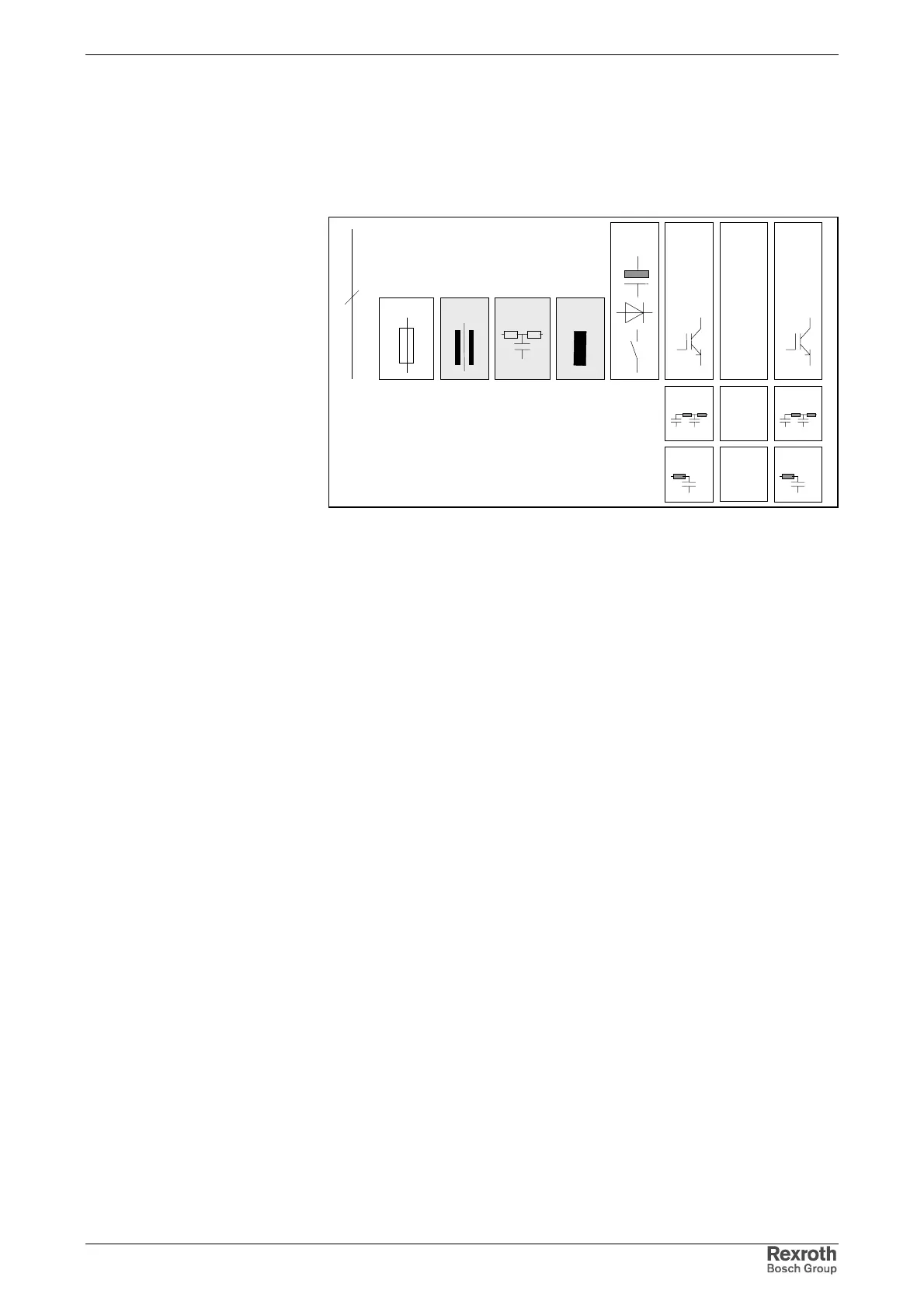

Fig. 1-10: Block diagram Rexroth IndraDrive M
Basic features of Rexroth IndraDrive M:
• scaleable power supply
• integrated mains contactor
• modular extension of number of axis is possible
• additional components DC bus resistor units and DC bus capacitance
modules
Combination of Rexroth IndraDrive C and Rexroth IndraDrive M
On the common platform Rexroth IndraDrive it is possible to combine the
components of the product ranges IndraDrive C and IndraDrive M to form
drive systems of optimum costs and performance. For information on the
allowed combinations see chapter.
Modular Inverters

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
