14-42 Accessories in the Drive System Rexroth IndraDrive Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Shield Connection of Motor Cable via Mains Filter
For shield connection of the motor cable at the drive controller via the
mains filter, a special shielding plate is available:
Note: Using the shielding plate guarantees optimum shield contact
of the motor cable. You should therefore always use the
shielding plate, where possible.
The shielding plate is only available as an option.
Shield Connection of Motor Cable HAS02.1-006-NNN-NN
with Mains Filter Mounted
1. Hang up shielding plate at bottom of mains filter at threaded bolts and
fasten with supplied nuts.
2. Screw support to shielding plate.
Clips can be mounted depending on motor cable cross section.
PE
PE
L3
L2
L1
X3
PE
MBZU0013EN01.FH9
L1 L2 L3 PE
clip
support
shielding plate

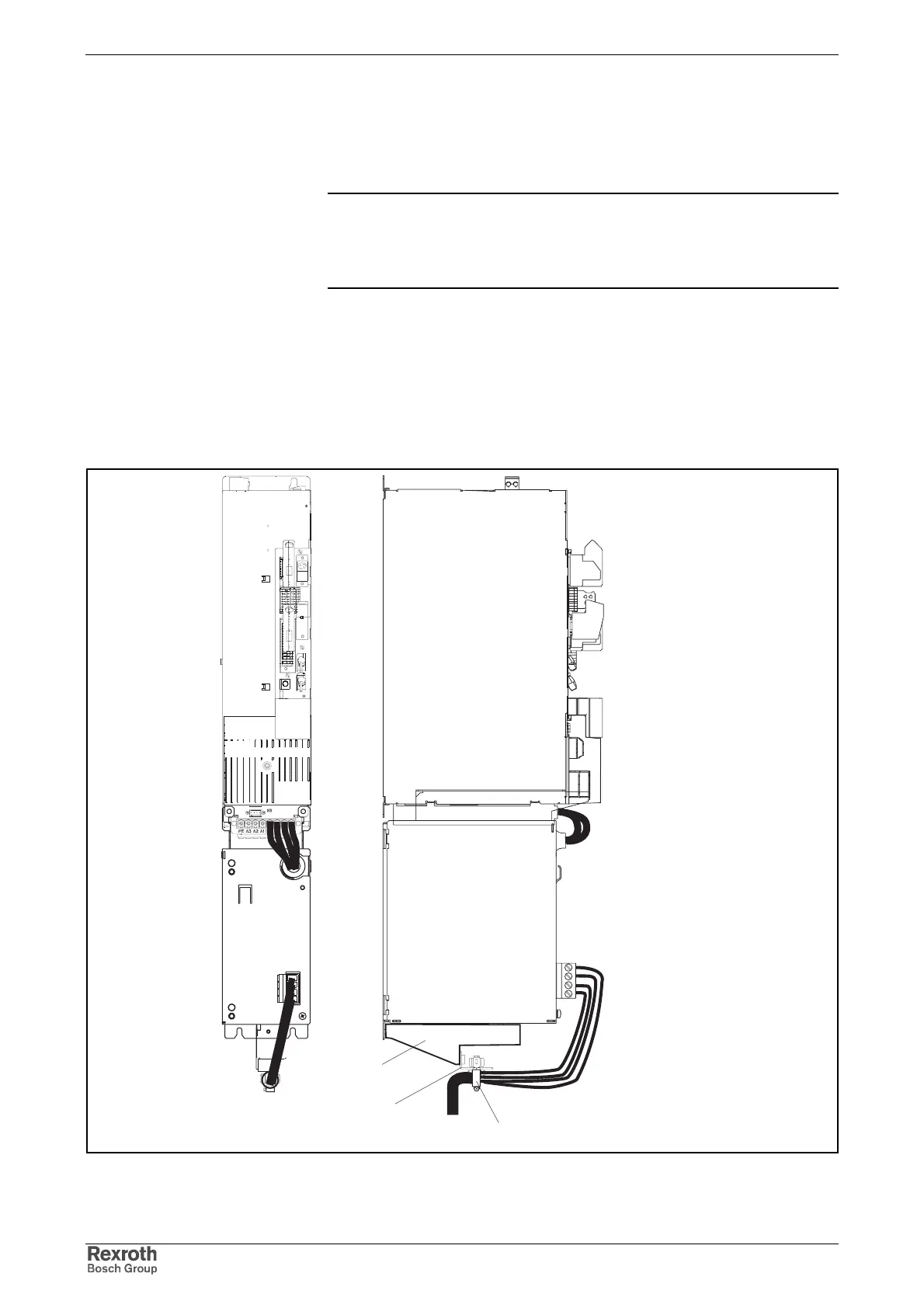

Fig. 14-39: Shielding plate HAS02.1-006-NNN-NN at the bottom of the mains
filter (nominal current 50 A)

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
