REXROTH IndraDrive C User Manual

Rexroth IndraDrive Accessories in the Drive System Rexroth IndraDrive 14-41
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Mounting Shield Connection HAS02.1-008-NNN-NN to
Drive Controller HCS03.1E-W0210
1. By means of supplied screws, fasten support to bottom of drive
controller.
2. Fasten shielding plate to support.
According to required power supply cable and motor cable routing, it is
possible to mount shielding plate for shield connection in different
positions.
3. Fix shield of power supply cable and motor cable to shielding plate
with a clip.
MZZU0015EN00.FH9
PE
1
3
PE
2
motor cable
mains supply cable

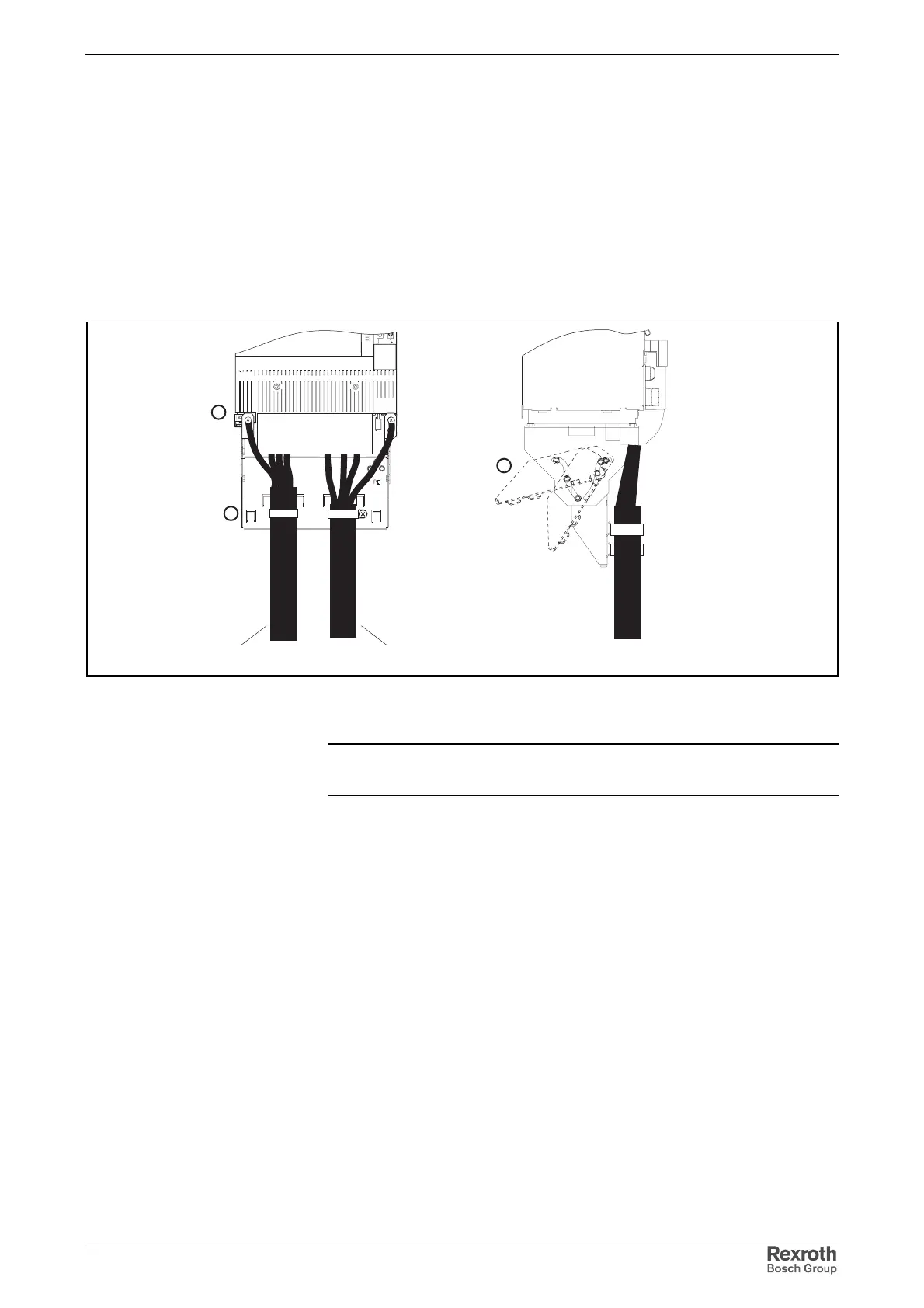

Fig. 14-38: Shielding plate HAS02.1-008-NNN-NN at the bottom of the drive
controller HCS03.1E-W0210
Note: Adapt the size of the clip to the power supply cable and motor
cable cross sections.

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
