REXROTH IndraDrive C User Manual

Rexroth IndraDrive Accessories in the Drive System Rexroth IndraDrive 14-45
DOK-INDRV*-SYSTEM*****-PR02-EN-P
14.4 Control Cabinet Adapter HAS03
Type Code
DT000005v01_en.fh
1234 6789
1
05 1234 67895
Example:
Abbrev.
Column
HAS03.1-002-NNN-NN
1. Product
1.1 Accessories
IndraDrive . . . = HAS
2. Line
2.1
Control cabinet adapter = 03
3. Design
3.1 1 . . . . . . . . . . . . . . . . . . . . . . = 1
4. Device assignment (Number of bolt)
4.1 HCS02.1E-W0012 . . . . . . . . . . . = 002
4.2 HCS02.1E-W0028 . . . . . . . . . . . = 002
4.3
HLB01.1C-01K0-N06R0-A-007-NNNN = 002
4.4 HLC01.1C-01M0-A-007-NNNN = 002
4.5 HLC01.1C-02M4-A-007-NNNN = 002
4.6 HCS02.1E-W0054 . . . . . . . . . . . = 004
4.7 HCS02.1E-W0070 . . . . . . . . . . . = 004
5. Other feature
5.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NNN
6. Other design
6.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NN

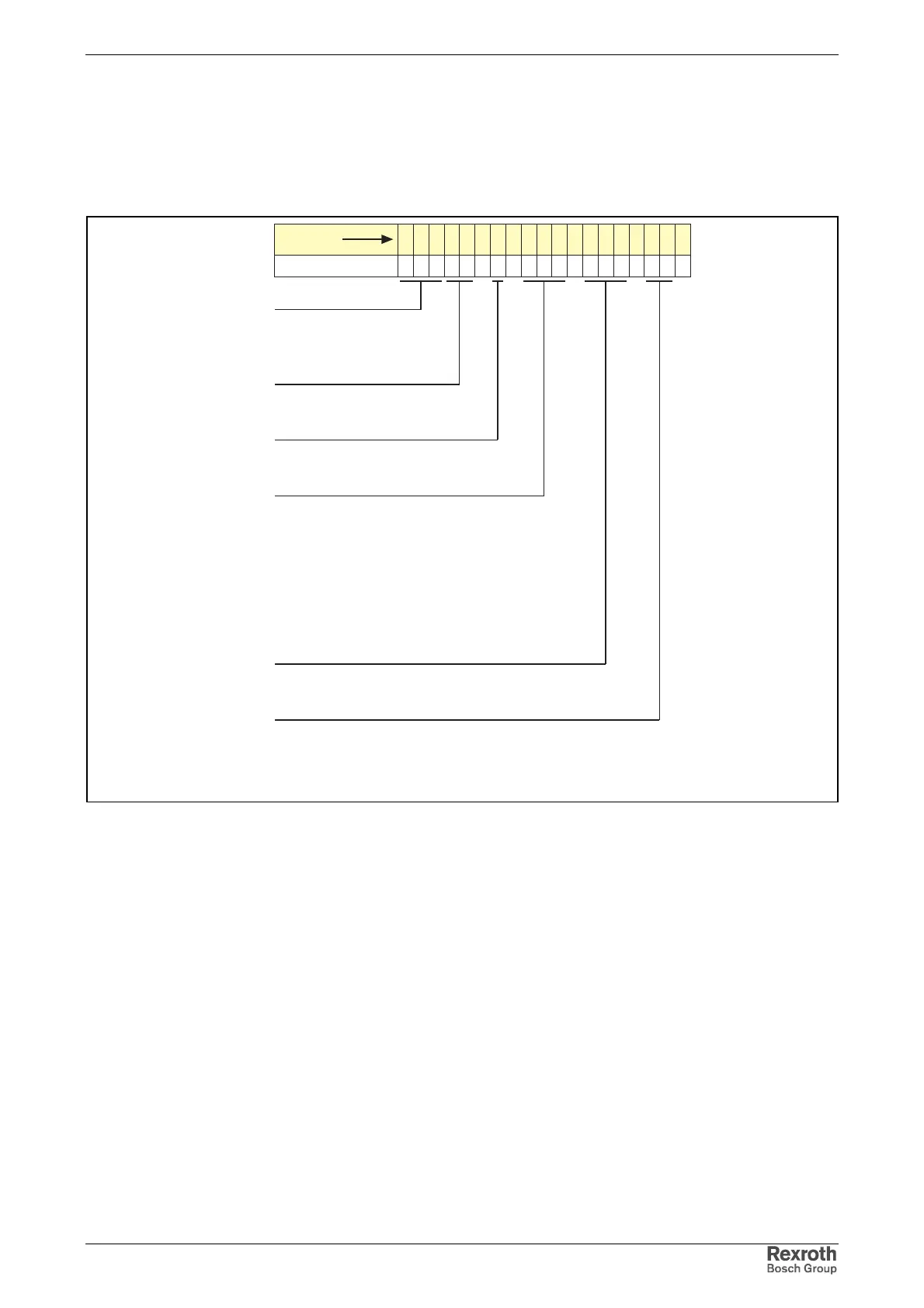

Fig. 14-42: Type code HAS03.1

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
