14-44 Accessories in the Drive System Rexroth IndraDrive Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Shield Connection of Power Supply Cable HAS02.1-009-
NNN-NN with Mains Filter Mounted
1. Hang up support at bottom of mains filter and fasten it by means of
supplied screws.
2. Screw shielding plate of power supply cable to support.
According to required power supply cable routing, it is possible to mount
shield for shield connection in different positions:
• power supply cable routed in parallel or
• 45° to bottom of mains filter.
MZZU0014EN00.FH9
L1 L2 L3
PEPE
PE
1
2
3
motor cable
power supply cable

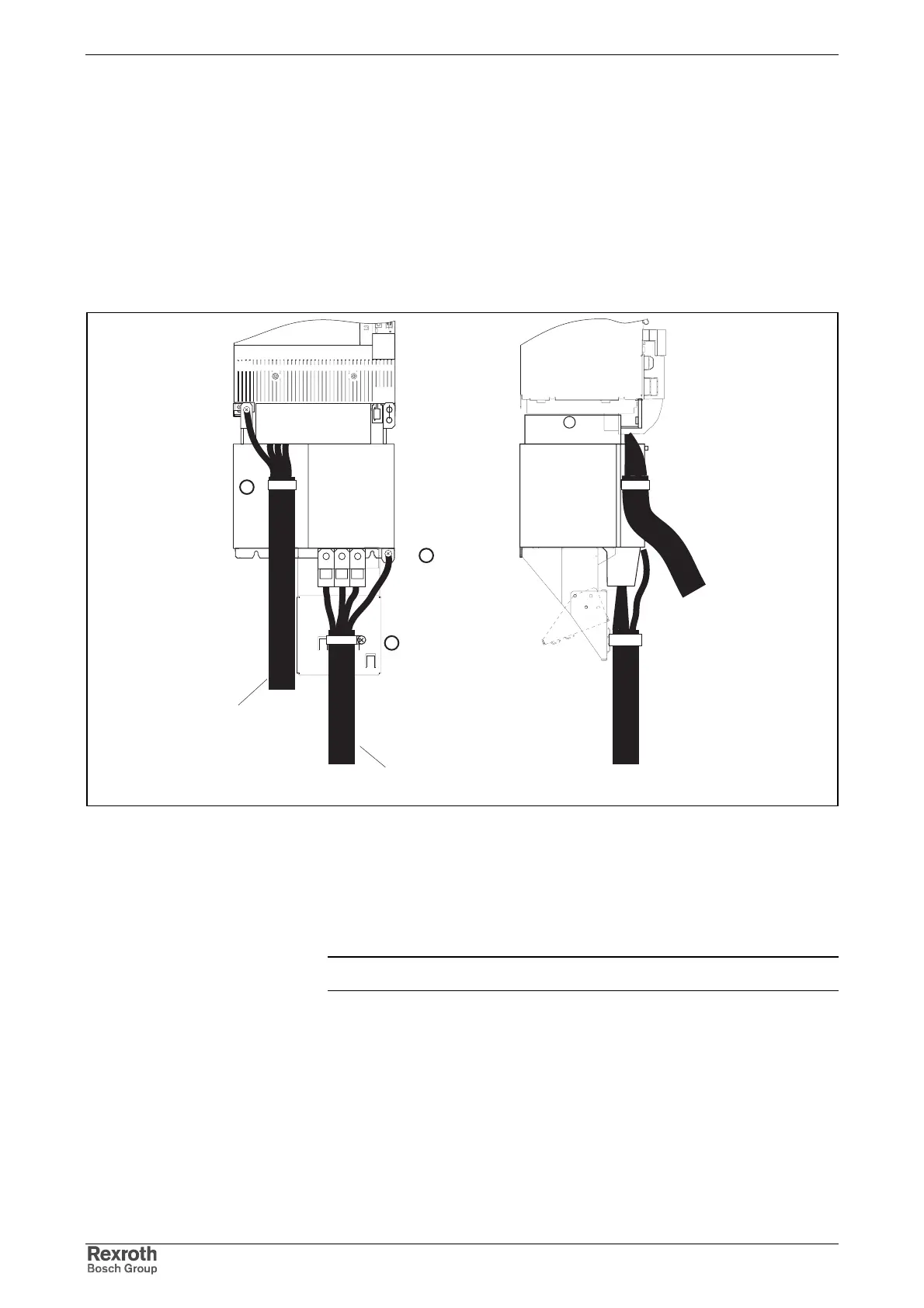

Fig. 14-41: Shielding plate HAS02.1-009-NNN-NN at the bottom of the mains
filter (nominal current 146 A)
3. Fix shield of power supply cable to front side of mains filter with a clip.
For shield connection of the motor cable at the mains filter, clips of
various sizes are available according to cross sections and number of
cables, which are hung up to the punched holes.
Note: The shield terminals must not be used to provide strain relief.
