1-10 Introduction Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P
Differences between Rexroth IndraDrive C and Rexroth IndraDrive M
The product ranges IndraDrive C and IndraDrive M were created on the
IndraDrive platform.
Rexroth IndraDrive C
Rexroth IndraDrive C is the compact form of the product range.
The drive controllers HCS02 and HCS03 are the fundamental
components of IndraDrive C, they are compact converters containing the
mains supply.
DST HNF HNL
HCS
Cable Motor
Con-
t
act
or
mains
gray optional

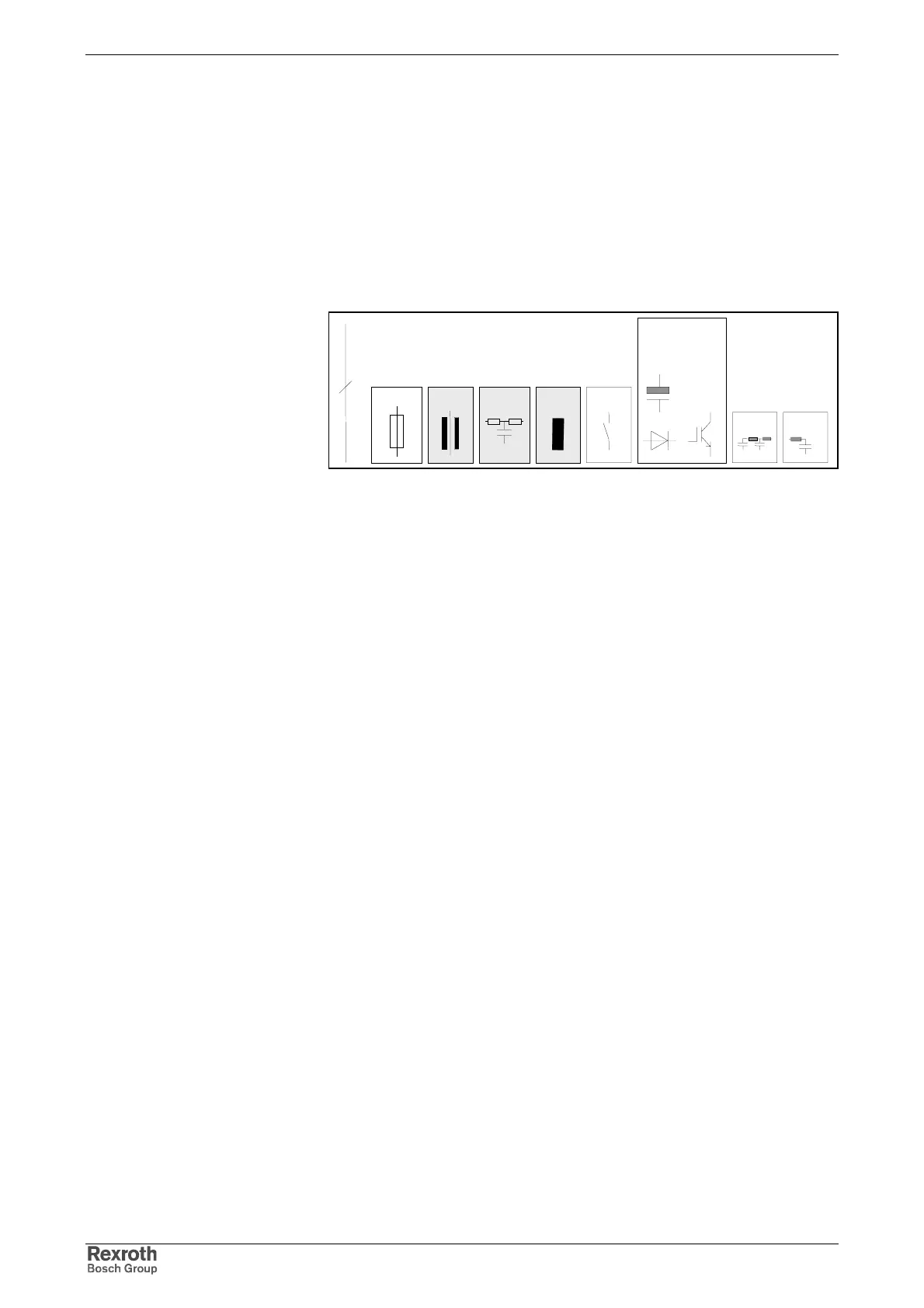

Fig. 1-9: Block diagram Rexroth IndraDrive C
Basic features of Rexroth IndraDrive C:
integrated power supply
integrated braking resistor (as an option, external for HCS03)
integrated 24V control voltage supply (optional for HCS02)
additional components DC bus resistor units and DC bus capacitance
modules, as well as braking resistors
Compact Converters
