REXROTH IndraDrive C User Manual

9-2 Types of Mains Connection Rexroth IndraDrive
DOK-INDRV*-SYSTEM*****-PR02-EN-P

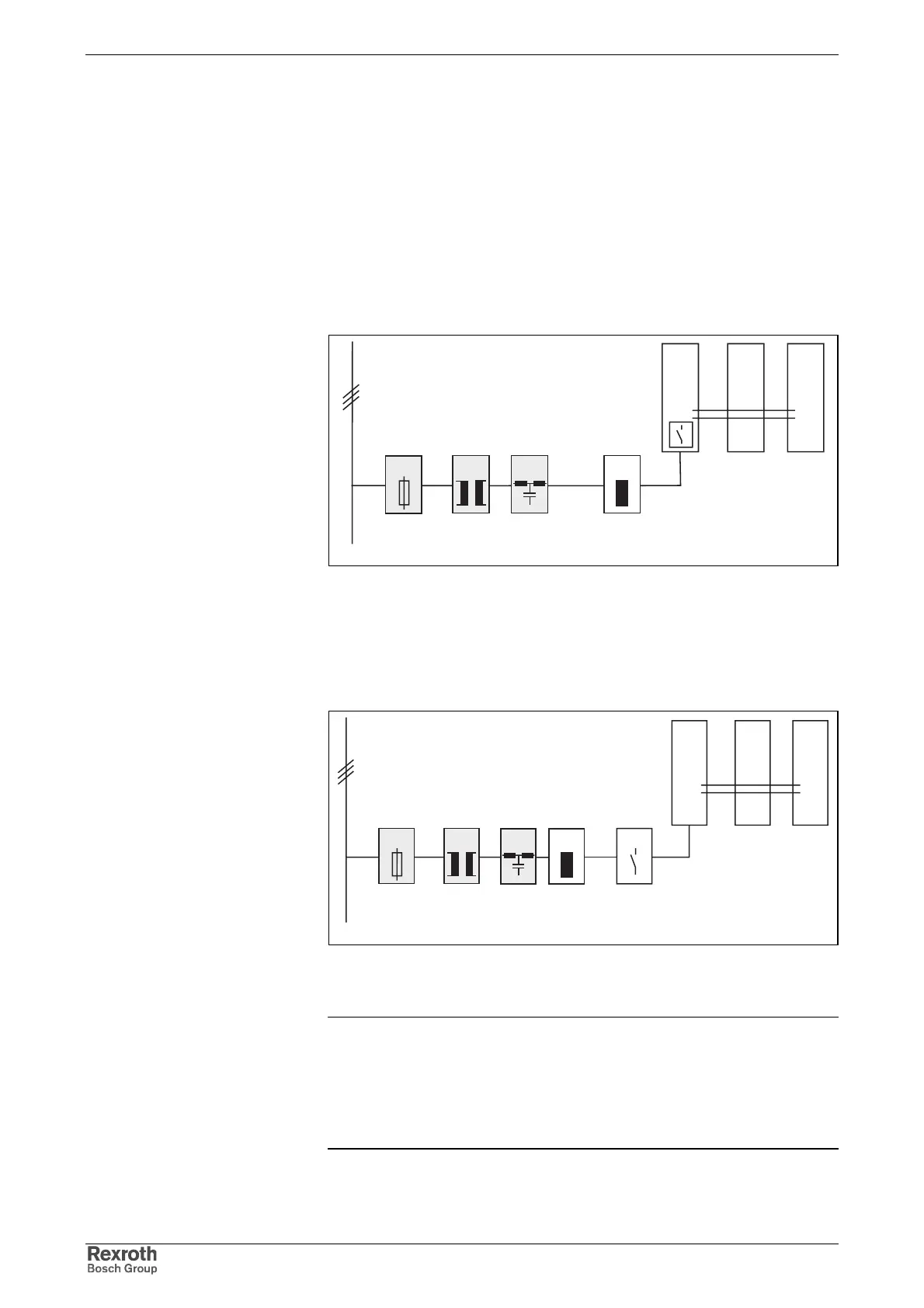

9.1 Individual Supply
The mains connection individual supply is the standard type of
connection. It is characterized by one mains connection (mains circuit
breaker, mains transformer, mains filter, mains choke) for each drive
system.
Individual Supply with HMV
It is possible to connect further drive controllers and additional
components to the supply module.
HMV
HMS
HMD
Choke
Trafo
Filter
Fuse
Einzeleinspeisung HMV.EPS
optionally required components are marked with gray background color
Fig. 9-2: Individual supply HMV
Individual Supply with HCS
It is possible to connect further drive controllers and additional
components to the HCS drive controller.
HCS
HCS
HCS
Choke
Trafo
Fuse
Filter
Einzeleinspeisung HCS.EPS
optionally required components are marked with gray background color
Fig. 9-3: Individual supply HCS
Note: Apart from the connection of the drive controller to the mains,
the following connections have to be wired:
• Bb contact at control section (see Project Planning Manual
for control section)
• control voltage supply
• equipment grounding conductor

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
