REXROTH IndraDrive C User Manual

Rexroth IndraDrive Types of Mains Connection 9-5
DOK-INDRV*-SYSTEM*****-PR02-EN-P
HMV
HM*
HMV
HM*
HM*
HM*
Antriebsgruppe ohne Zwischenkreisverbindung HMV.EPS
optionally required components are marked with gray background color

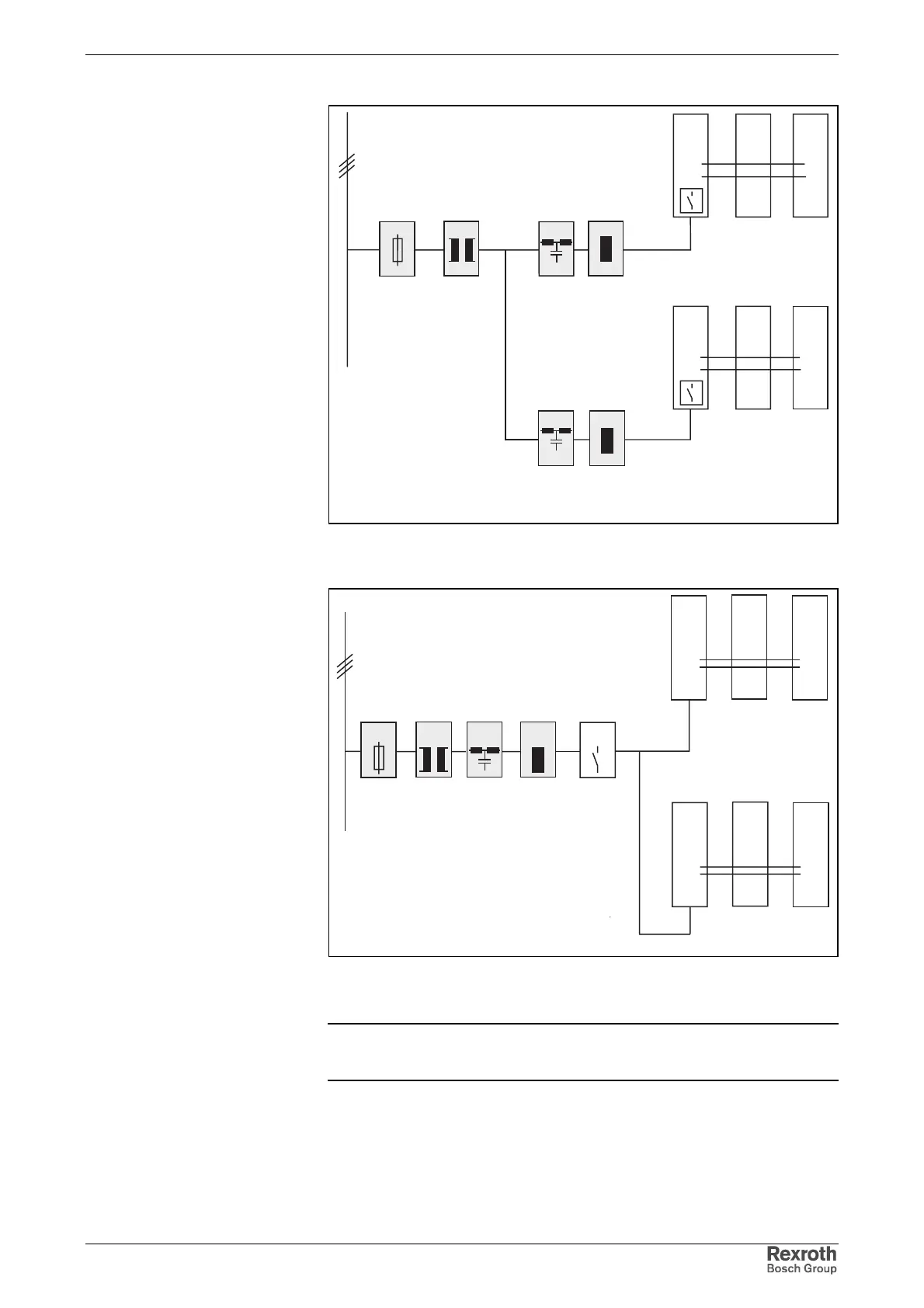

Fig. 9-4: Group supply HMV without DC bus connection of the groups
HCS
Trafo
Filter
Choke
HCS
Fuse
HMS
HMD
HMS
HMD
optionally required components are marked with gray background color
Fig. 9-5: Group supply HCS without DC bus connection of the groups
Note: When using the component HCS03.1E with HNK01.1 connect
the mains contactor electrically between the mains connection
and the HNK.
Group Supply HMV without DC
Bus Connection of the Groups
Group Supply HCS without DC
Bus Connection of the Groups

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
