Rexroth IndraDrive Types of Mains Connection 9-7
DOK-INDRV*-SYSTEM*****-PR02-EN-P
This type of mains connection is only allowed for HMV01.1E (not allowed
for HMV01.1R). This mains connection is used for high-performance drive
systems.
HMV
HM*
HM*
Trafo
HMV
HM*
HM*
Filter
Filter
Choke
Choke
Fuse
Gruppeneinsp HMV m ZK.EPS
optionally required components are marked with gray background color

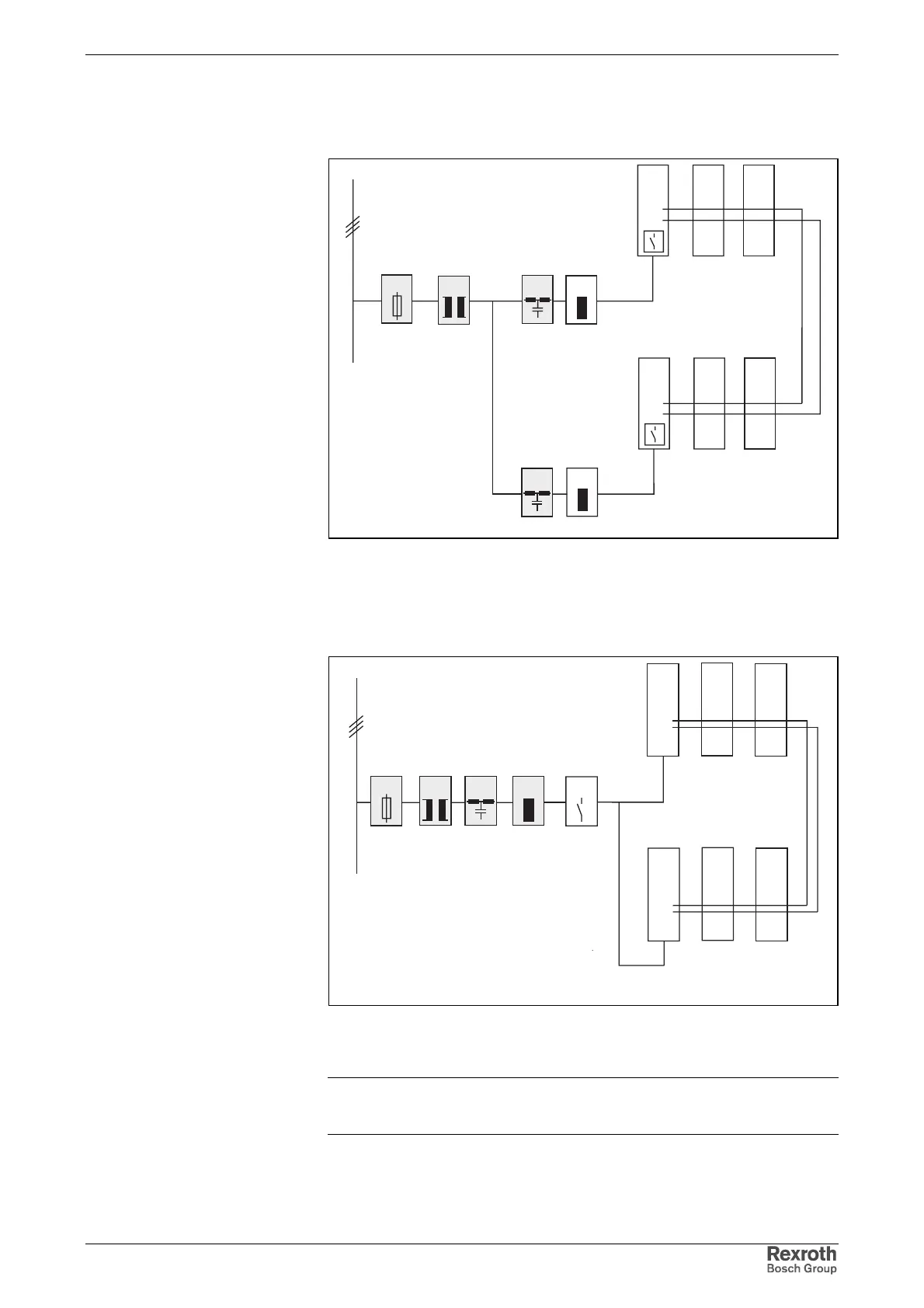

Fig. 9-6: Group supply HMV with DC bus connection
This type of mains connection corresponds to parallel operation of HCS
drive controllers.
HCS
Trafo
Filter
Choke
HCS
Fuse
HMS
HMD
HMS
HMD
Gruppeneinsp HCS m ZK.EPS
optionally required components are marked with gray background color
Fig. 9-7: Group supply HCS with DC bus connection
Note: When using the component HCS03.1E with HNK01.1 connect
the mains contactor electrically between the mains connection
and the HNK.
Group Supply HMV with DC Bus
Connection of the Groups
Group Supply HCS with DC Bus
Connection of the Groups
