Rexroth IndraDrive Connections of the Components in the Drive System 12-9
DOK-INDRV*-SYSTEM*****-PR02-EN-P

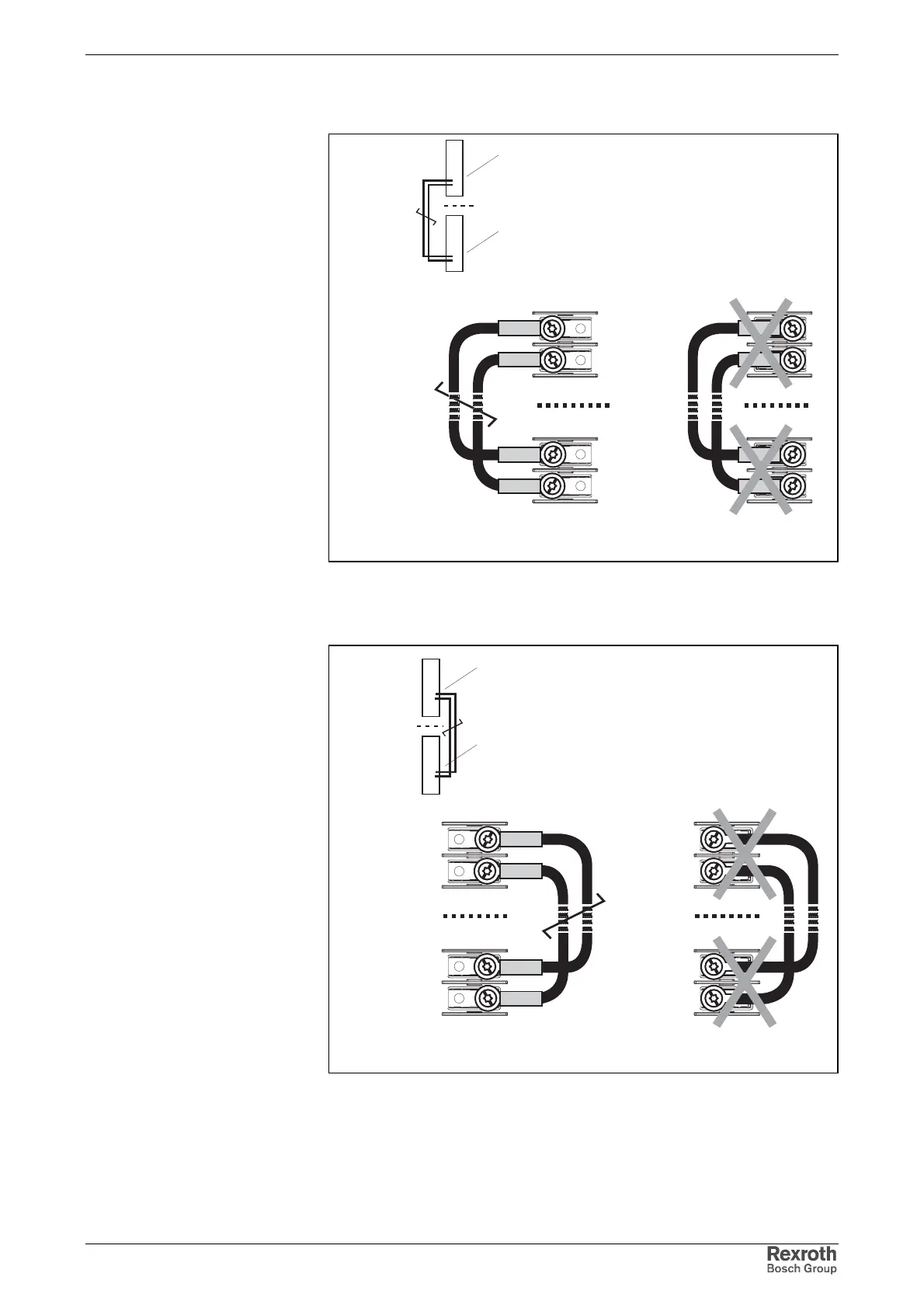

Cable Routing to the Left
steuerspg nach links
correct incorrect
device 1
(control voltage connection)
device 2
(control voltage connection)
device 1
(control voltage
connection)
device 2
(control voltage
connection)
Fig. 12-9: Control voltage connections for cable routing to the left
Cable Routing to the Right
DC bus nach rechts_1f4.fh7
device 1
(control voltage connection)
device 2
(control voltage connection)
device 1
(control voltage
connection)
device 2
(control voltage
connection)
correct incorrect
Fig. 12-10: Control voltage connections for cable routing to the right

REXROTH IndraDrive C Specifications

General

Protection Class	IP20
Voltage Range	200 V to 480 V
Input Voltage	200 to 480 VAC
Control Modes	Speed, Torque, Position
Communication Interfaces	PROFIBUS, CANopen, Ethernet
Feedback Systems	Resolver, incremental encoder, absolute encoder
