14.5 Capacitor HAS04
Capacitors from the DC bus connections L+ and L- against housing.
Type Code
DT000006v01_en.fh
1. Product
1.1 Accessories
IndraDrive . . . = HAS
2. Line
2.1 Capacitor . . . . . . . . . = 04
3. Design
3.1 1 . . . . . . . . . . . . . . . . . . . . . . = 1
4. Capacitor
4.1 2 x 470 nF . . . . . . . . . . . . . . . . . . = 001
5. Other feature
5.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NNN
6. Other design
6.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NN
1234 6789
1
05 1234 67895
Example:
Abbrev.
Column
HAS04 . 1 -001 -NNN-NN

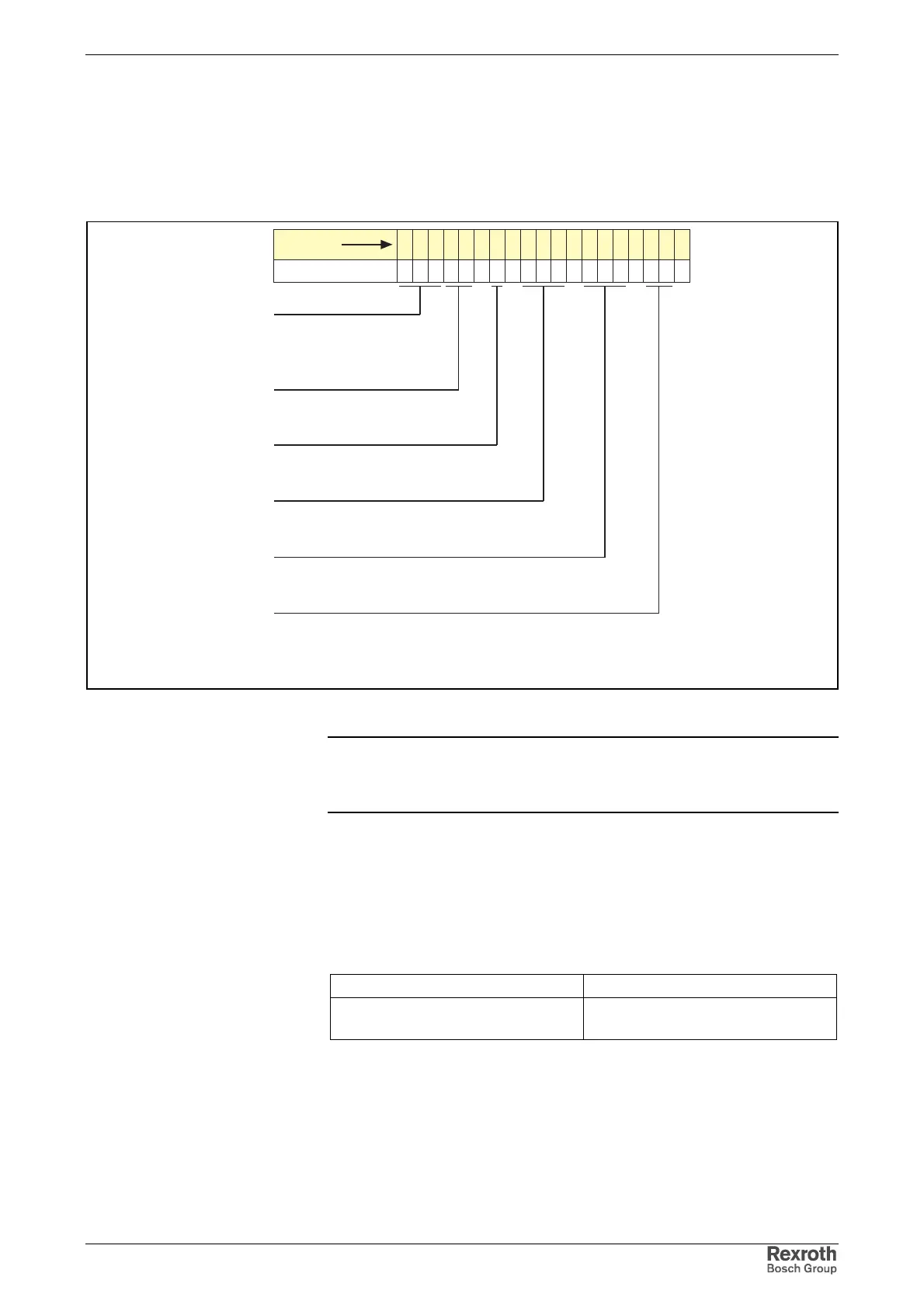

Fig. 14-46: Type code HAS04.1
Note: Using the HAS04 accessories requires additional mounting
clearance at the drive controller.
Please observe the dimensions of HAS04.
Applications
The HAS04 accessories are used to
• operate HCS02 drive controllers at the HNF01.1 mains filter,
• operate HMS01 drive controllers at HCS02 drive controllers.
HAS04 type Application
HAS04.1-001-NNN-NN at DC bus connections of HCS02 drive
controllers
Fig. 14-47: HAS04 type
