Roche Diagnostics
160 Operator’s Manual · Version 3.0
6 Configuration Multiplate® analyzer
Editing test parameters

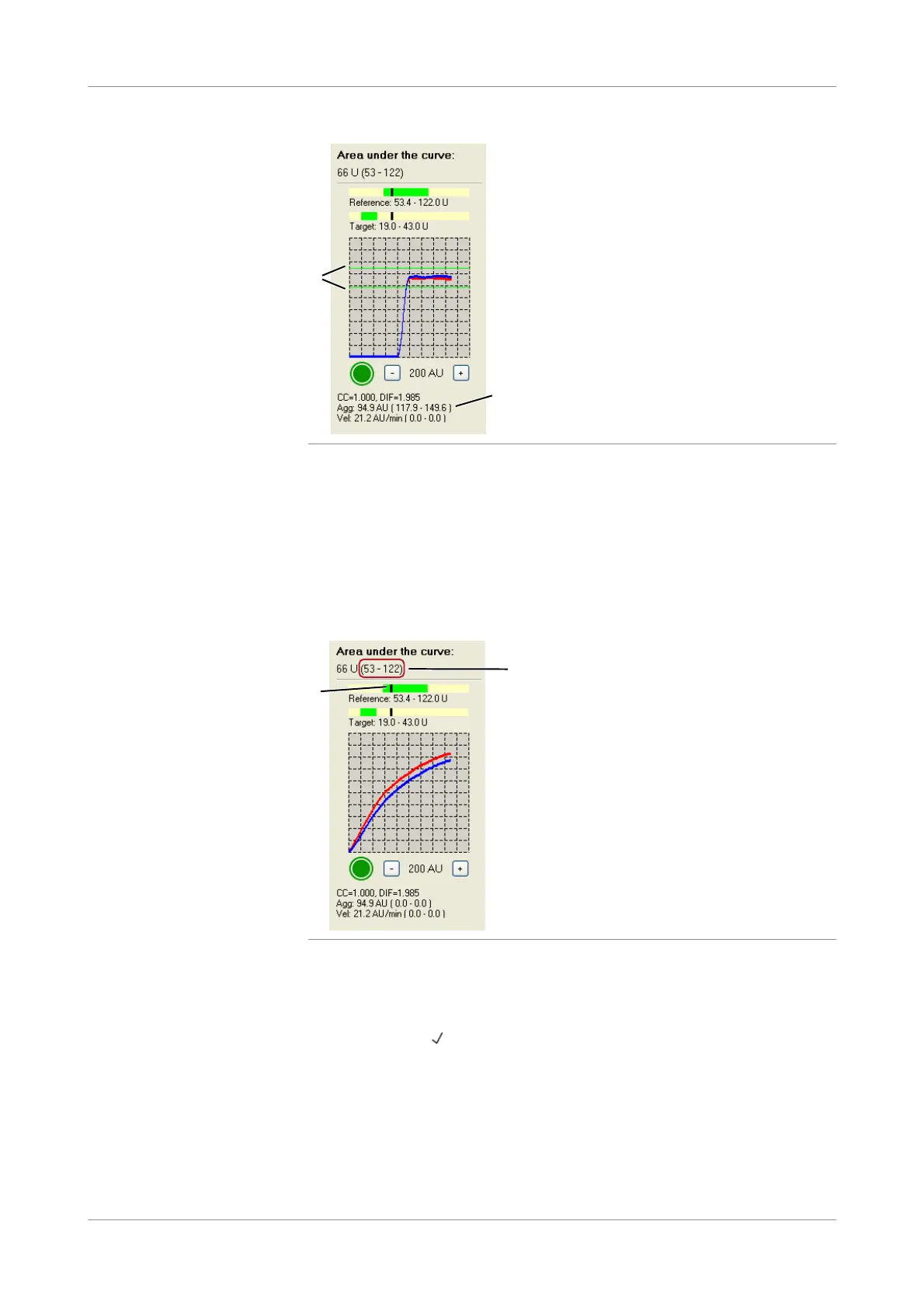

Figure 6-13 Upper and lower limit of the reference range for AU
Select Show reference range for Vel to show the entered reference range for velocity
in brackets after the current velocity value AU/min.
Select Show reference range for AUC to show the entered AUC reference range in
brackets after the current AUC value U (B) and above the graphic window as green
bar (A).
Select Show target range for AUC to show the entered AUC target range above the
graphic window as green bar.
Figure 6-14 Reference range for AUC
u See also AUC bars (p. 72)
Enable this test Select this option to activate the selected test for measurement. Tests that are active
have a check mark ( ) in front of the test name in the test list.
B
A
B
A
