Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

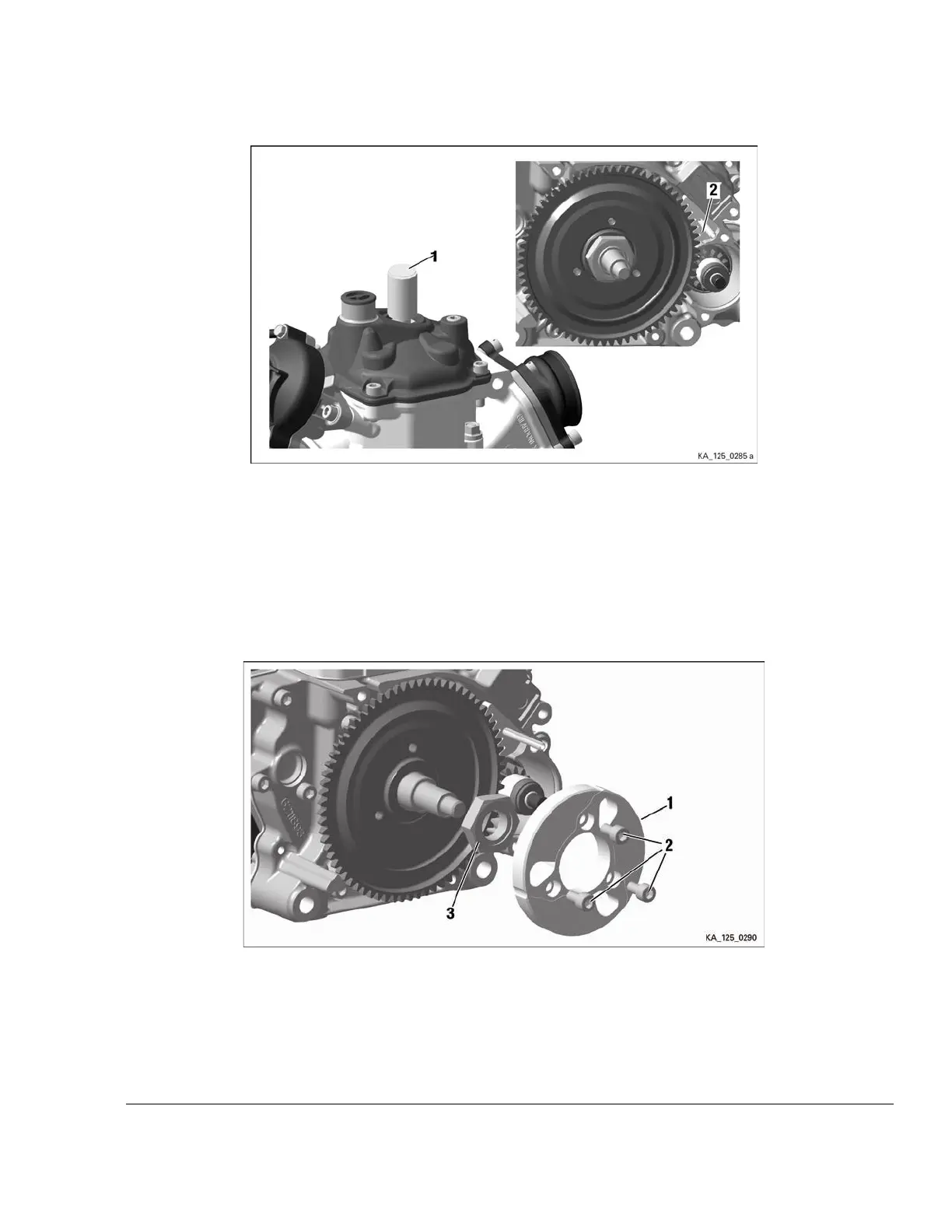

Figure 7.8: Fixation tool
1
Fixation tool (crankshaft)
2
Fixation tool (starter gear)
______________________________________________________
3. Remove the clutch (3).
4. Unscrew hex. nut M20 (4).
Figure 7.9: Clutch
1 Clutch 2 Allen screw M6x12
3 Hex. nut M28x1
______________________________________________________
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 9
