REPAIR MANUAL
5. Fasten the puller assy. (1) to the starter gear assembly with 3 Allen screws M6x60 (2).
NNOOTTEE
Make sure the screws do not touch the housing. Do not screw them in too far.
6. Pull out starter gear assy. (3).
7. Remove starter reduction gear assy. (4) with the thrust washer (5) below.

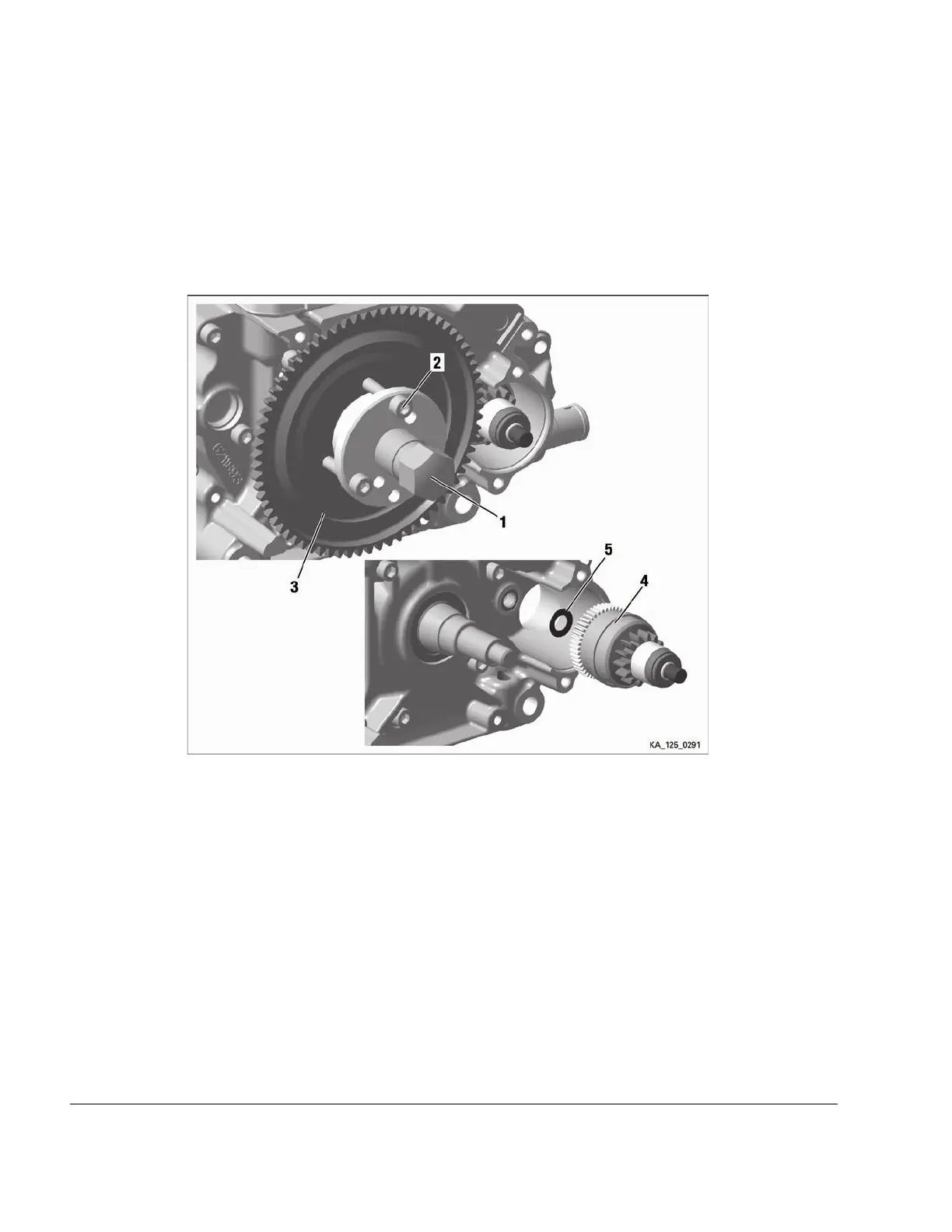

Figure 7.10: Starter gear assy.
1
Puller assy.
2 Allen screws M6x60
3
Starter gear assy.
4
Starter reduction gear
5 Thrust washer
______________________________________________________
Chapter 7
Page 10
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
