Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

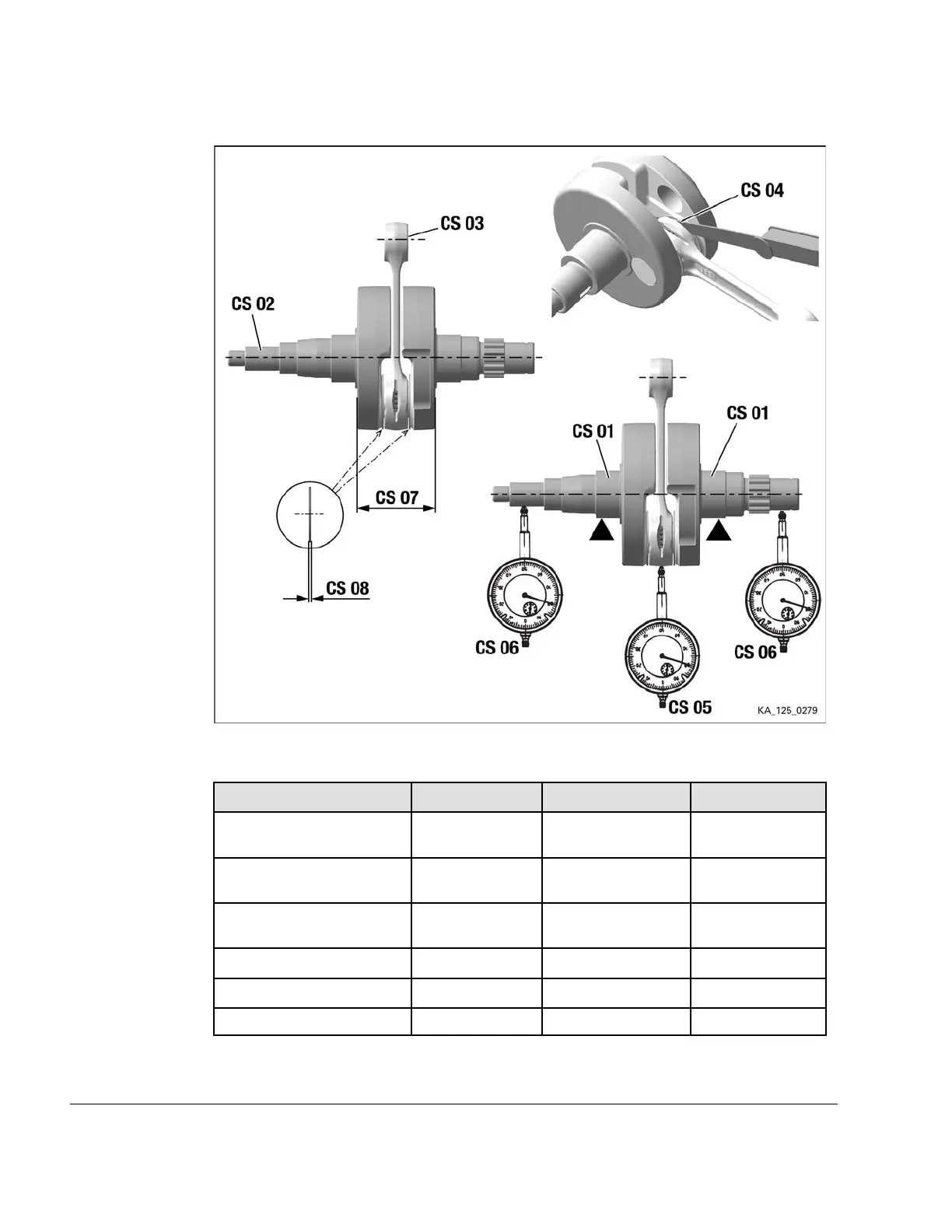

Figure 5.15
Description
Code
New dimension Wear limit
Main bearing seat
CS01
29.980 mm -
29.995 mm
29.94 mm
Clutch bearing seat CS02 14.98 mm - 15.003
mm
14.95 mm
Piston pin bearing seat
CS03
18.99 mm - 19.005
mm
19.015 mm
Conrod bearing axial play CS04
1.0 mm 1.3 mm
Conrod bearing radial play CS05
0.05 mm 0.08 mm
Stroke of crankshaft CS06 0.0 mm - 0.015 mm 0.03 mm
Chapter 5
Page 20
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
