SWEEPING MODE
ON THE IFM
SWEEPING OFF
REQUIRED ?
STOP SWEEPING
Y
N
START SWEEPING
Add Offset to programmed frequency
Always start sweeping toward
highest frequency, even if IFM
returning to F
0
in other direction
SWEEPING ON
REQUIRED ?
N
Y
(RZ REQUIRED)
Sweep back to Fo
(see RZ command
description above)

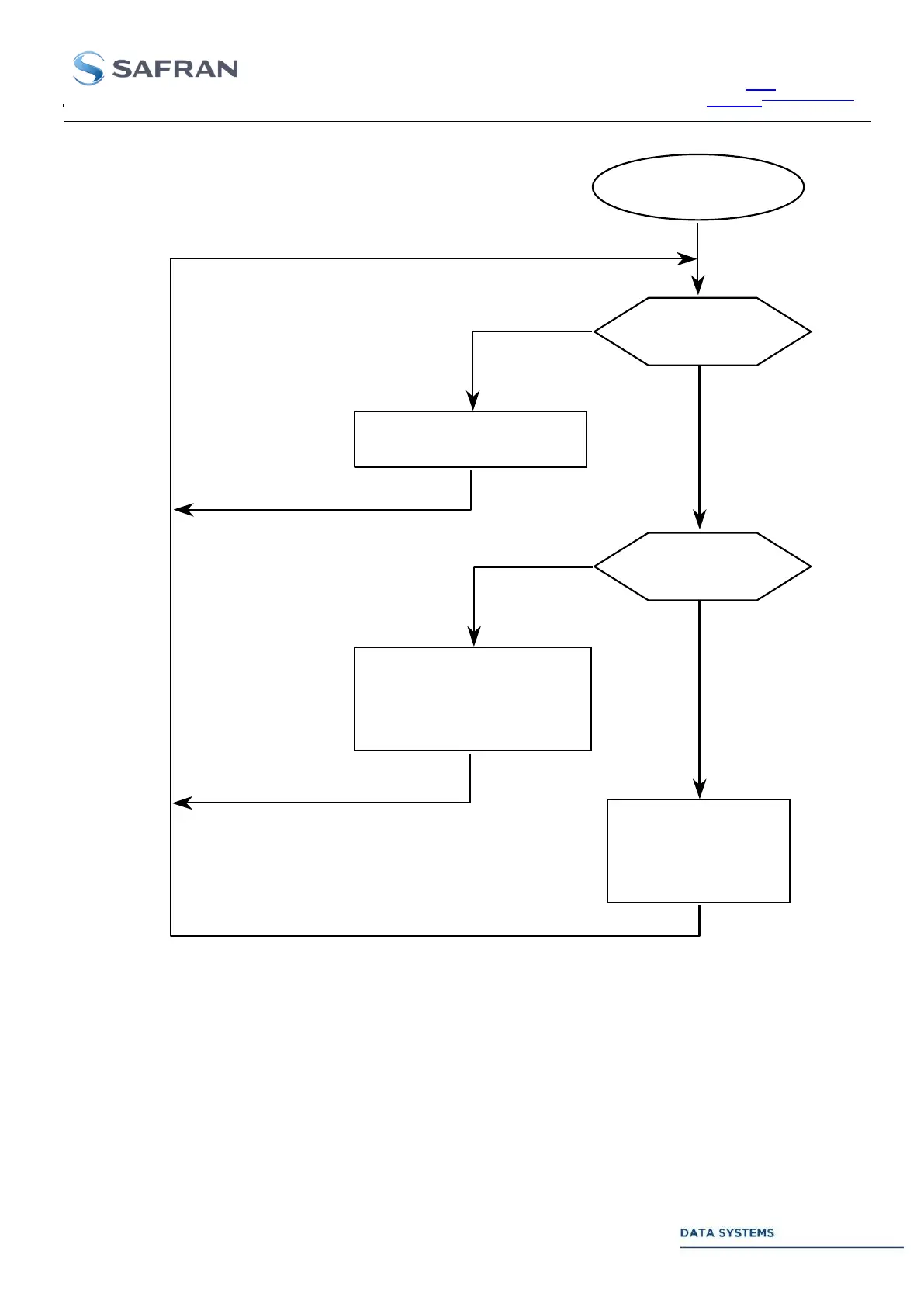

Figure 75: Configuring the Sweeping Mode on the IFM
