Sirius 800 Series User Manual Sirius 840/850 Module Locations 8.3
Iss 5 Rev 7 Page 100 © 2017 SAM
8.3.5 Sirius 840/850: Input Module Locations
Figure 62 shows the Input Module locations as they are situated in the Sirius 840/850 frame.
8.3.6 Sirius 840/850: Output Module Locations
Figure 62 shows the Output Module locations as they are situated in the Sirius 840/850
frame.
Before adding modules to a Sirius 840/850 router check that the power supplies fitted can
supply sufficient power to the router. The router power requirements are described in
Appendix B.1.2 (Sirius 840) and Appendix B.1.3 (Sirius 850).

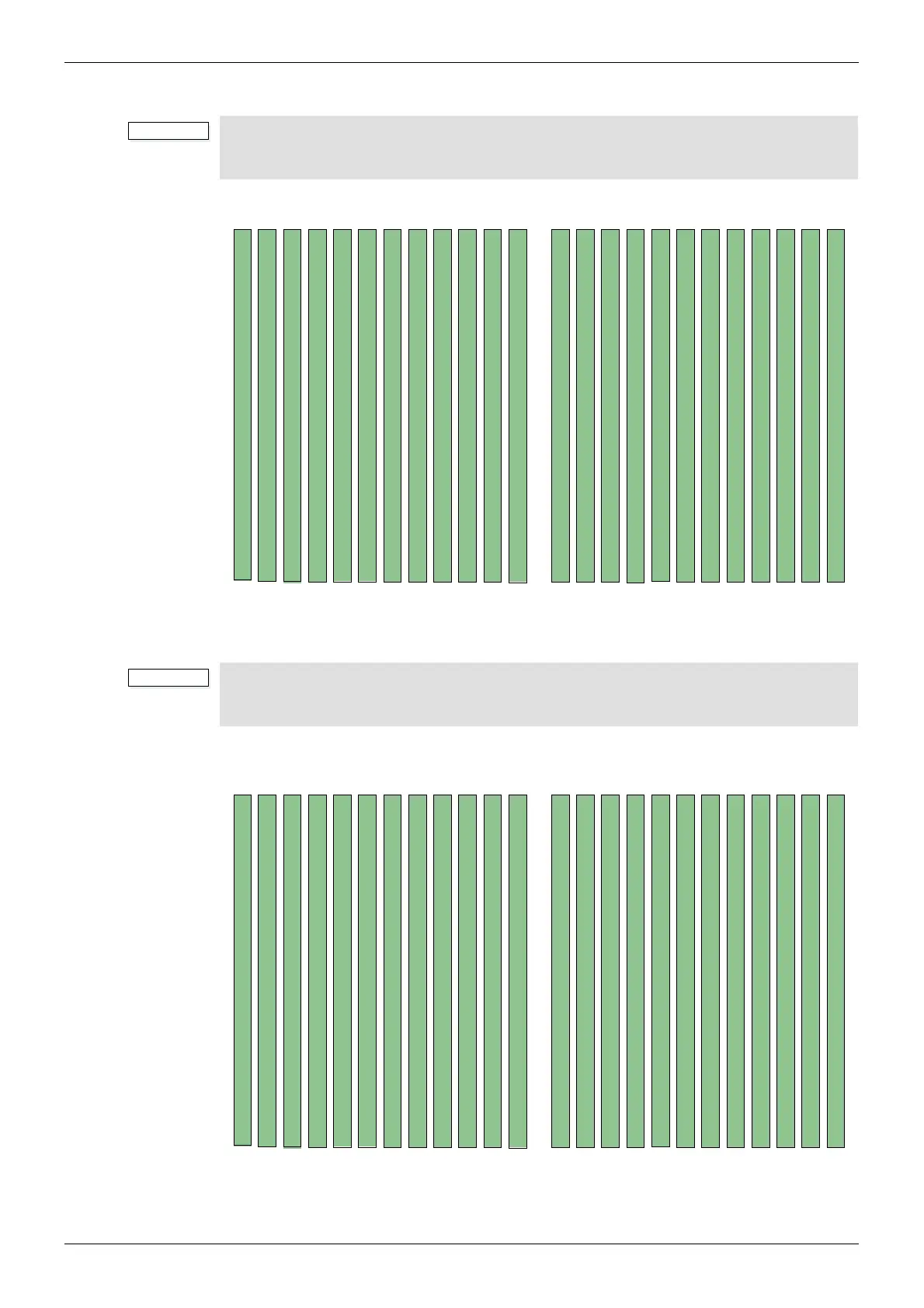

Figure 62 Sirius 840/850 Input Module Location (Front View)
Video 1 to 24, Audio 1 to 768
Video 25 to 48, Audio 769 to 1536
Video 49 to 72, Audio 1537 to 2304
Video 73 to 96, Audio 2305 to 3072
Video 97 to 120, Audio 3073 to 3840
Video 121 to 144, Audio 3841 to 4608
Video 145 to 168, Audio 4609 to 5376
Video 169 to 192, Audio 5377 to 6144
Video 193 to 216, Audio 6145 to 6912
Video 217 to 240, Audio 6913 to 7680
Video 241 to 264, Audio 7681 to 8448
Video 265 to 288, Audio 8449 to 9216
Video 289 to 312, Audio 9217 to 9984
Video 313 to 336, Audio 9984 to 10752
Video 337 to 360, Audio 10753 to 11520
Video 361 to 384, Audio 11521 to 12288
Video 385 to 408, Audio 12289 to 13506
Video 409 to 432, Audio 13507 to 13824
Video 433 to 456, Audio 13825 to 14592
Video 457 to 480, Audio 14593 to 15360
Video 481 to 504, Audio 15361 to 16128
Video 505 to 528, Audio 16129 to 16896
Video 529 to 552, Audio 16897 to 17664
Video 553 to 576, Audio 17665 to 18432
Before adding modules to a Sirius 840/850 router check that the power supplies fitted can
supply sufficient power to the router. The router power requirements are described in
Appendix B.1.2 (Sirius 840) and Appendix B.1.3 (Sirius 850).
Figure 63 Sirius 840/850 Output Module Locations (Front View)
Video 1 to 24, Audio 1 to 768
Video 25 to 48, Audio 769 to 1536
Video 49 to 72, Audio 1537 to 2304
Video 73 to 96, Audio 2305 to 3072
Video 97 to 120, Audio 3073 to 3840
Video 121 to 144, Audio 3841 to 4608
Video 145 to 168, Audio 4609 to 5376
Video 169 to 192, Audio 5377 to 6144
Video 193 to 216, Audio 6145 to 6912
Video 217 to 240, Audio 6913 to 7680
Video 241 to 264, Audio 7681 to 8448
Video 265 to 288, Audio 8449 to 9216
Video 289 to 312, Audio 9217 to 9984
Video 313 to 336, Audio 9984 to 10752
Video 337 to 360, Audio 10753 to 11520
Video 361 to 384, Audio 11521 to 12288
Video 385 to 408, Audio 12289 to 13506
Video 409 to 432, Audio 13507 to 13824
Video 433 to 456, Audio 13825 to 14592
Video 457 to 480, Audio 14593 to 15360
Video 481 to 504, Audio 15361 to 16128
Video 505 to 528, Audio 16129 to 16896
Video 529 to 552, Audio 16897 to 17664
Video 553 to 576, Audio 17665 to 18432
