9.18 5917 Sirius 800 Standard Video BNC/Fiber Input Module
The 5917 standard video BNC/fiber input module has 24 input channels and can handle SD,
ASI and HD signals up to 3Gb/s.
The 5917 Input Module is compatible with the rear panels listed in Table 25

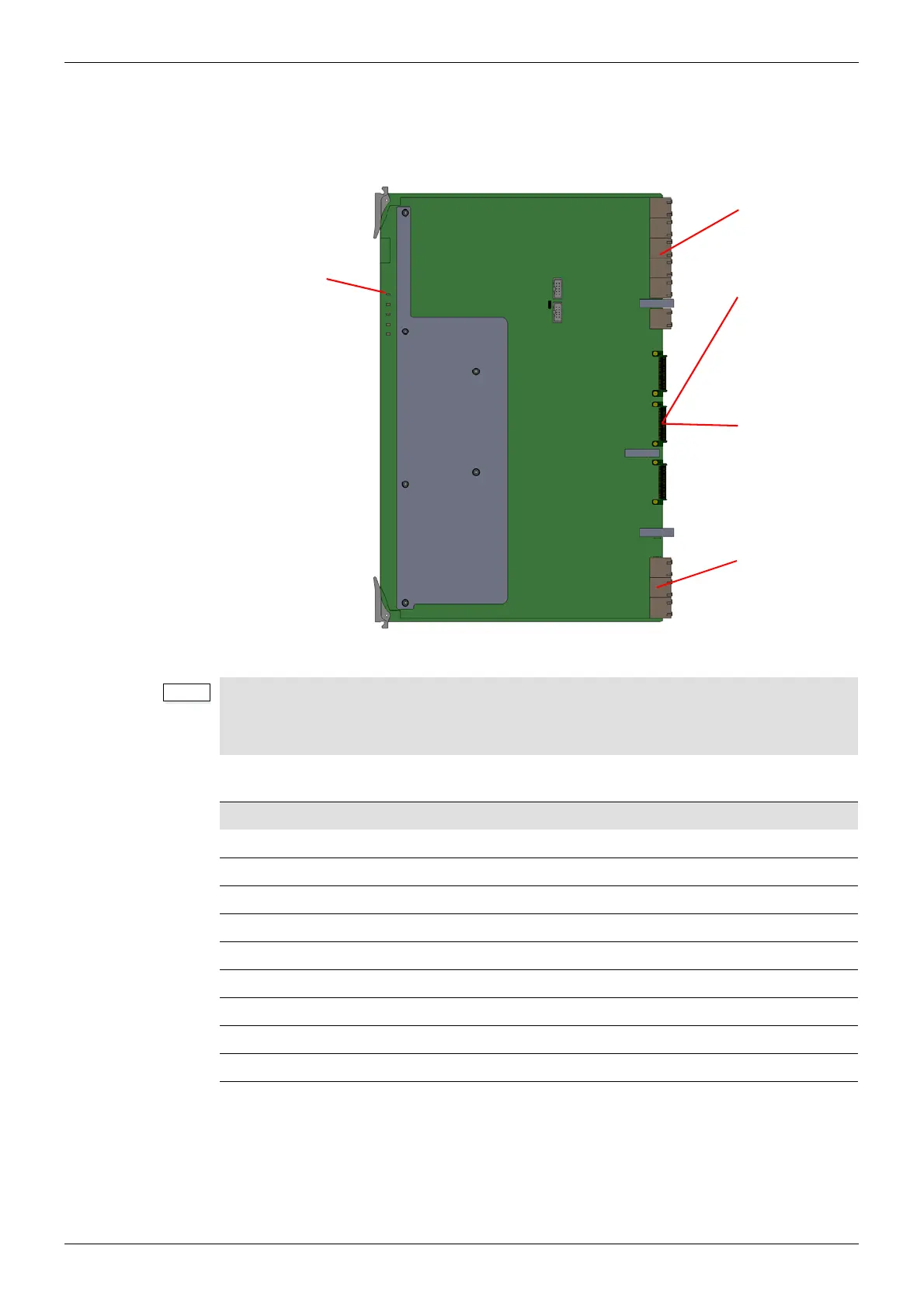

Figure 95 5917 24 Channel Video Input Module with 24 Channel Re-clocking
• Jumpers and Headers are present on the video input module and these are for
SAM Use Only.
• In normal operation no jumper links or headers are fitted.
Rear Panel See Section
Sirius 830: 1234/1235 BNC rear panel see section 9.1
Sirius 830: 1372 HD BNC rear panel see section 9.2
Sirius 830: 1236 Fiber rear panel see section 9.3
Sirius 830: 1373 Fiber rear panel see section 9.4
Sirius 840/850: 1349/1289 BNC rear panel see section 9.9
Sirius 840/850: 1360 HD BNC rear panel see section 9.10
Sirius 840/850: 1305 Fiber rear panel see section 9.11
Sirius 840/850: 1361 Fiber rear panel see section 9.12
Sirius 840/850: 1362 DS-Link rear panel see section 9.13
Table 25 5917 Rear Panel Compatibility
Connectors to
the Motherboard
Sirius 830:
Connectors to
the 1234, 1235,
1372, 1236 or
1373 Rear
Panels
Sirius 840/850:
Connectors to
the 1349, 1289,
1360, 1305,
1361 or 1362
Rear Panels
Connectors to
the Motherboard
LEDs
