The 5926 Sirius 800 standard video output module with re-clocking has 24 video output
channels and can handle SD, ASI and HD signals up to 3Gb/s.
The 5926 video output module is compatible with the rear panels listed in Table 41
Sirius 850: If video expansion is required from a second Sirius 850 frame use the 5938
video output module, see section 12.3.

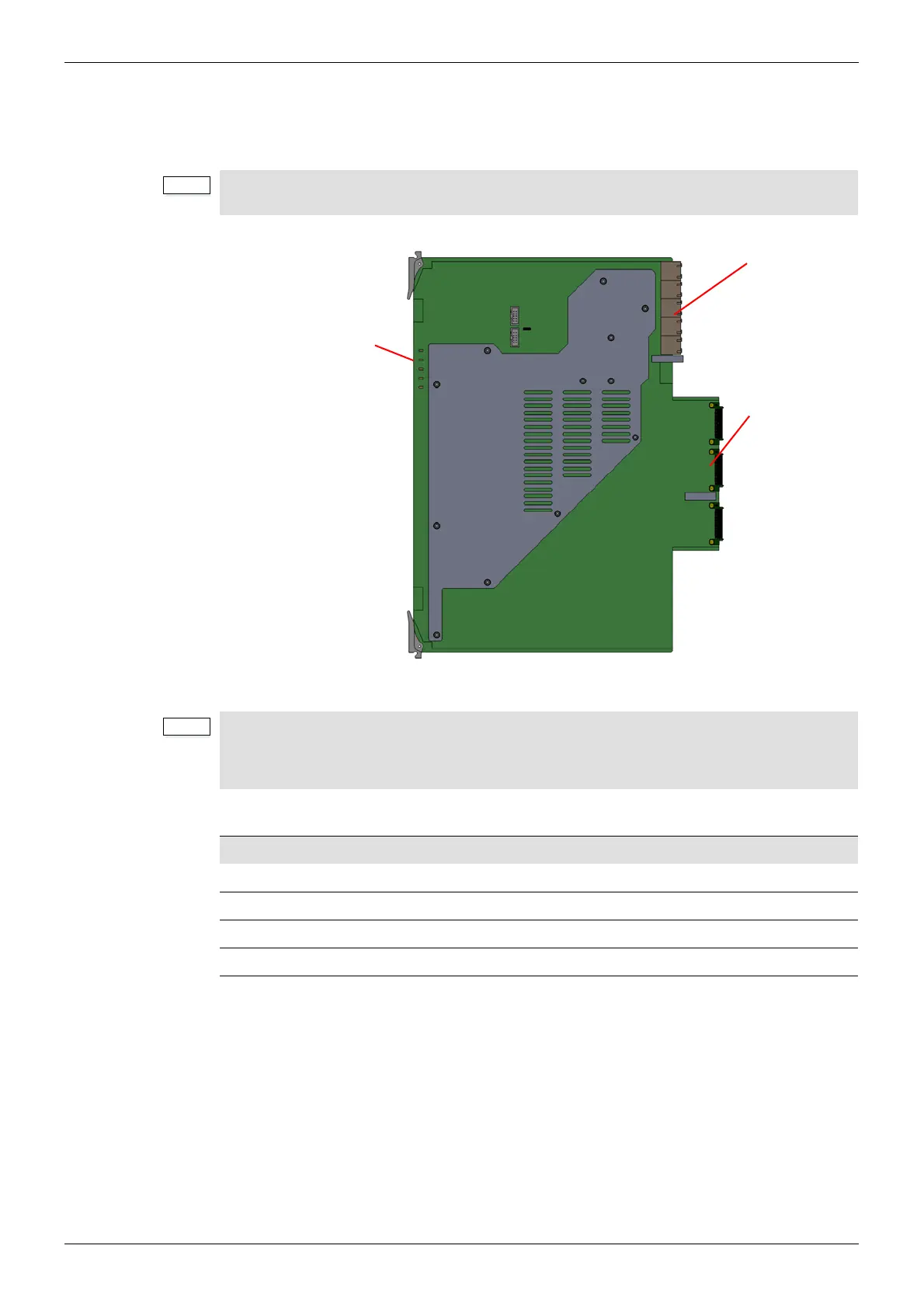

Figure 118 5926Sirius 800 Standard Video Output Module (Non Expandable)
• Jumpers and Headers are present on the video output module and these are for
SAM Use Only.
• In normal operation no jumper links or headers are fitted.
Rear Panel See Section
1294 BNC rear panel see section 11.4
1363 HD BNC rear panel see section 11.5
1302 Fiber rear panel see section 11.6
1364 DS-Link rear panel see section 11.7
Table 41 5926 Rear Panel Compatibility
Connectors
to the
Motherboard
Connectors
to the 1294,
1363, 1302
or 1364 Rear
Panels
LEDs
To Next Page
