Sirius 800 Series User Manual 1364 Sirius 800 Video DS-Link Output Rear Panel Output Modules and Rear Panels 11.7
Iss 5 Rev 7 Page 199 © 2017 SAM
11.7 1364 Sirius 800 Video DS-Link Output Rear Panel
The 1364 Sirius 800 video DS-Link output rear panel has 3 DS-Link outputs and 3 DS-Link
expansion inputs.
The 1364 rear panel is used with the 5949/5925 video output module (24 channel video with
audio embedder, re-clocking and AHP) and the 5926/5938 video output module (24 channel
video with re-clocking).
The DS-Link output connectors can be used to output signals to external SAM IQ modular
products or to expand a Sirius 850 system above 1152
2
(future enhancement).
The DS-Link expansion input connectors are used to expand a Sirius 850 system 1152
2
, see
section 12
All the signal outputs on the output rear panel have SAM's unique Catsii feature.
See section 6 for details of the Catsii functionality.
• DS-Link to DS-Link Cable - 6 metre: Order Code FGAEY WDS6THIN
Cable kit consists of 1 x 6 metre (19 Feet) DS-Link to DS-Link cable.
• DS-Link to DS-Link Cable - 12 meter: Order Code FGAEY WDS12THICK
Cable kit consists of 1 x 12 metre (39 Feet) DS-Link to DS-Link cable.

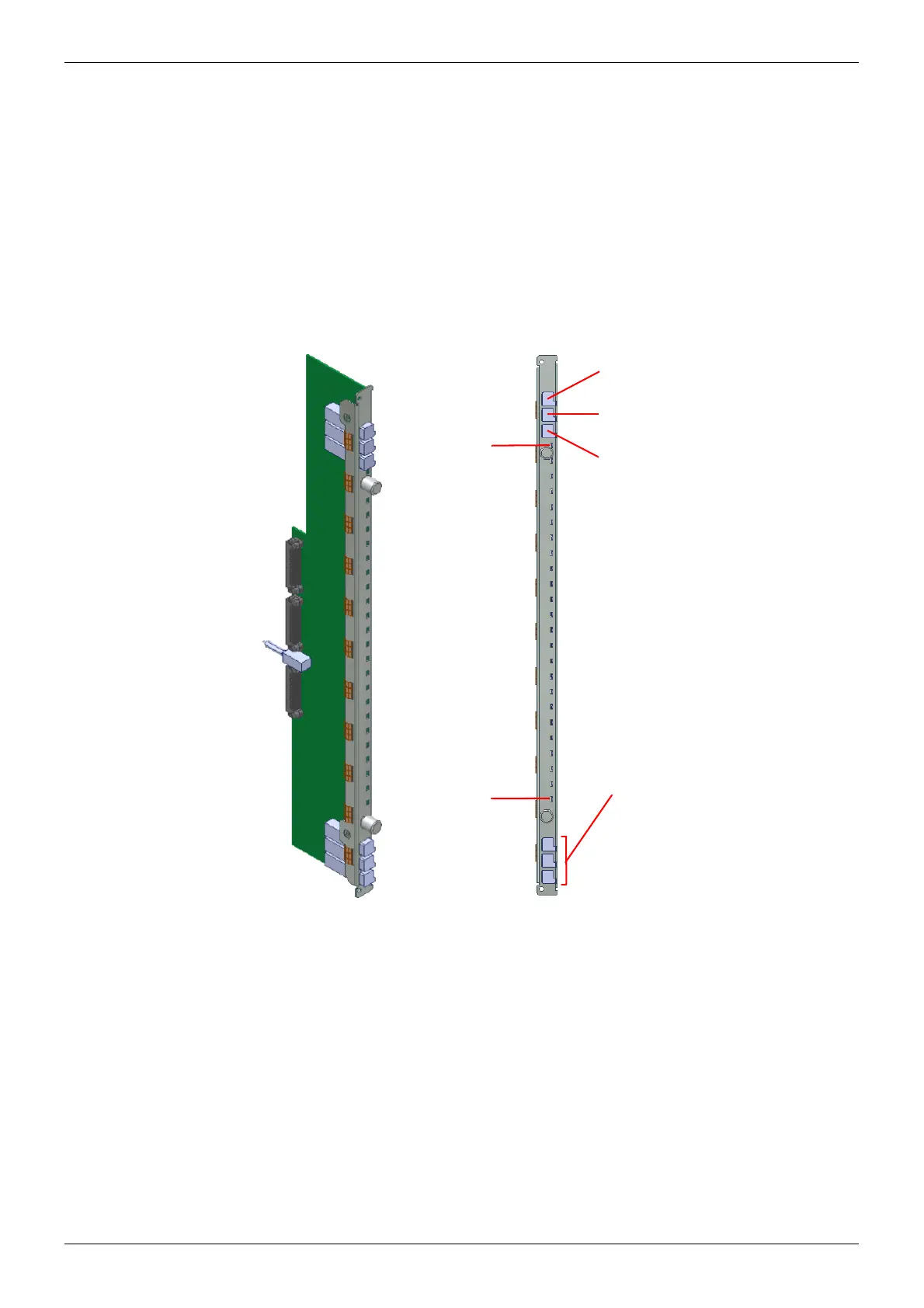

Figure 129 1364 Sirius 800 Video DS-Link Output Rear Panel
Sirius 850 Expansion Input
Connectors:
a
b
c
Not Used with
5926 modules
DS-Link output H OUT
Video channels 1 to 8
Catsii 24
Catsii 1
DS-Link output J OUT
Video channels 9 to 16
DS-Link output K OUT
Video channels 17 to 24
