Sirius 800 Series User Manual 1366 Sirius 850 Video HD BNC Output Rear Sirius 850: Video and Audio Expansion 12.7
Iss 5 Rev 7 Page 224 © 2017 SAM
12.7 1366 Sirius 850 Video HD BNC Output Rear
The 1366 Sirius 850 Video HD BNC Output rear panel has 24 x HD BNC connectors.
The output from the 5928 expansion output module is via the 1366 24 Channel Expansion
Output Rear Panel. When 1366 cards are fitted to a Sirius 850 it is then a single frame
576 x 1152 router with no further expansion capability.
• Earlier Sirius 850 routers used the 1293 video DIN 1.0/2.3 output rear panel, see
appendix C.7.1.
• The 1366 Sirius 850 video HD BNC output rear panel is not a direct replacement
for the 1293 because the 1366 is fitted with HD BNC connectors. The 1293 is fitted
with DIN 1.0/2.3 connectors.
• The 1293 rear panel is no longer supplied with new systems but is available as a
spares replacement if required.

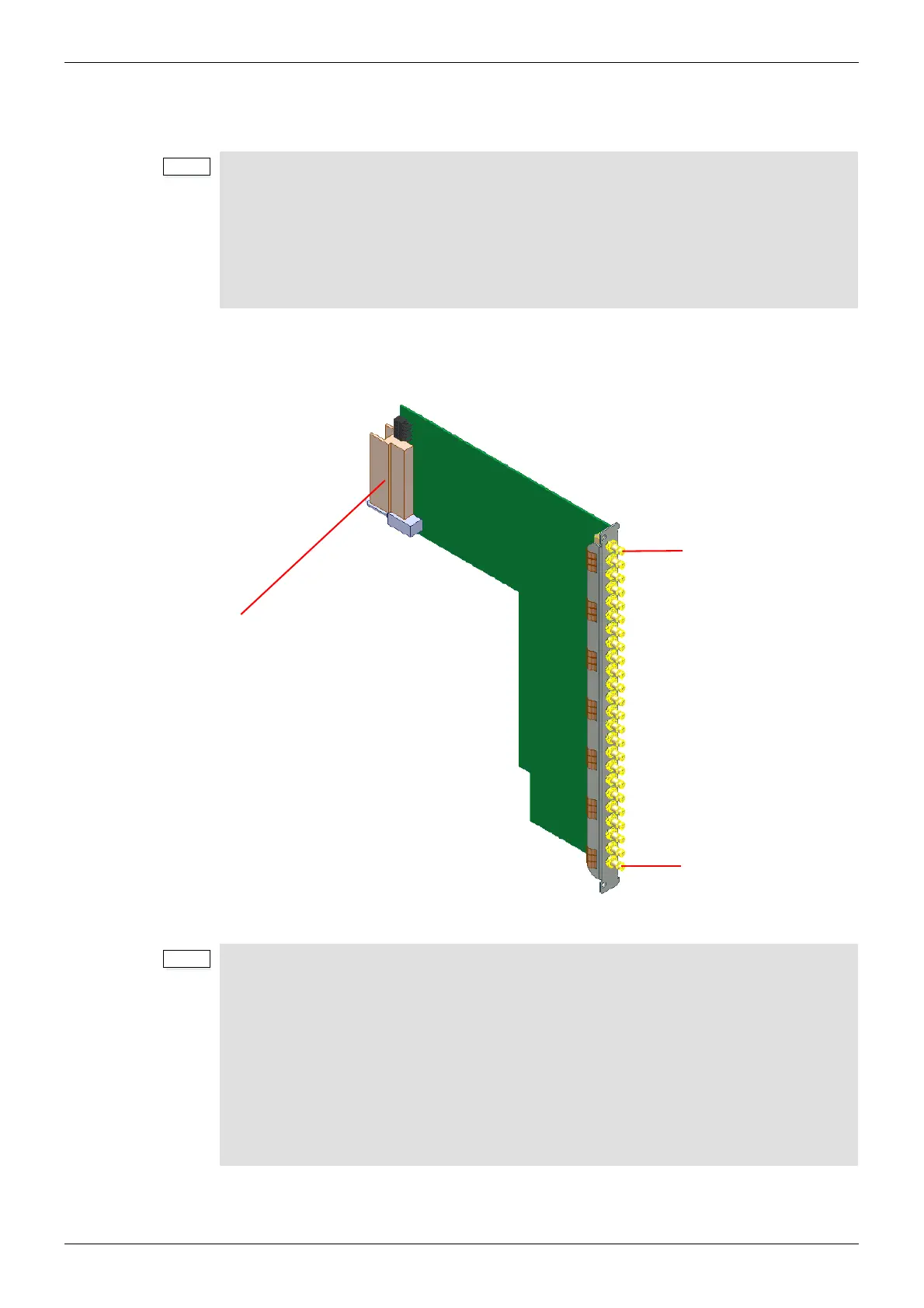

Figure 148 1366 24 Channel Expansion Output Rear Panel
s
• It is not possible to mix the 1365/1290 and 1366/1293 Output Rear Panels in a
frame.
• 1366 and 1293 rear panels can be mixed if required.
• It is not possible to monitor the 1366 expansion outputs.
• The 1366 expansion output rear panels are not fitted with Catsii LEDs.
• A second Sirius 850 frame cannot be used if one or more 1366 Output Rear Panels
are fitted in a frame.
• If a second Sirius 850 frame is required at a future date all 1366 rear panels must
be removed and replaced with 1365 expansion rear panels.
Connects to 5928
Expansion Output Module
Video Output 1
Video Output 24
