11.11 1356 Unbalanced AES Output Rear with MADI Outputs
1356 Sirius 800 Unbalanced AES Output Rear Panel with MADI Outputs:
The 1356 Sirius 800 balanced AES output rear panel has 5 x 62 way female high density
sockets for balanced AES audio outputs and HD BNC connectors for up to 3 MADI outputs.
The 1356 rear panel is used with the 4929/4925 120 channel AES/MADI output module. For
the wiring details for the 62 way D-Type sockets see section 11.11.1 and for details of the
MADI inputs see section 11.12.
Note:
If balanced AES outputs are required see section 11.10 for details.

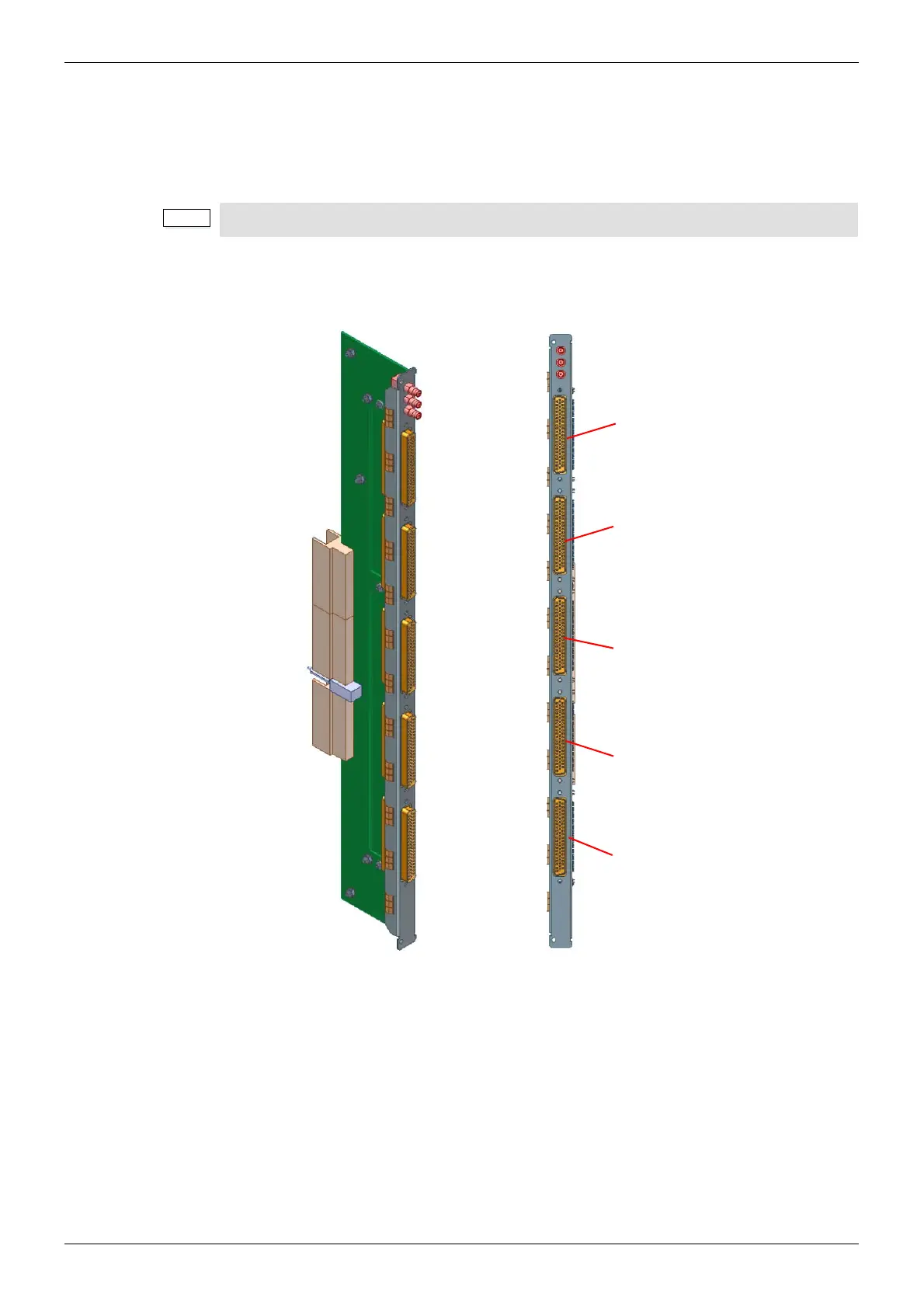

Figure 134 1356 Sirius 800 Unbalanced AES Output Rear Panel
Sockets 1
Outputs 1 to 24
Sockets 2
Outputs 25 to 48
Sockets 3
Outputs 49 to 72
Sockets 4
Outputs 73 to 96
Sockets 5
Outputs 97 to 120
