9.15.3 62 Way High Density Unbalanced AES Socket Pin Outs

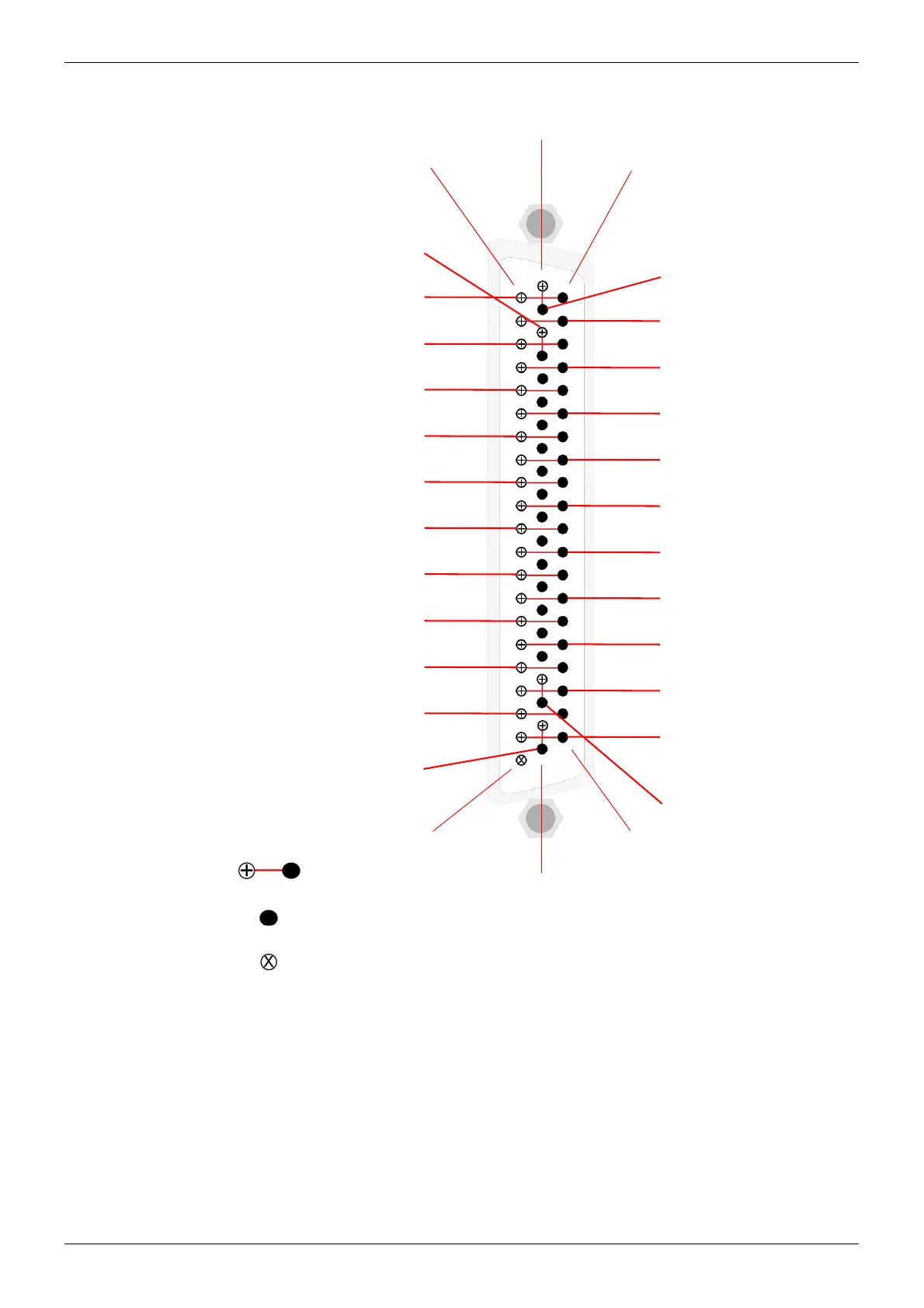

Figure 89 Unbalanced AES Rear Panel 62 Way High Density Socket
(Viewed from the Rear of the Router)
1
21
43
62
42
22
AES stereo pair Groupings
ALL other pins (GND/Chassis)
AES Unbalanced Input
3, 27, 51, 75 or 99
AES Unbalanced Input
4, 28, 52, 76 or 100
AES Unbalanced Input
5, 29, 53, 77 or 101
AES Unbalanced Input
6, 30, 54, 78 or 102
AES Unbalanced Input
7, 31, 55, 79 or 103
AES Unbalanced Input
8, 32, 56, 80 or 104
AES Unbalanced Input
9, 33, 57, 81 or 105
AES Unbalanced Input
10, 34, 58, 82 or 106
AES Unbalanced Input
11, 35, 59, 83 or 107
AES Unbalanced Input
12, 36, 60, 84 or 108
AES Unbalanced Input
13, 37, 61, 85 or 109
AES Unbalanced Input
14, 38, 62, 86 or 110
AES Unbalanced Input
15, 39, 63, 87 or 111
AES Unbalanced Input
16, 40, 64, 88 or 112
AES Unbalanced Input
17, 41, 65, 89 or 113
AES Unbalanced Input
18, 42, 66, 90 or 114
AES Unbalanced Input
19,43, 67, 91 or 115
AES Unbalanced Input
20, 44, 68, 92 or 116
AES Unbalanced Input
21, 45, 69, 93 or 117
AES Unbalanced Input
22, 46, 70, 94 or 118
AES Unbalanced Input
23,47, 71, 95 or 119
AES Unbalanced Input
2, 26, 50, 74 or 98
AES Unbalanced Input
1, 25, 49, 73 or 97
AES Unbalanced Input
24, 48, 72, 96 or 120
+
GND
Not Connected
