8.2 Sirius 830
8.2.1 Sirius 830 Module Locations
The Sirius 830 architecture allows different formats to be configured, up to 288 x 288 video
channels and up to 9216 x 9216 audio channels (depending on configuration) in a single
15RU frame.
see section 8.1 for details on which rear panels that can be used with which front module.

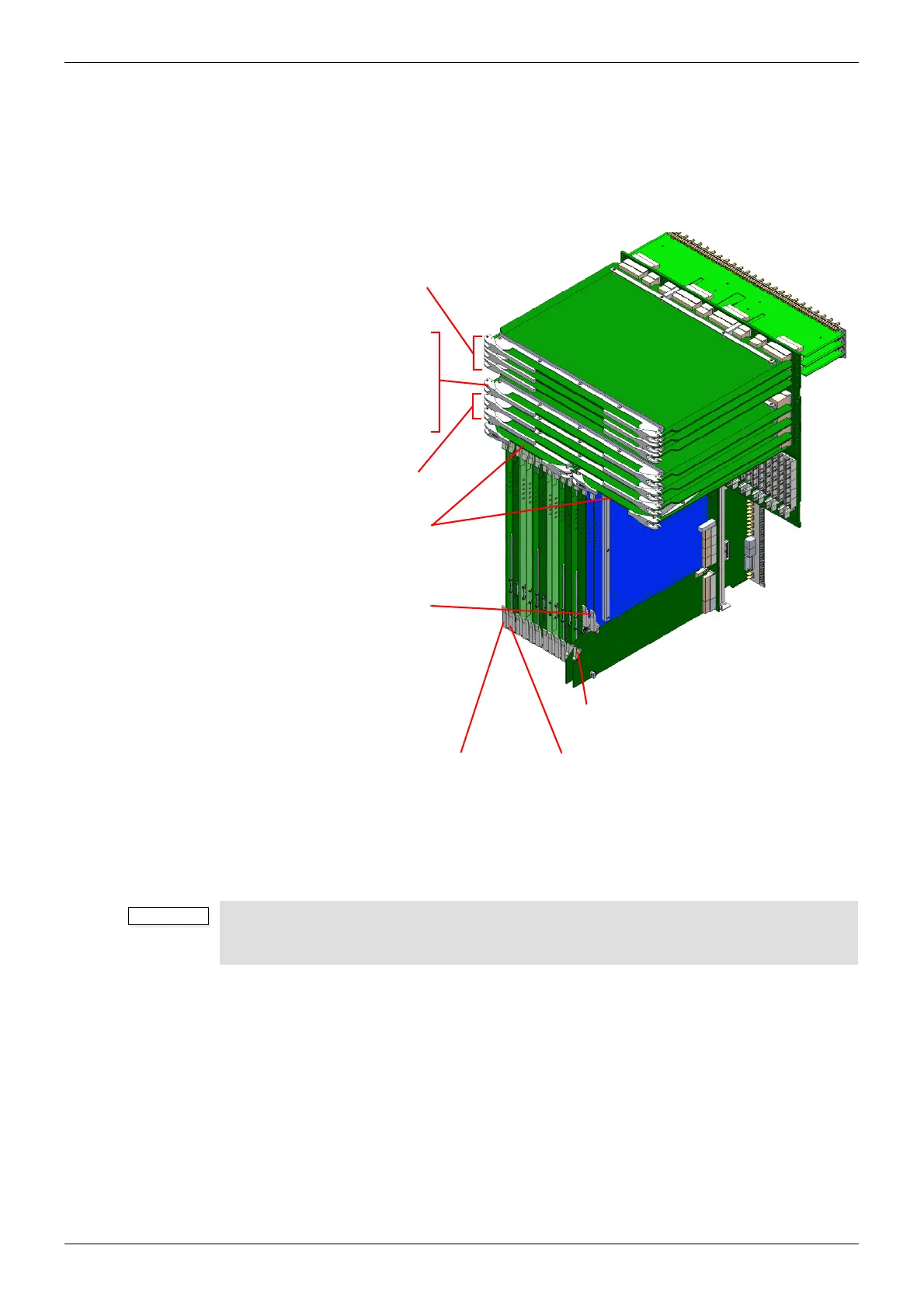

Figure 54 Sirius 830 Front Module Locations
Important:
*Early Sirius 830 routers must be modified by SAM before they can be used for audio
routing and processing (4915, 5919, 4929, 5949, 4925, 5915, 5925 or 5903 modules in
use). see section 3.13 to check if the router needs modifying.
5902 Multiviewer Crosspoint
Module, see section 13.2.1
or
5939 Input/Output Monitoring
Module, see section 13.2.2
5931 External Multiviewer
Output Modules, see section
5901/5 Video Crosspoint
Modules, see section 10.1
2453, 2455* or 2457* (blue)
Fan-out Control Modules x 1
or 2, see section 15
2450 (Nucleus) or 2464/2463* (Nucleus2)
Control Modules x 1 or 2, see section 14
12 Input slots, populated with any
combination of the following modules:
*4915/5917/5919/5915/5916
see section 9
12 Output slots, populated with any
combination of the following modules:
*4929/5926/5949/4925/5925/5937
see section 11
*5903 Audio Crosspoint
Modules, see section 10.5
