Sirius 800 Series User Manual 5949 Video Embedding & AHP Output with Delay & Sync Output Modules and Rear Panels 11.3
Iss 5 Rev 7 Page 188 © 2017 SAM
The 5949 video output module is compatible with the rear panels listed in Table 41
11.3.1 Processing on the Output Module
The 5949 video output module can manipulate the audio channels received from the
crosspoint modules before outputting them.
Processing is configured in Workbench. Figure 121 shows the order that the video and audio
processing is applied to the signal.
If any audio channels routed from the audio crosspoints are asynchronous to the video signal
they are being embedded in the output module will use drop/repeat to synchronize the audio
channels with the video signal.
Rear Panel See Section
1294 BNC rear panel see section 11.4
1363 HD BNC rear panel see section 11.5
1302 Fiber rear panel see section 11.6
1364 DS-Link rear panel see section 11.7
Table 43 5949 Rear Panel Compatibility
Video and Audio processing are licensed options and must be purchased for each module
they are used on (see section 3.6 for details).

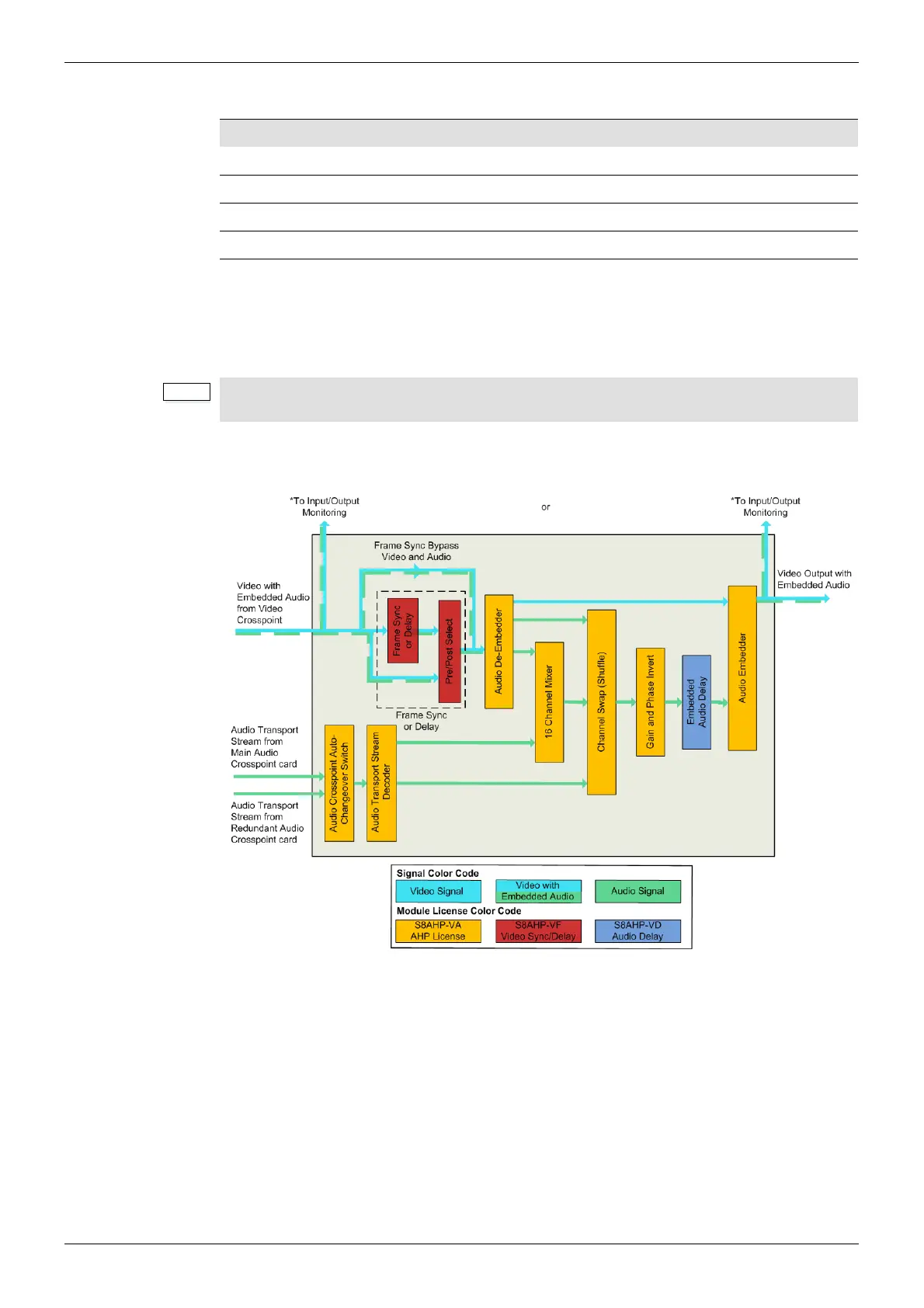

Figure 121 Processing Block Diagram
*Input/Output Monitoring selected from either the input or the output of the module (pre or
post processing). See section 5.6.3 for details on how to configure this using the router
Door PC.
