7 External Control
7.1 Control Panels
The Nucleus controller supports the following control panels:
7.1.1 High Density Button Panels
The high density button panels are configurable as BPX or XY panels and are available as:
• 78 key High density button panel
• 60 key High density panel
7.1.2 Standard Density Panels
The standard density panels are configurable as BPX or XY panels and are available as:
• 42 key Standard density button panel
• 24 key Standard density panel
7.1.3 2RU Dial-up XY Panel
Dial-up XY panel.
7.1.4 2RU Dial-up Multibus (8 Bus) Panels
Range of Dial-up Multibus (8 bus) panels.

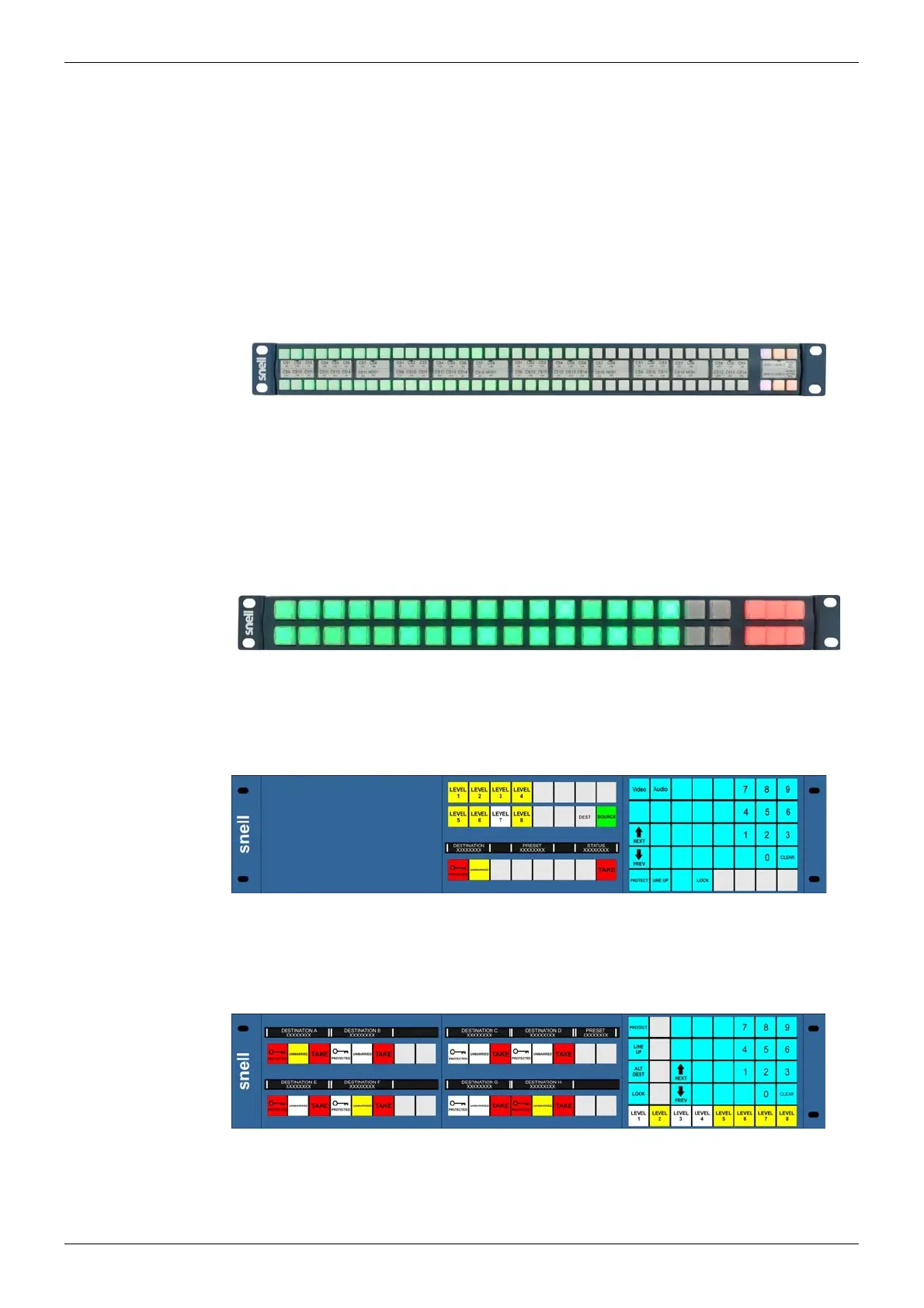

Figure 46 High Density Button Panel
Figure 47 Standard Density Panel
Figure 48 2RU Dial-up XY Panel
Figure 49 2RU Dial-up Multibus (8 bus) Panel
