9.10 Sirius 840/850: 1360 Video HD BNC DS-Link
Sirius 840/850: 1360 Video HD BNC DS-Link Input Rear Panel:
The 1360 video HD BNC DS-Link input rear panels have 24 HD BNC inputs and 3 DS-Link
copy outputs.
The 1360 rear panel is used in the Sirius 840/850 with either the 5919/5915 input module
(24 channel video with de-embedder, re-clocking and AHP) or the 5917 input modules
(24 channel video with re-clocking).
The DS-Link connectors output copies of the HD BNC video input signals which can be used
to loop-through signals to external SAM IQ modular products or to expand a Sirius 850
system above 1152
2
(future enhancement).
All the HD BNC connectors on the 1360 rear panels have SAM's unique Catsii feature that
illuminates above each connector. See section 6 for details of the Catsii functionality.
• DS-Link to DS-Link Cable - 6 metre:
Order Code FGAEY WDS6THIN
Cable kit consists of 1 x 6 metre (19 Feet) DS-Link to DS-Link cable.
• DS-Link to DS-Link Cable - 12 meter:
Order Code FGAEY WDS12THICK
Cable kit consists of 1 x 12 metre (39 Feet) DS-Link to DS-Link cable.

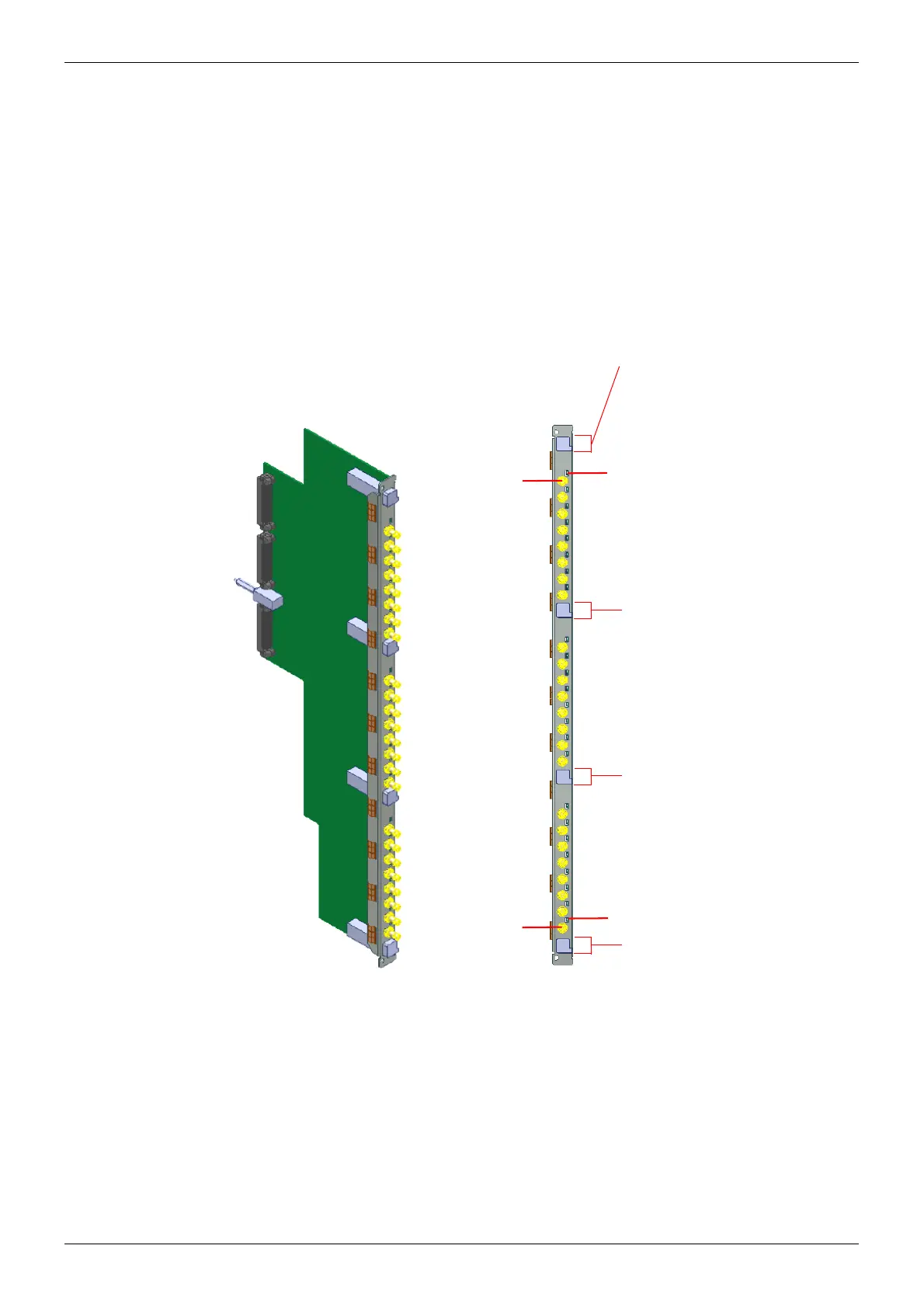

Figure 80 1360 Video Input HD BNC DS-Link Rear Panel (Sirius 840/850 only)
DS-Link output J OUT
Video channels 9 to 16
Video Input 1
Video Input 24
DS-Link output K OUT
Video channels 17 to 24
DS-Link output H OUT
Video channels 1 to 8
Sirius 850 (expanded two frame
system) 5919/5915 only:
Audio Expansion to a second
Sirius 850 frame via a DS-Link
cable, see section 12.8
Catsii 24
Catsii 1
