9.14 Balanced AES Input Rear Panels with MADI Inputs
9.14.1 Sirius 830: 1354 Balanced AES Input Rear Panel with MADI Inputs
The 1354 balanced AES input rear panel has 5 x 62 way female high density sockets for
balanced AES audio inputs and HD BNC connectors for up to 3 MADI inputs.
The 1354 rear panel is used in the Sirius 830 with the 4915 120 channel AES/MADI input
module. For the wiring details for the 62 way D-Type sockets see section 9.14.3 and for
details of the MADI inputs see section 9.16.
Note:
If unbalanced AES inputs are required see section 9.15 for details.

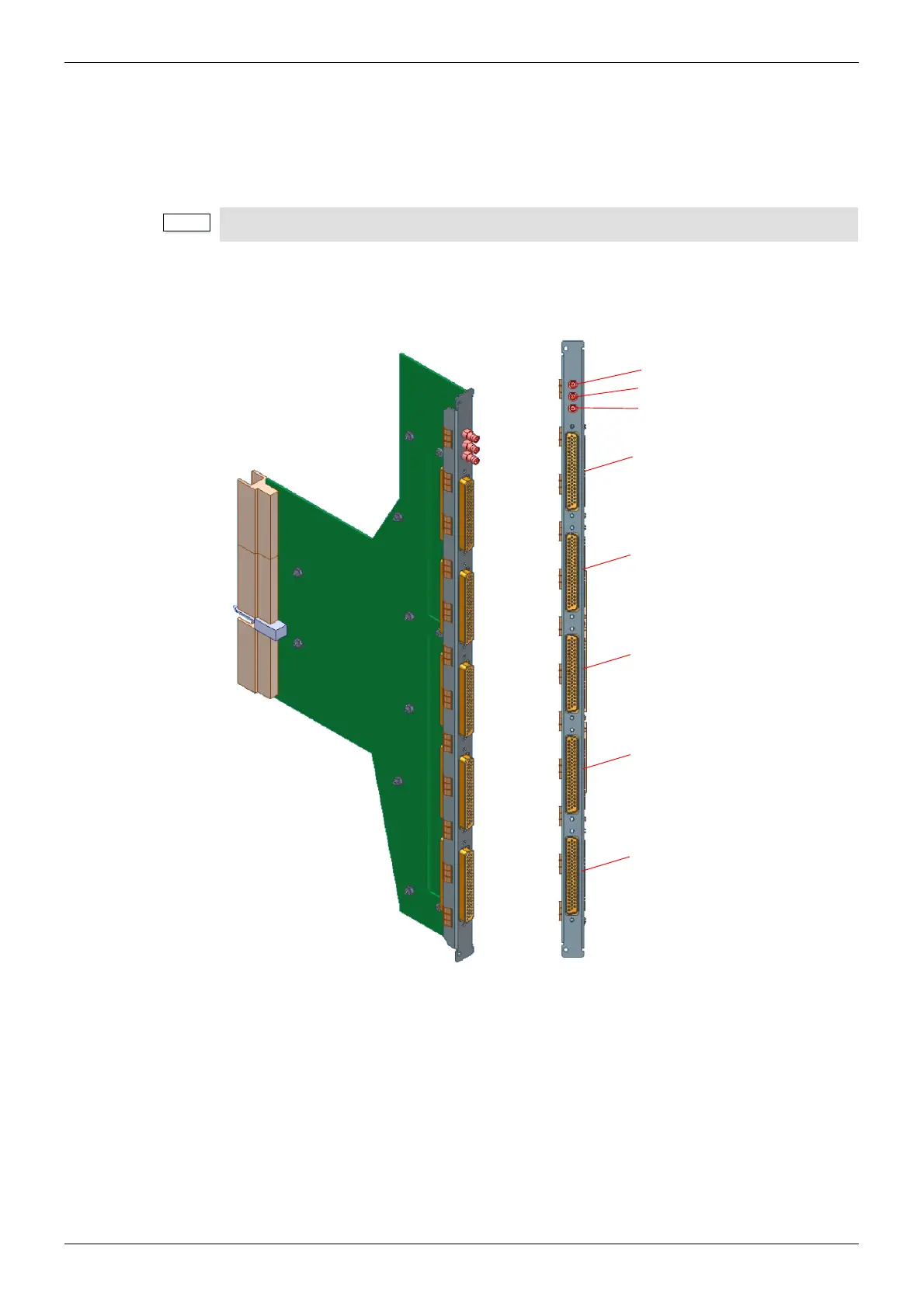

Figure 84 1354 Balanced AES Input Rear Panel (Sirius 830 only)
MADI 3
MADI 2
MADI 1
Socket 1
Inputs 1 to 24
Socket 2
Inputs 25 to 48
Socket 3
Inputs 49 to 72
Socket 4
Inputs 73 to 96
Socket 5
Inputs 97 to 120
see section 9.16 for
details
For the wiring details for the 62 way
D-Type sockets see section 9.14.3
