Sam Sirius 830 - Sirius 840: Output Monitoring Only (no Multiviewer Outputs); Sirius 840: Input;Output Monitoring Only (no Multiviewer Outputs)

Sirius 800 Series User Manual Sirius 840 Monitoring and Multiviewer Multiviewer & Input/Output Monitoring Modules 13.3
Iss 5 Rev 7 Page 232 © 2017 SAM
13.3.3 Sirius 840: Output Monitoring Only (no multiviewer outputs)
• 5933 (qty 1) Output Monitor module
13.3.4 Sirius 840: Input/Output Monitoring Only (no multiviewer outputs)
• 5930 (qty 1) Input Monitor module
• 5933 (qty 1) Output Monitor module

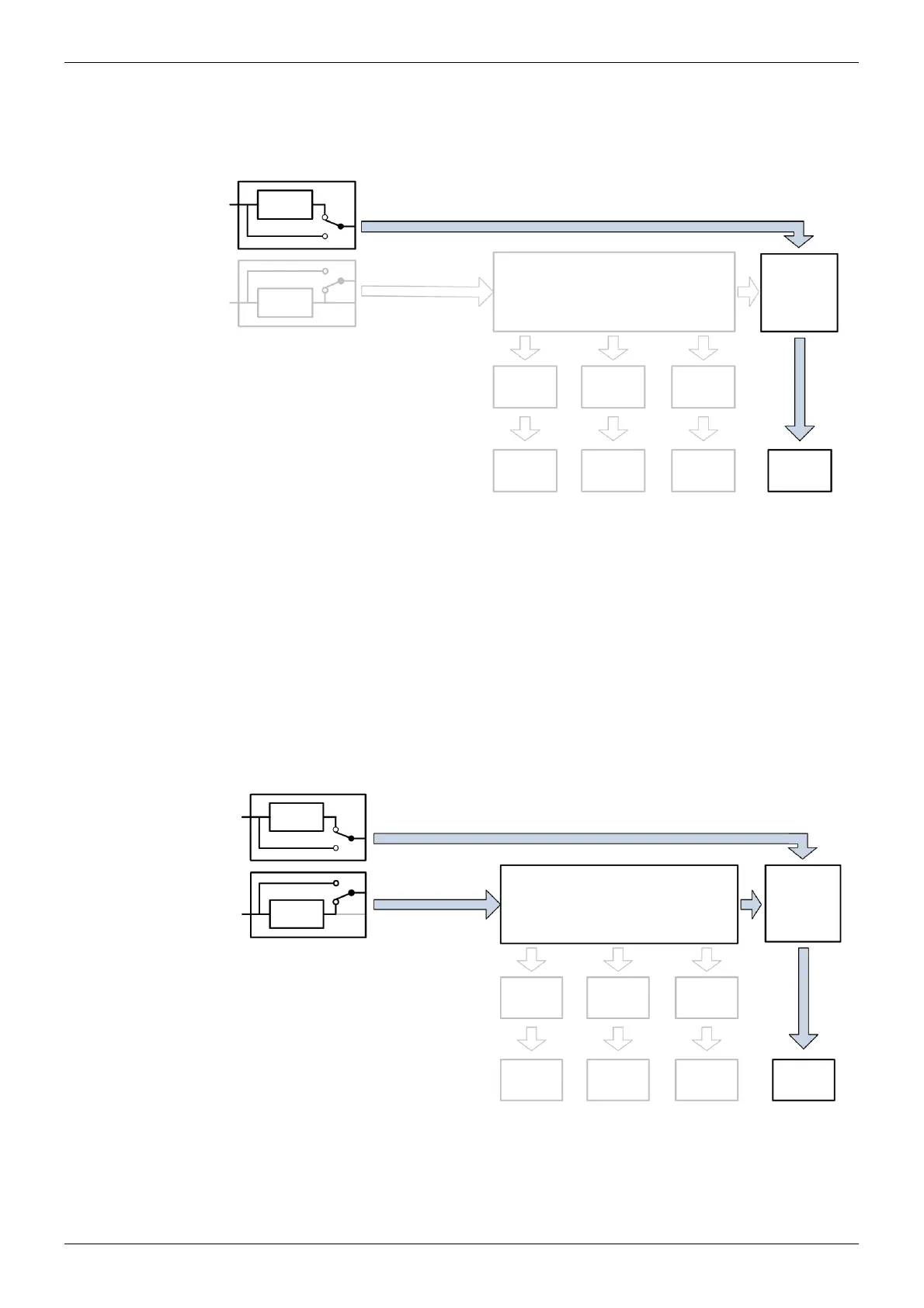

Figure 158 Output Monitoring Only (No Multiviewer outputs) Option (Sirius 840/850)
*Monitor
1 to 4
1 x 5933
See section
13.8.2
**Video/Audio Outputs
*For details of the “Monitor 1 to 4” BNC connections see section 16.2.
**Output Monitoring selected from either the input or the output of the module
(pre or post processing). See section 5.6.3 for details on how to configure this using the
router Door PC.
Process
Figure 159 Input/Output Monitoring Only Option (Sirius 840/850)
*Monitor
1 to 4
1 x 5933
See section
13.8.2
1 x 5930 See section 13.8.1
**Video/Audio Outputs
**Video/Audio Inputs
Process
*For details of the “Monitor 1 to 4” BNC connections see section 16.2.
**Input/Output Monitoring selected from either the input or the output of the module
(pre or post processing). See section 5.6.3 for details on how to configure this using the router
Door PC.
Process
