Sirius 800 Series User Manual 1356 Unbalanced AES Output Rear with MADI Outputs Output Modules and Rear Panels 11.11
Iss 5 Rev 7 Page 209 © 2017 SAM
11.11.2 FGAEY 2502910A: Unbalanced 62 Way AES to BNC Breakout Cable
The optional breakout cable converts a single unbalanced 62 way high density AES
connector to 24 unbalanced AES female BNC connectors.
The breakout cable is optional and not supplied with the AES rear panels. Five cables are
required for all of the AES connectors on each AES rear panel.
59 GND GND GND GND GND
18 20+ 44+ 68+ 92+ 116+
60 GND GND GND GND GND
19 21+ 45+ 69+ 93+ 117+
61 GND GND GND GND GND
20 22+ 46+ 70+ 94+ 118+
62 GND GND GND GND GND
41 23+ 47+ 71+ 95+ 119+
42 GND GND GND GND GND
39 24+ 48+ 72+ 96+ 120+
40 GND GND GND GND GND
21 N/CN/CN/CN/CN/C
26 to 38 Signal GND Signal GND Signal GND Signal GND Signal GND
Pin
Number
Socket 1 AES
Unbalanced
Output
Socket 2 AES
Unbalanced
Output
Socket 3 AES
Unbalanced
Output
Socket 4 AES
Unbalanced
Output
Socket 5 AES
Unbalanced
Output
Table 49 Unbalanced AES Rear Panel 62 Way High Density AES Socket Pin Outs

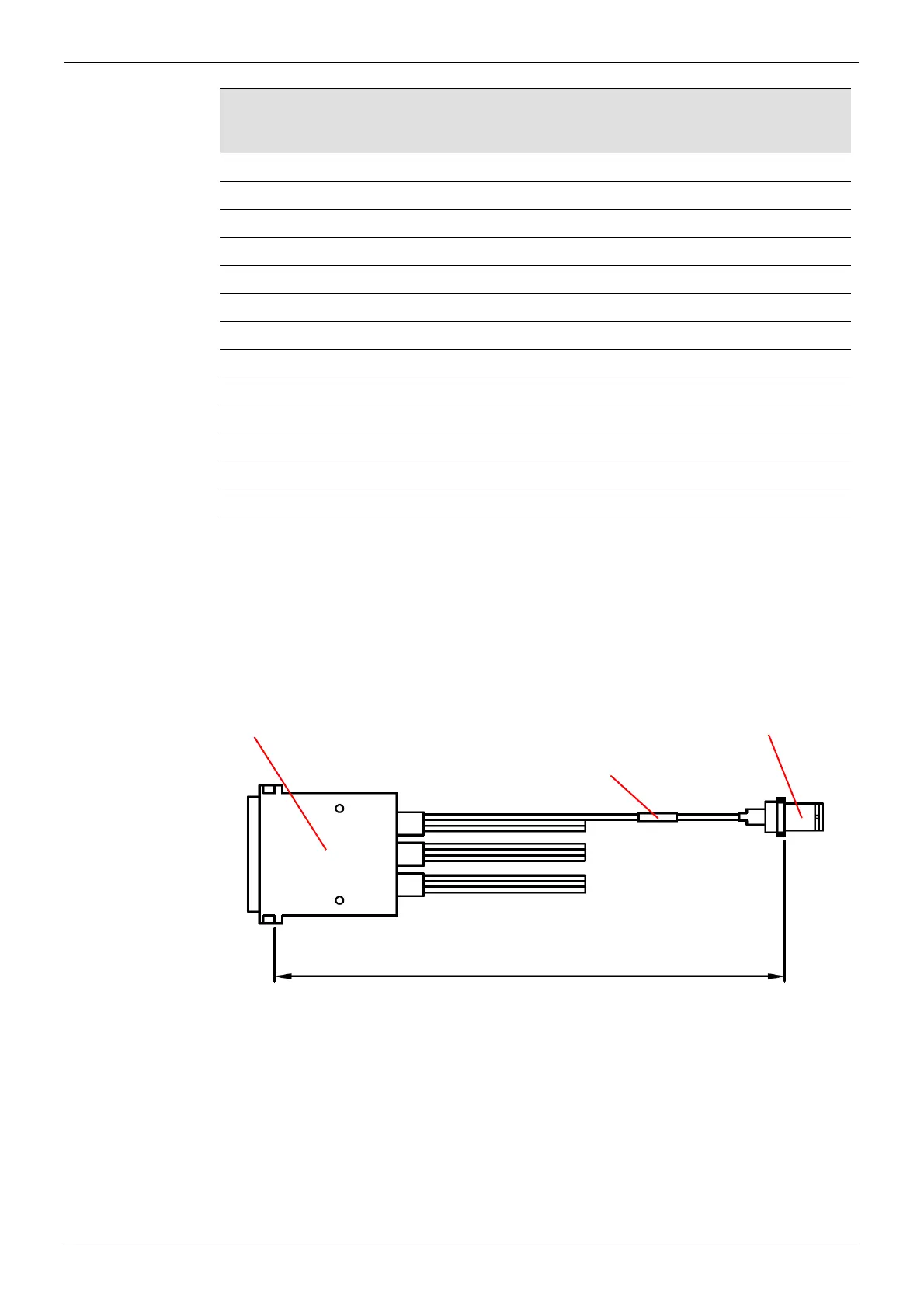

Figure 136 RMYS 2502910A Unbalanced AES Breakout Cable, 62 Way D-Type to 24 BNC
Female
62 Way D-Type High
Density Plug
24 x Female BNC
Connectors
1 Metre (3 Feet 3 Inches)
AES number printed on
sleeve of each cable
