Sirius 800 Series User Manual Multiviewer Modules and Rear Panels Modules No Longer Supplied With New Systems C.6
Iss 5 Rev 7 Page 348 © 2017 SAM
C.6.4 Sirius 850: 1292 MV-Link Rear Panel
The 1292 MV-Link rear panel is no longer supplied and is shown here for users that
already have them fitted.

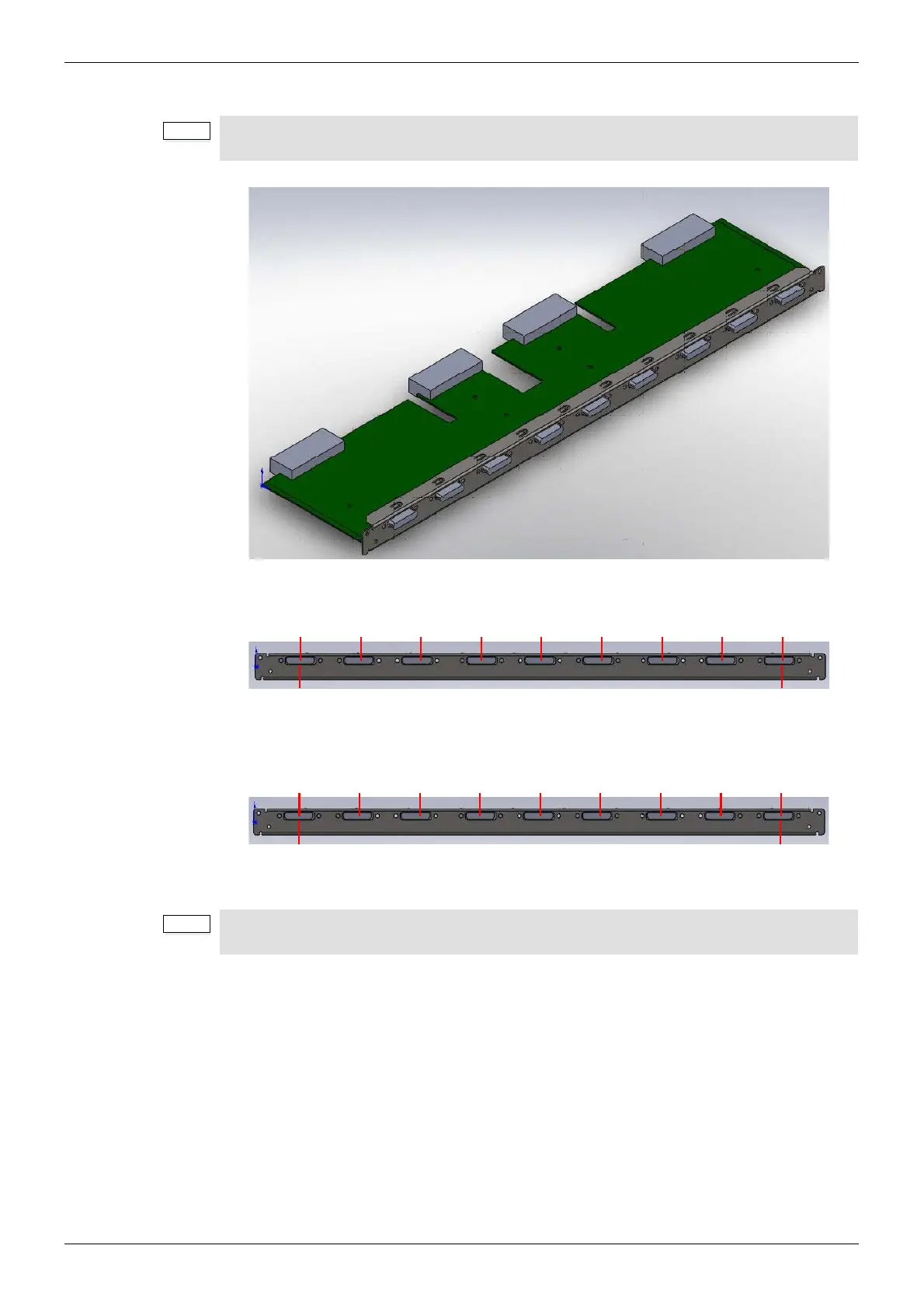

Figure 223 1292 MV-Link Rear Panel
Figure 223 shows that Multiviewer port 18 has only has four outputs, the other four outputs
are not used.
MV9
66-72
If two 1292 rear panels are used then the second rear panel is fitted in
the top multiviewer slot and numbered as follows:
57-64 49-56 41-48 33-40 25-32 17-24 9-16 1-8
MV1
MV18
137-140129-136 121-128 113-120 105-112 97-104 89-96 81-88 73-80
MV10
If one 1292 rear panel is used it is fitted in the bottom multiviewer slot
and numbered as follows:
