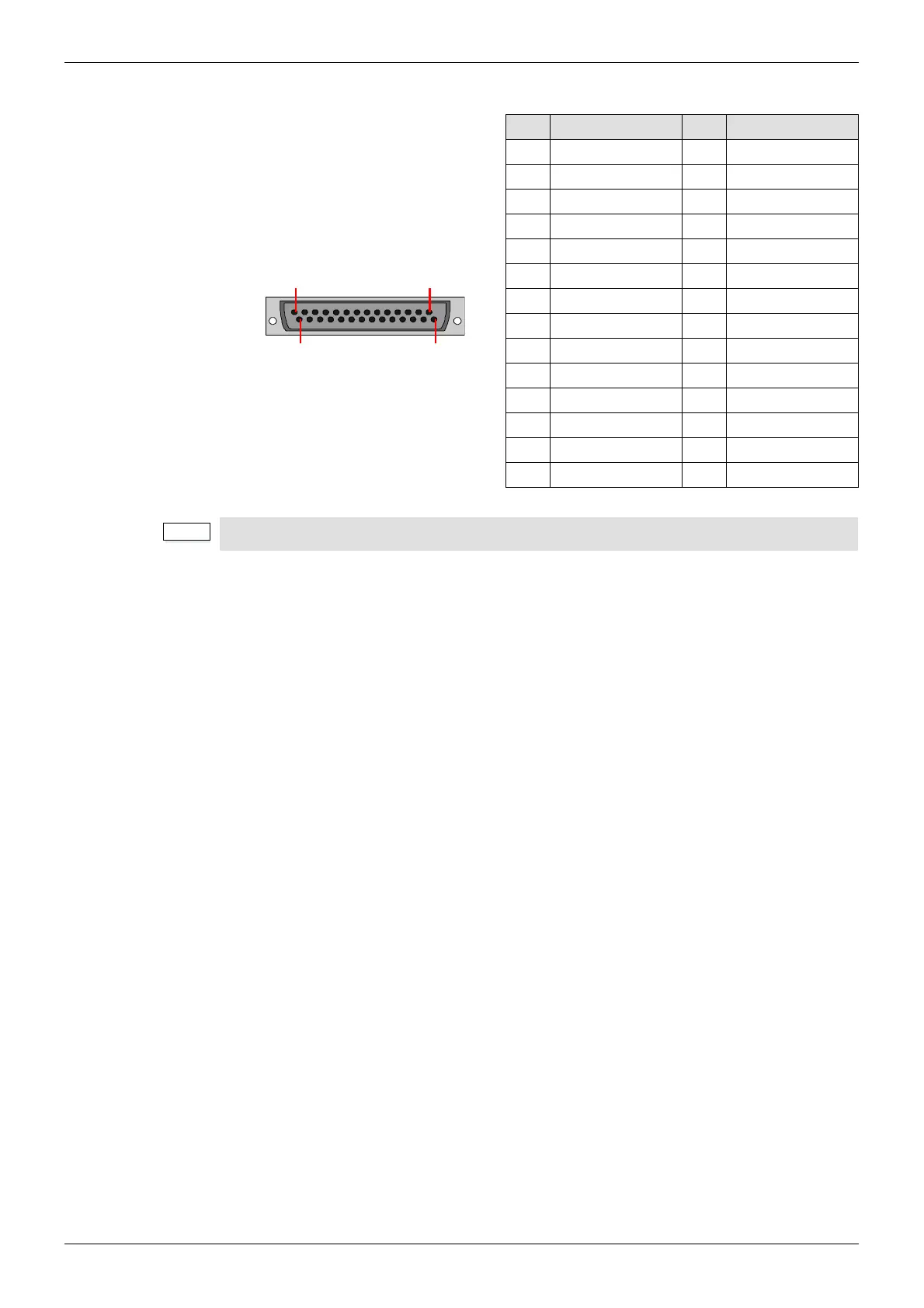

C.6.4.1 Sirius 850: Multiview Link Outputs
Pins Function Pins Function
1 Input [7] + 15 Input [7] Shield
2 Input [7] - 16 Input [8] +
3 Input [8] Shield 17 Input [8] -
4 Input [5] + 18 Input [5] Shield
5 Input [5] - 19 Input [6] +
6 Input [6] Shield 20 Input [6] -
7 Input [3] + 21 Input [3] Shield
8 Input [3] - 22 Input [4] +
9 Input [4] Shield 23 Input [4] -
10 Input [1] + 24 Input [1] Shield
11 Input [1] - 25 Input [7] +
12 Input [2] Shield 26 Input [7] -
13 NC + 27 Shield
14 NC - 28 NC
Table 112 Multiview Link Outputs
Note:
Cables are supplied if MV-Link is ordered, Kaleido must also be ordered with MV-Link.
