Sam Sirius 830 - Sirius 840;850: 1297 Balanced AES Input Rear Panel

Sirius 800 Series User Manual Input Rear Panels Modules No Longer Supplied With New Systems C.1
Iss 5 Rev 7 Page 309 © 2017 SAM
C.1.2 Sirius 840/850: 1297 Balanced AES Input Rear Panel
The 1297 balanced AES input rear panel has 5 x 62 way female high density sockets for
balanced AES audio inputs.
The 1297 rear panel is used in the Sirius 840/850 with the 4915 120 channel AES/MADI input
module. For the wiring details for the 62 way D-Type sockets see section 9.14.3.
Note:
• The 1297 Sirius 840/850 Balanced AES input rear panel was supplied with earlier
Sirius 840/850 router systems and is shown here for users that already have them
fitted.
• The 1352 Sirius 840/850 Balanced AES input rear panel can be supplied as direct
replacement for the 1297 if required. see section 9.14.2 for details of the 1352 rear
panel.
• If unbalanced AES inputs are required see section 9.15.2 for details.

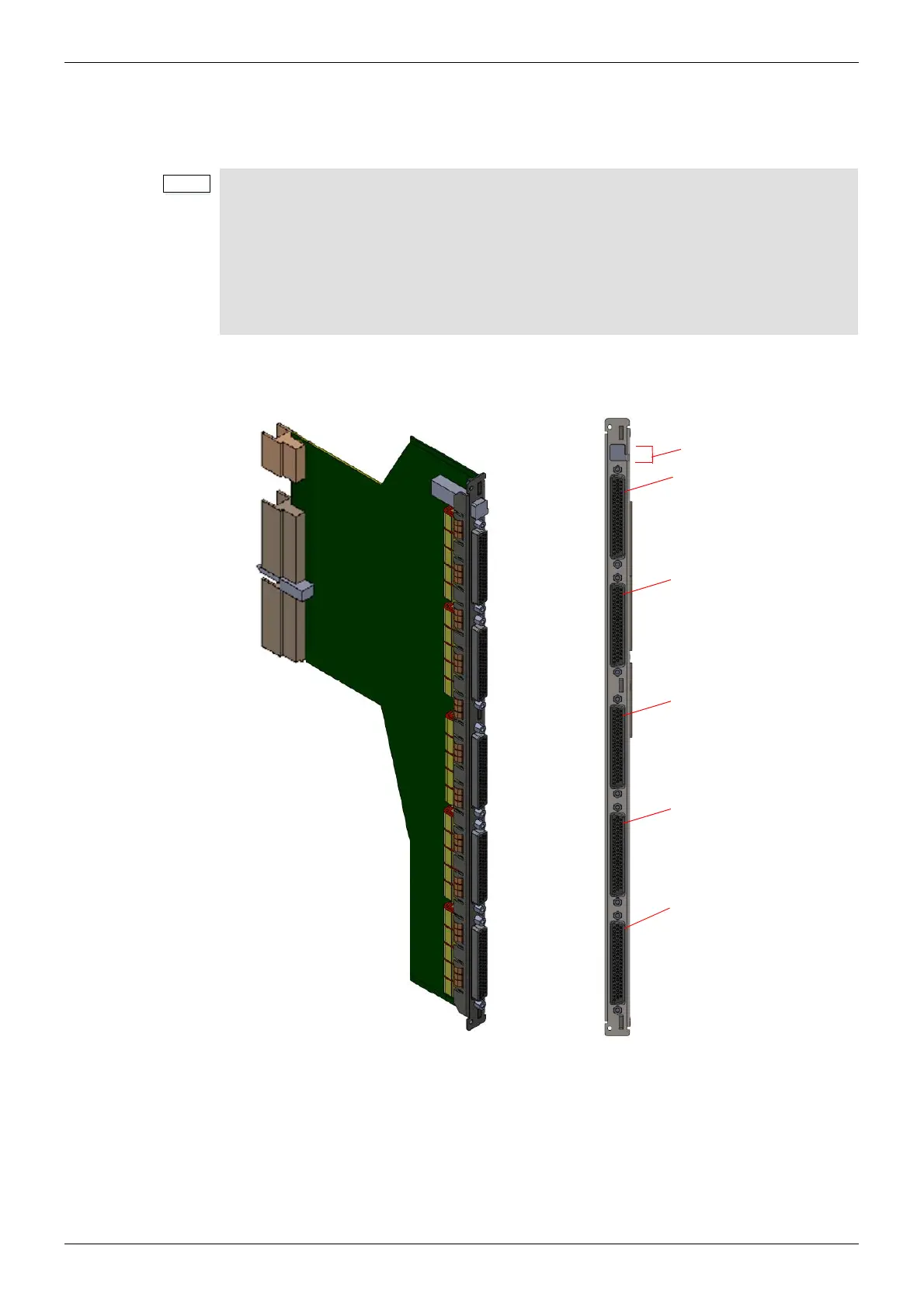

Figure 197 1297 Balanced AES Input Rear Panel (Sirius 840/850 only)
Not Used
Socket 1
Inputs 1 to 24
Socket 2
Inputs 25 to 48
Socket 3
Inputs 49 to 72
Socket 4
Inputs 73 to 96
Socket 5
Inputs 97 to 120
