A.4 Power Supply Shelf Dimensions
The power supply shelf is a separate 2U assembly; Power Supply Shelves are rack
mountable and can be placed above, below or remote from the Sirius Frame.
You must allow at least 250 mm (10 Inches) at the rear of the shelf for cables and connectors.

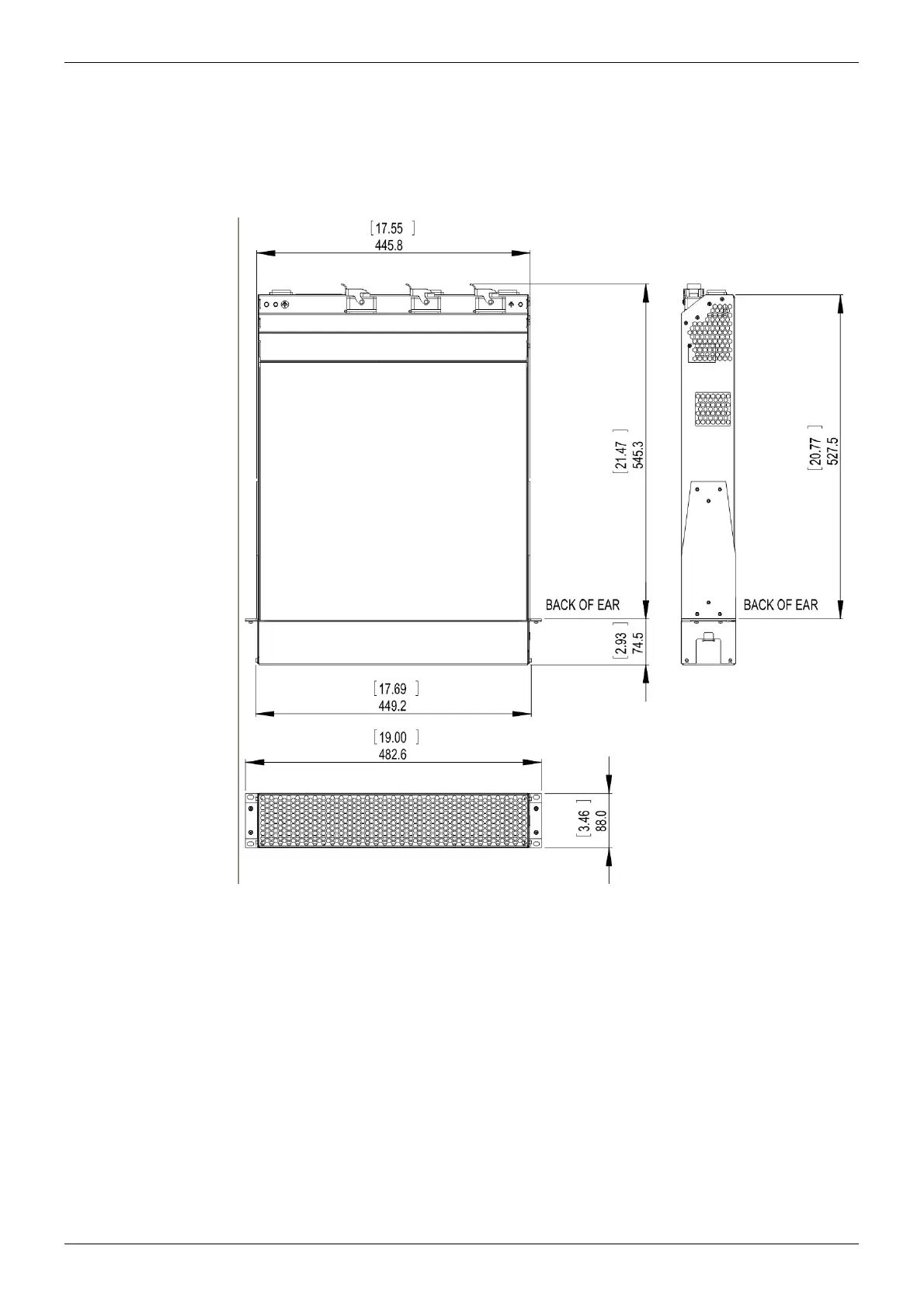

Figure 195 Power Supply Shelf Dimensions
Dimensions are in
millimeters (inches)
