Sirius 800 Series User Manual Sirius 840 Frame Overview Product Overview 3.9
Iss 5 Rev 7 Page 39 © 2017 SAM
3.9.3 Rear Connectors
Figure 14 shows a fully populated Sirius 840 frame with BNC Inputs and Outputs. See
section 8.3 for rear panel input/output connector configuration details.
• For details of the Sirius 840 BNC and Fiber rear connectors see section 8.3.7.
Cables connected to the router must be fitted with adequate vertical and horizontal strain
relief to avoid twisting of the rear panels causing damage to the router connectors and loss
of electrical/signal connection to the router.

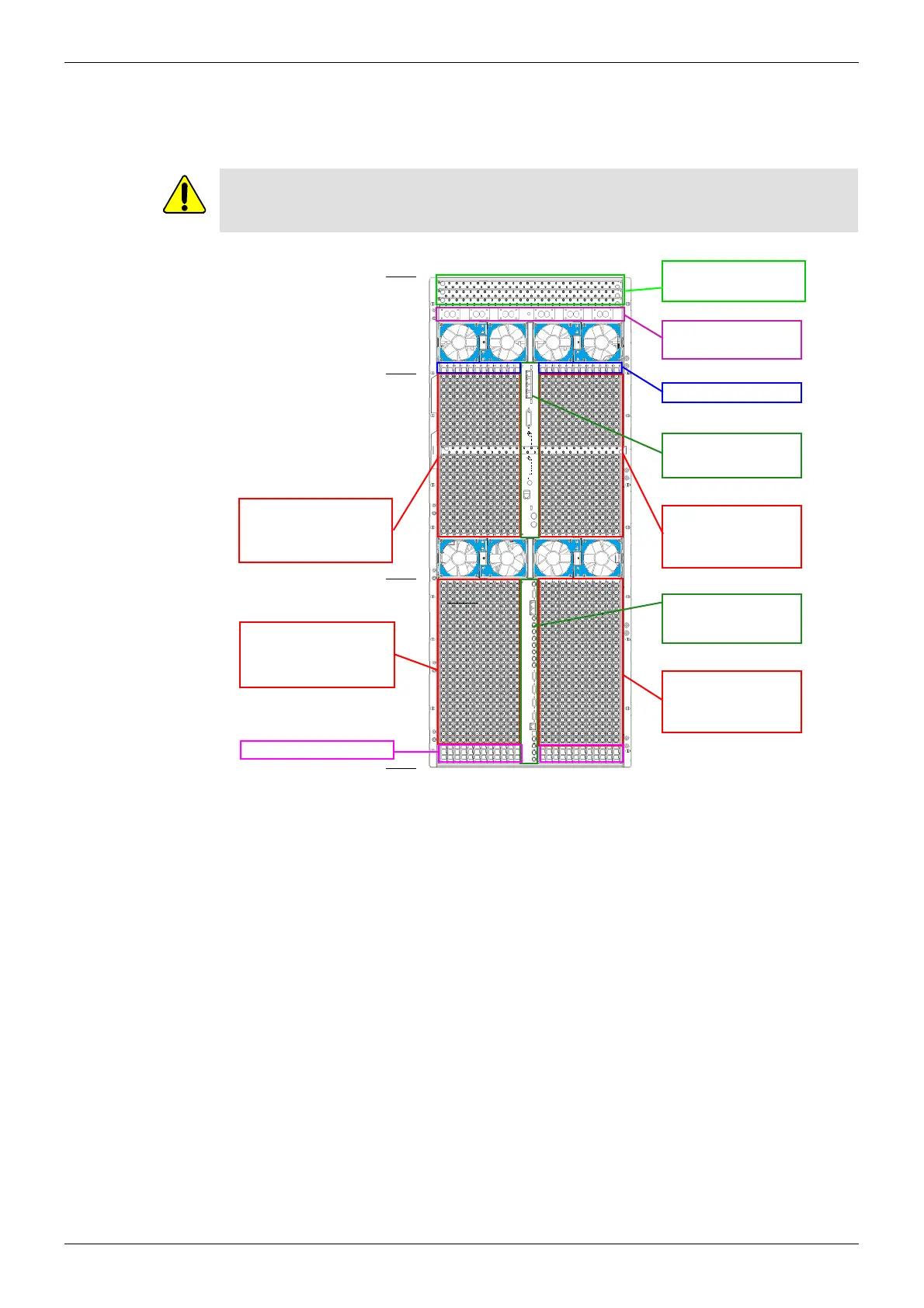

Figure 14 Sirius 840 frame with BNC Input/Output, Rear View
Multiviewer Outputs
see section 13.10
48Vdc Power
Connectors
Not Used
Alarm Rear Panel
see section 16.3
Inputs
Video - 1 to 288
Audio - 1 to 9216
Inputs
Video - 289 to 576
Audio 9217 to 18432
Control Rear Panel
see section 16.2
Outputs
Video - 1 to 288
Audio - 1 to 9216
Outputs
Video - 289 to 576
Audio 9217 to 18432
27RU
22RU
10RU
Not used
