Sirius 800 Series User Manual 5930 Sirius 840/850 I/p & 5933 O/p Monitoring Multiviewer & Input/Output Monitoring Modules 13.8
Iss 5 Rev 7 Page 244 © 2017 SAM
13.8 5930 Sirius 840/850 I/p & 5933 O/p Monitoring
Monitoring can only be used if a 5933 output monitor module is present. This module enables
the four monitor outputs on the Control Rear Panel (see section 16.2) to be routed from any of
the 576 main router outputs or from any input via a 5902 Multiviewer Crosspoint Module or
5930 input monitoring crosspoint module.
13.8.1 5930 Sirius 840/850 Input Monitoring Crosspoint Module
• The 5930 Sirius 840/850 input monitoring crosspoint module must be configured in
Workbench before it can be used. The 5930 module is configured from the Local
Router Hardware tab, Advanced Configuration, Edit Module Configurations...
See the Workbench user manual for module configuration details.
•The Modules Present screen of the Door PC can be used to check that the 5930
module is correctly configured, see section 5.2.2.

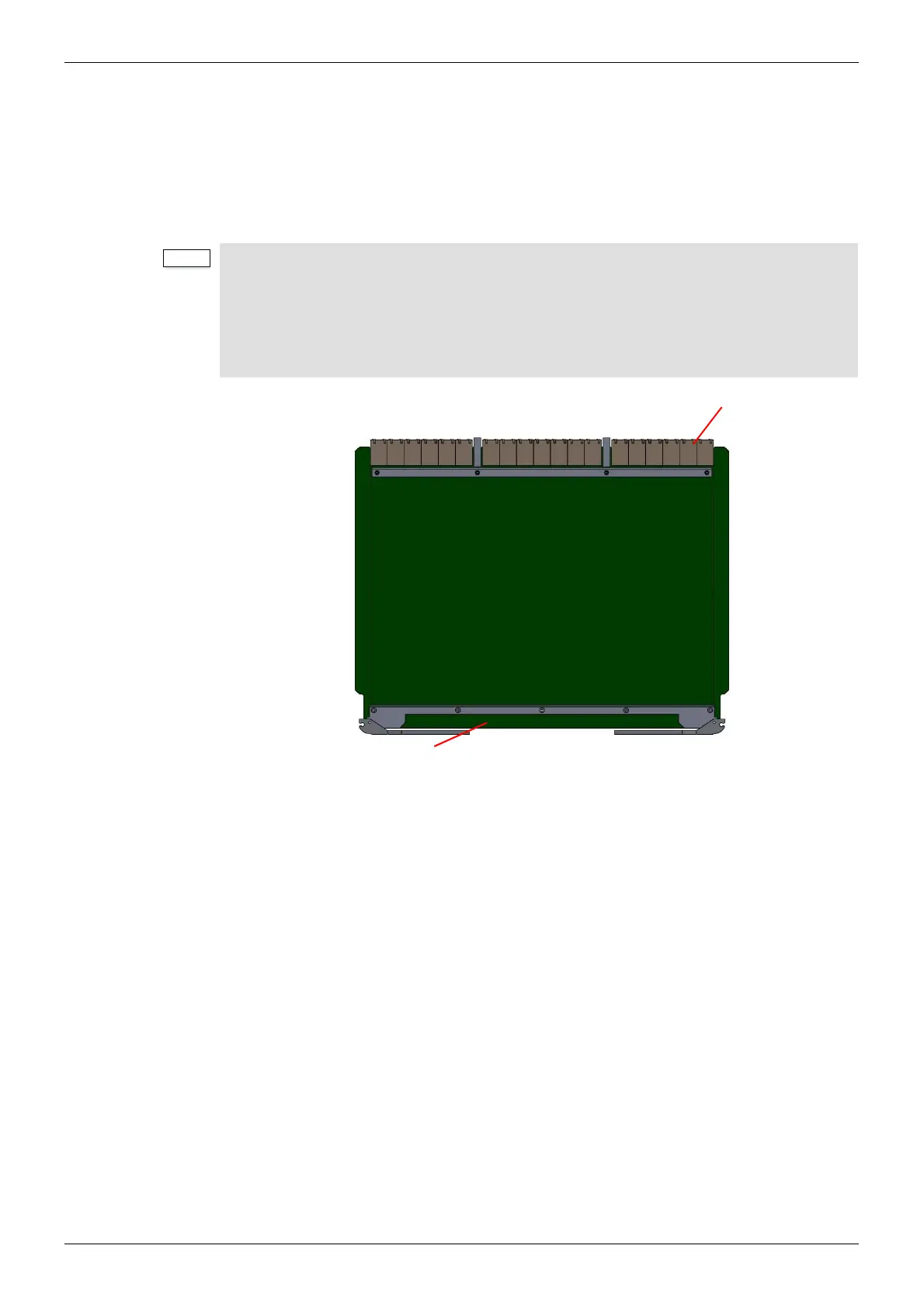

Figure 172 5930 Sirius 840/850 Input Monitoring Crosspoint Module
LEDs
Connectors to
the Motherboard
