Sirius 800 Series User Manual Sirius 840/850 Module Locations 8.3
Iss 5 Rev 7 Page 98 © 2017 SAM
8.3.3 Sirius 850 Module Locations
The Sirius 850 architecture allows different formats to be configured, up to 576 x 576 video
channels and up to 18432 x 18432 audio channels (depending on configuration) in a single
34U frame.
see section 8.1 for details on which rear panels that can be used with which front module.

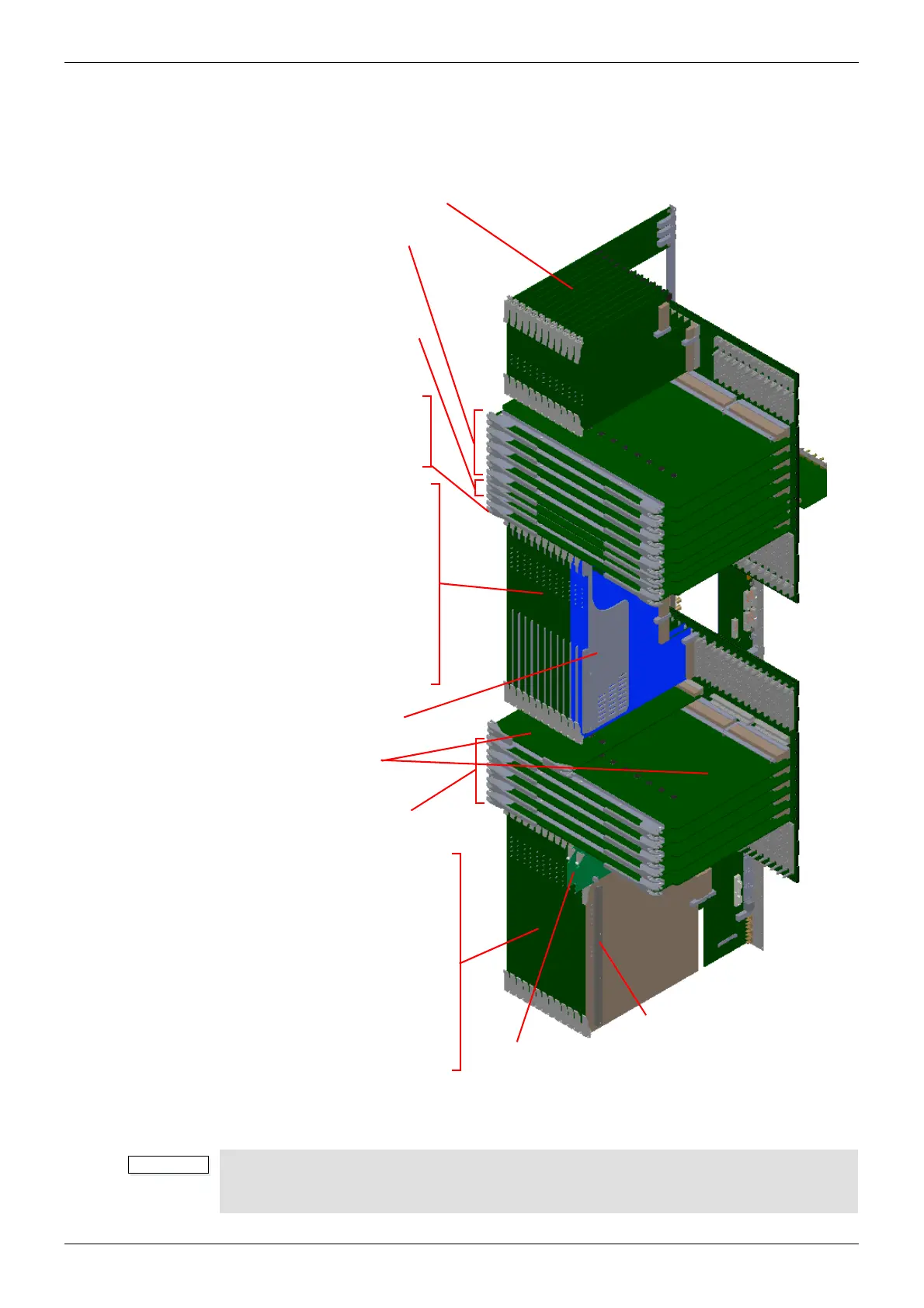

Figure 60 Sirius 850 Front Module Locations
Important:
*Early Sirius 850 routers must be modified by SAM before they can be used for audio
routing and processing (4915, 5919, 4929, 5949, 4925, 5915, 5925 or 5903 modules in
use). see section 3.13 to check if the router needs modifying.
5928 Expansion O/P Modules x 24
5901/5905 Video Crosspoint
Modules up to 5
5931/5932 External
Multiviewer Output Modules
up to 2
5902 Multiviewer Crosspoint
Module x1
or
5930 Input Monitor Module x 1
24 Input slots, populated
with any combination of the
following modules:
4915* Audio Input Modules,
5917 Video Re-clocking Input
Modules
5919* Video Re-clocking,
De-embedder Input Modules,
5913 (BNC), 5914 (Fiber) Video
Re-clocking Input Modules,
5915* Video Re-clocking,
De-embedder Input Modules
5901/5905 Video Crosspoint
Modules up to 5
2450 (Nucleus) or 2464/2463* (Nucleus2)
Control Modules x 1 or 2
24 Output slots, populated
with any combination of the
following modules:
4929* Audio Output Modules,
5926 Video Re-clocking Output
Modules,
5949* Video Re-clocking, Embedder
Output Modules,
4925* Audio Output Modules,
5923 (BNC), 5924 (Fiber) Video
Re-clocking Output Modules,
5925* Video Re-clocking, Embedder
Output Modules
2452, 2456* or 2458* (blue)
Fan-out Control Modules x 1 or 2
5903* Audio Crosspoint
Modules up to 2
5933 O/P Monitor Module
