9.15.2 Sirius 840/850: 1355 Unbalanced AES Input Rear Panel with MADI Inputs
The 1355 unbalanced AES input rear panel has 5 x 62 way female high density sockets for
unbalanced AES audio inputs and HD BNC connectors for up to 3 MADI inputs.
The 1355 rear panel is used in the Sirius 840/850 with the 4915 120 channel AES/MADI input
module. For the wiring details for the 62 way D-Type sockets see section 9.15.3 and for
details of the MADI inputs see section 9.16.
Note:
If balanced AES inputs are required see section 9.14.2 for details.

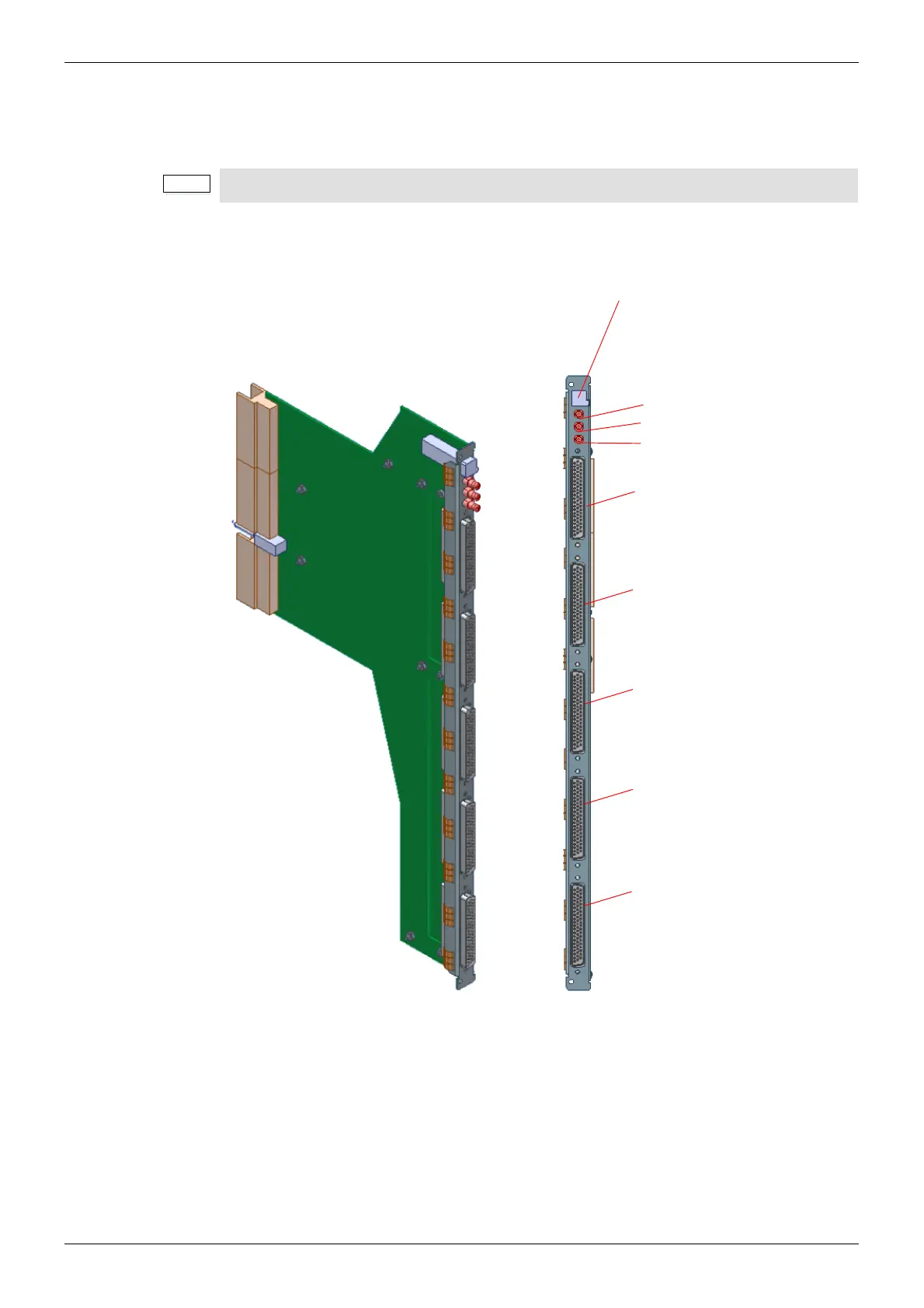

Figure 88 1355 Unbalanced AES Input Rear Panel (Sirius 840/850 only)
MADI 3
MADI 2
MADI 1
Socket 1
Inputs 1 to 24
Socket 2
Inputs 25 to 48
Socket 3
Inputs 49 to 72
Socket 4
Inputs 73 to 96
Socket 5
Inputs 97 to 120
see section 9.16 for
details
For the wiring details for the 62 way
D-Type sockets see section 9.15.3
Sirius 850 (expanded two frame
system) 4915 only:
Audio Expansion to a second
Sirius 850 frame via a DS-Link
cable, see section 12.8
