Sam Sirius 830 - Sirius 840: Multiviewer Outputs and Input;Output Monitoring

Sirius 800 Series User Manual Sirius 840 Monitoring and Multiviewer Multiviewer & Input/Output Monitoring Modules 13.3
Iss 5 Rev 7 Page 231 © 2017 SAM
13.3.2 Sirius 840: Multiviewer Outputs and Input/Output Monitoring
• 5902 (qty 1) Multiviewer Crosspoint module
• 5931 (qty 1 to 3) External Multiviewer Output module(s)
• 1369 (qty 1 to 3) External Multiviewer HD BNC Rear panel(s)
• 5933 (qty 1) Output Monitor module
• MV-800 (qty 1-3) MV-800 Integrated Multiviewer
• MV-800-RP (qty 1-3) MV-800 Rear Panel

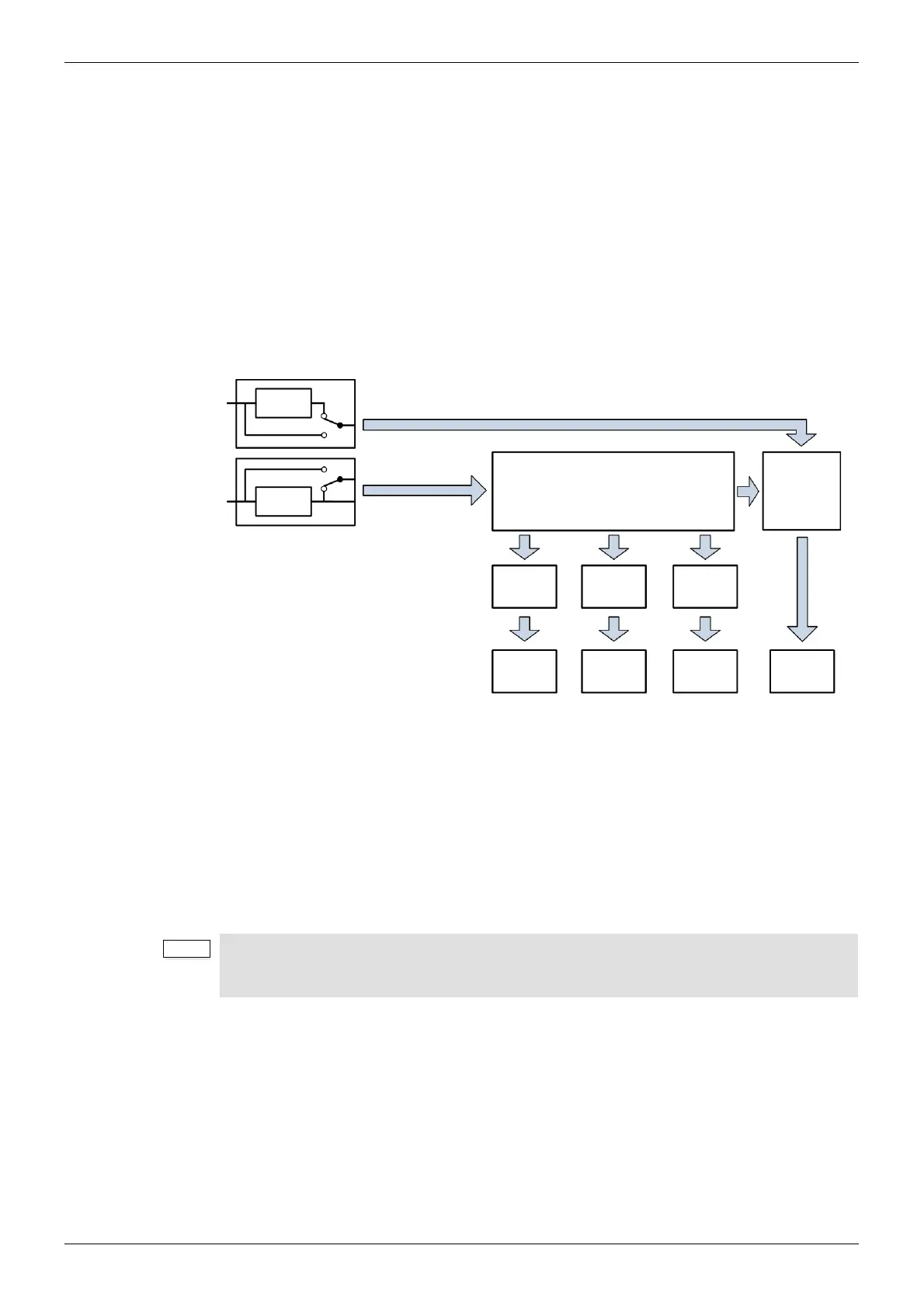

Figure 157Multiviewer Outputs and Input/Output Monitoring Option (Sirius 840)
1 x 5902 Multiviewer Crosspoint
Module, see section 13.5
MV
1 to 48
MV
49 to 96
MV
97 to 140
* Monitor
1 to 4
Up to three 5931 Ext. Multiviewer Output Modules,
(see section 13.6.1)
Up to three MV-800 Integrated Multiviewers
Up to three 1369 Ext. Multiviewer HD BNC Rear Panels,
(see section 13.10)
Up to three MV-800-RP MV-800 Rear Panels
1 x 5933
See section
13.8.2
** Video/Audio Outputs
** Video/Audio
Inputs
Process
* For details of the “Monitor 1 to 4” BNC connections see section 16.2.
** Input/Output Monitoring is selected from either the input or the output of the
module (pre or post processing).
See section 5.6.3 for details on how to configure this using the router Door PC.
Note: Multiviewer signals are always post-processing.
Process
Multiviewer signals
are post processing
5931 /
MV-800
5931 /
MV-800
5931 /
MV-800
Note:
If Input pre-processing is monitored using the monitor outputs then external multiviewer
outputs should not be routed from inputs 1, 3, 5 and 7 of any video input module as they
will display duplicates of the four monitoring outputs.
