13.3.5 Sirius 840: Router Outputs with Multiviewer
• Up to 24-off Sirius Router Output modules and rear panels. See Section 11 "Output
Modules and Rear Panels".
• Up to 12-off MV-850 Integrated Multiviewer with MV-850-RP Rear Panel.

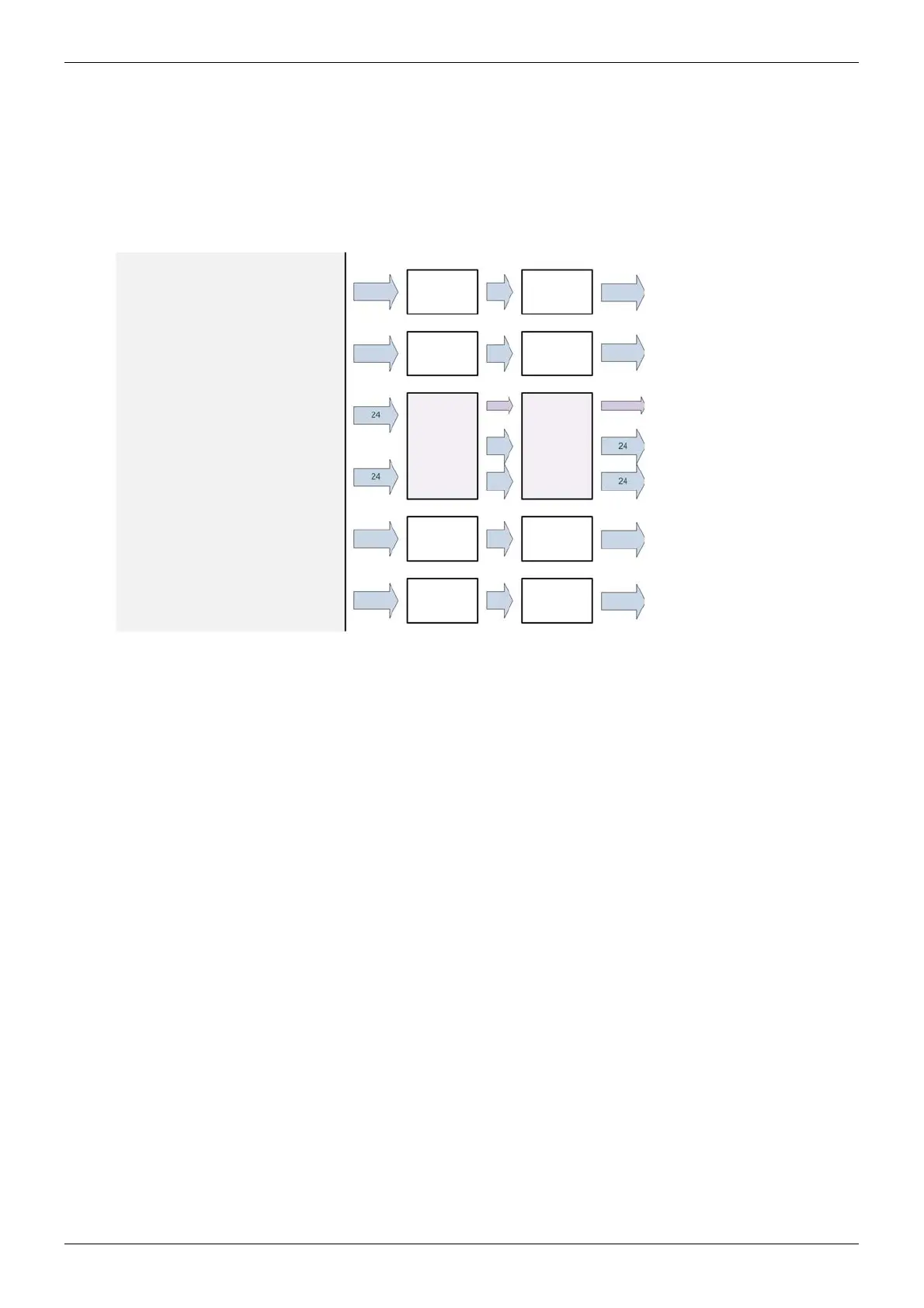

Figure 160MV-850 Multiviewer Monitoring Sirius 840 Router Outputs
Router Outputs
Up to 24 Router Output Modules and Rear Panels,
Up to 12 MV-850 Integrated Multiviewers (MV-850 + MV-850-RP)
MV-850 *
48x Router SDI Video Outputs
Multiviewer Video Wall Output
Router Outputs
Router Outputs
Router Outputs
MV-850-RP *
Output
Module
Output
Rear
Sirius 840
Router Main Crosspoint
* MV-850 and MV-850-RP can be fitted to any pair of adjacent router
output module slots.
