9.9 Sirius 840/850: 1349 & 1289 Video BNC Input Rear Panel
The 1349/1289 video BNC input rear panels have 24 BNC inputs.
The 1349/1289 rear panels are used in the Sirius 840/850 with the 5919/5915 video input
module (24 channel video with de-embedder, re-clocking and AHP) and the 5917 video input
module (24 channel video with re-clocking).
All the BNC connectors on the 1349/1289 rear panels have SAM's unique Catsii feature that
illuminates each connector. See section 6 for details of the Catsii functionality.
• The 1289 rear panel was supplied with earlier Sirius 840/850 router systems and is
shown here for users that already have them fitted.
• On newer systems the 1349 rear panel can be used instead of the 1289 and is
compatible with the same video input modules so is a direct replacement.

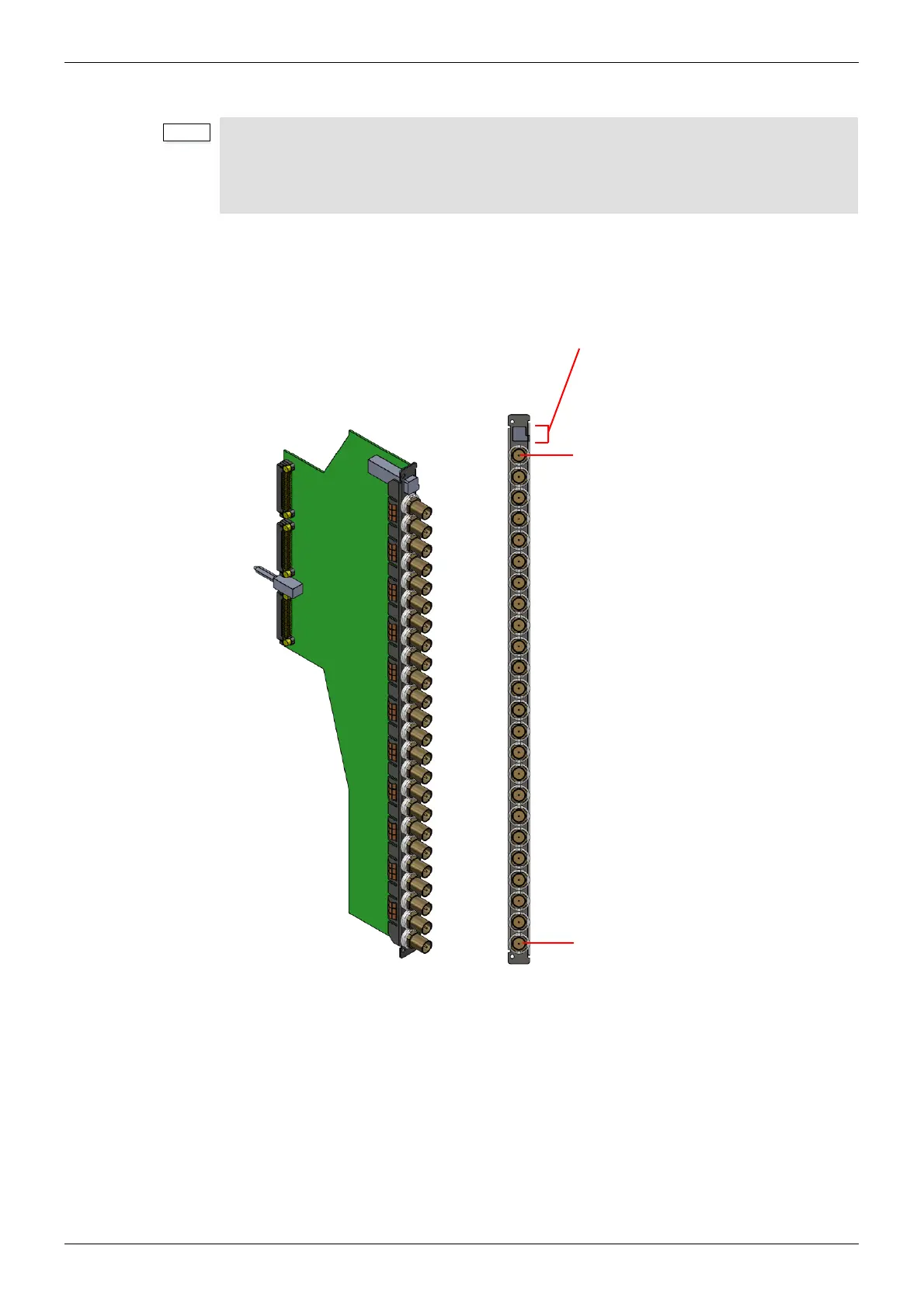

Figure 79 1349/1289 Input BNC Rear Panel (Sirius 840/850 only)
Sirius 850 (expanded two frame
system) 5919/5915 only:
Audio Expansion to a second
Sirius 850 frame via a DS-Link
cable, see section 12.8
Video Input 1
Video Input 24
