Sam Sirius 830 - Sirius 840 Rear Panel Locations

Sirius 800 Series User Manual Sirius 840/850 Module Locations 8.3
Iss 5 Rev 7 Page 97 © 2017 SAM
8.3.2 Sirius 840 Rear Panel Locations
Frames that are not fully populated with input or output rear panels have blanking plates fitted
in their place.
• see section 8.1 for details on which rear panels that can be used with which front
module.
• see section 8.3.7 for BNC and Fiber rear panel channel numbers and layout.
Cables connected to the router must be fitted with adequate vertical and horizontal strain
relief to avoid twisting of the rear panels causing damage to the router connectors and loss
of electrical/signal connection to the router.

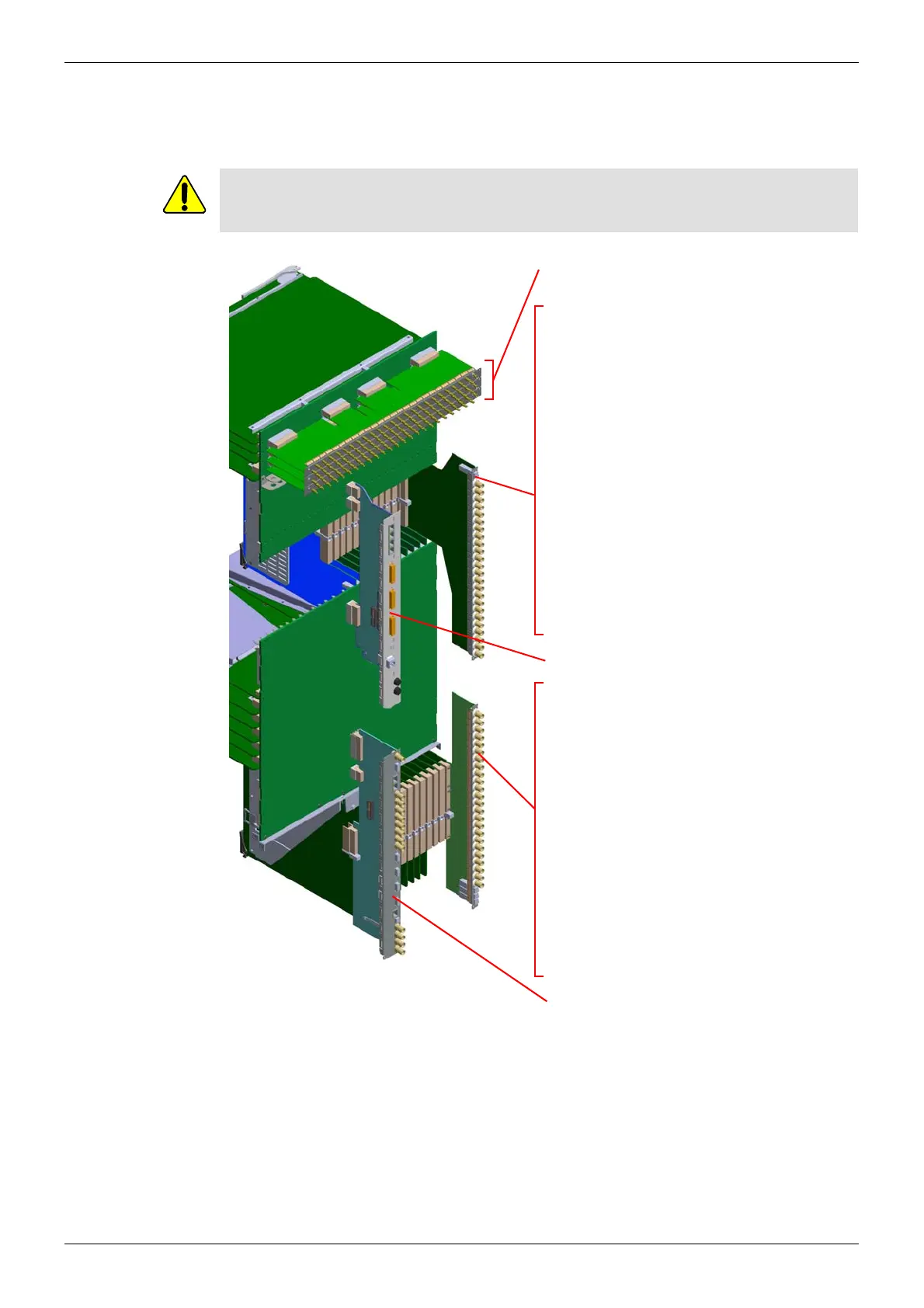

Figure 59 Sirius 840 Rear Panel Locations
1369 External Multiviewer
HD BNC rear panel up to 3
1285 Input BNC rear x 24
or
1286 Input Fiber rear x 24
or
1349/1289 Input BNC rear x 24
or
1360 Input HD BNC + output DS-Link rear x 24
or
1305 Input Fiber rear x 24
or
1361 Input Fiber + output DS-Link rear x 24
or
1362 Input DS-Link + output DS-Link rear x 24
or
1352 Input Balanced AES rear x 24
or
1355 Input Unbalanced AES rear x 24
or
1297 Input Balanced AES rear x 24
1294 Output BNC rear x 24
or
1363 Output HD BNC rear x 24
or
1302 Output Fiber rear x 24
or
1364 Output DS-Link rear x 24
or
1295 Output BNC rear x 24
or
1296 Output Fiber rear x 24
or
1353 Output Balanced AES rear x 24
or
1356 Output Unbalanced AES rear x 24
or
1298 Output Balanced AES rear 24
Alarm rear panel
Control rear panel
