9 Input Rear Panels and Input Modules
9.1 Sirius 830: 1234 & 1235 Video BNC Input Rear Panel
The 1234/1235 video BNC input rear panels have 24 BNC inputs.
The 1234/1235 rear panels are used in the Sirius 830 with either the 5919/5915 input module
(24 channel video with de-embedder, re-clocking and AHP) or the 5917/5916 input modules
(24 channel video with re-clocking).
All the BNC connectors on the 1234/1235 rear panels have SAM's unique Catsii feature that
illuminates each connector. See section 6 for details of the Catsii functionality.
Note:
• The 1235 rear panel was supplied with earlier Sirius 830 router systems and is
shown here for users that already have them fitted.
• On newer systems the 1234 rear panel can be used instead of the 1235 and is
compatible with the same video input modules so is a direct replacement.

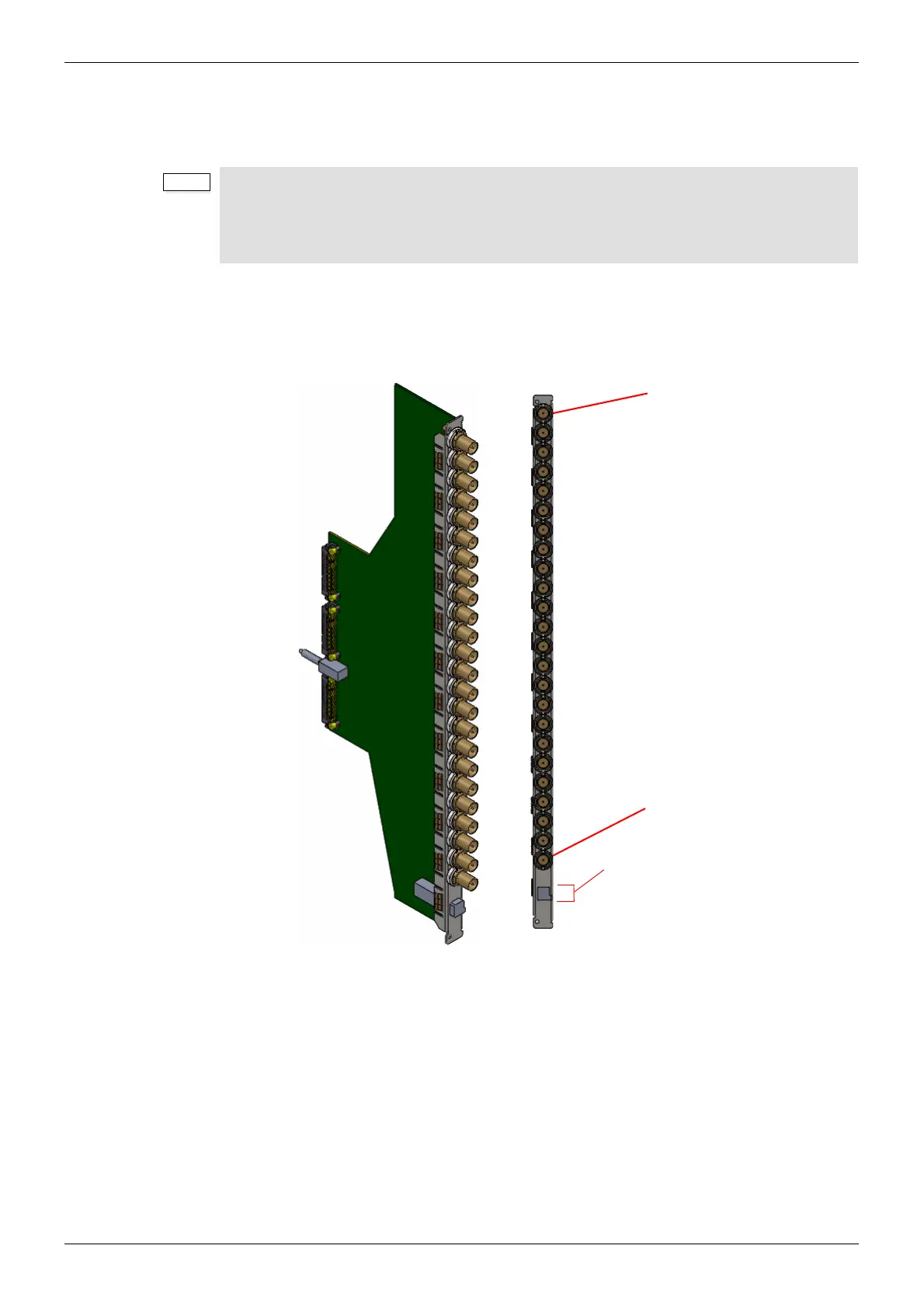

Figure 71 1234/1235 Input BNC Rear Panel (Sirius 830 only)
Not Used
Video Input 1
Video Input 24
