13.8.2 5933 Sirius 840/850 Output Monitoring Module
Note:
The 5933 does not have any way of determining signal format, so there are only a limited
number of options the Catsii LED's on the control rear panel BNC monitor outputs can
display, see Table 61
Signal Monitor Output Catsii Color Default
Monitor port not enabled Off Off
No signal Current configured setting for “No valid signal” Red
SD or DVB-ASI Current configured setting for “Valid SD signal” Yellow
Any HD or 3G signal Current configured setting for “Valid 1080i signal” Green
AES audio signal
(via 4915/4929/4925 modules)
Current configured setting for “No valid signal”
Red
Table 61 Control Panel Catsii Signal Status Colors (Sirius 840/850)

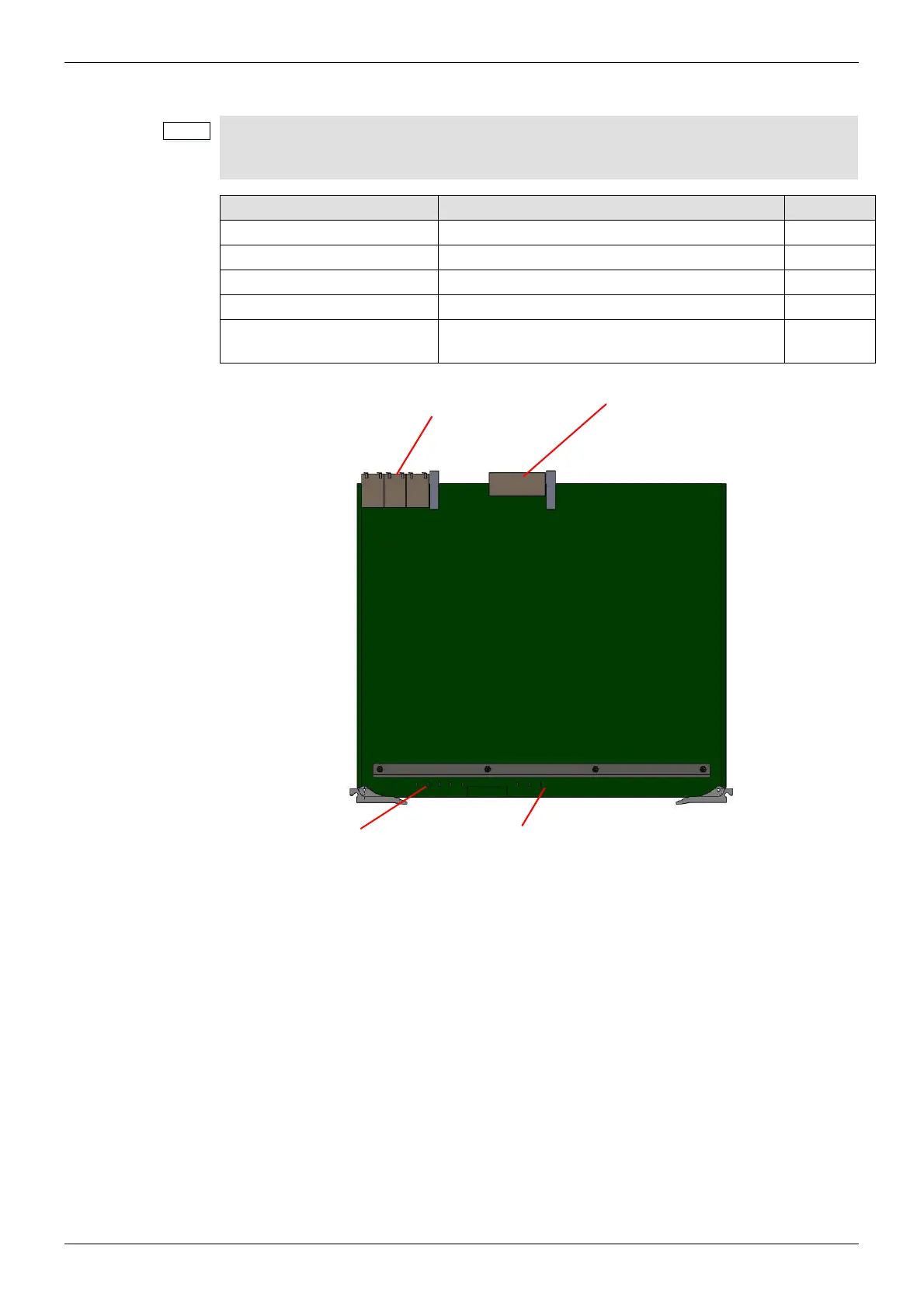

Figure 174 5933 Sirius 840/850 Output Monitoring Module
LEDs
Connectors to
the Motherboard
Monitor LEDs
Connector to
Control Rear
Panel
